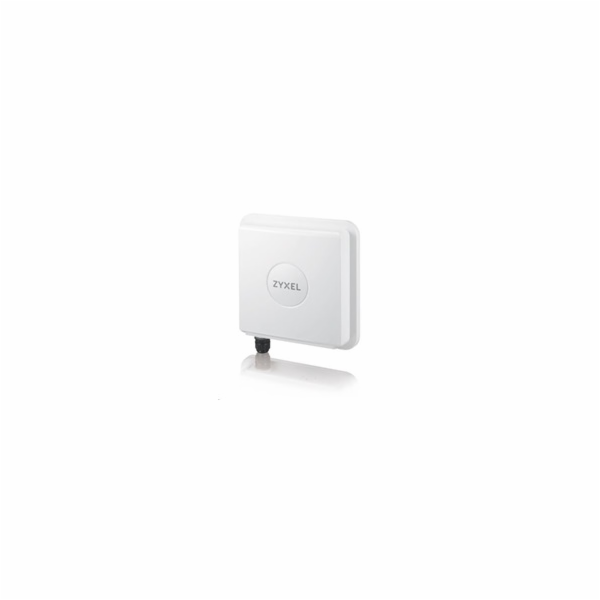

Zyxel LTE7480-M804, mobilní WiFi router
Zyxel LTE7480-M804, mobilní WiFi router
4495 Kč
3715 Kč bez DPH
Dostupnost: Skladem-dodání 2-4 dní
Part no.: LTE7480-M804-EUZNV1F
Kód produktu: 80967015
Výrobce: ZyXEL
Váha: 3,315 kg
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
The Zyxel LTE7480-M804 4G LTE-A Outdoor Router is a great solution for suburban areas, public locations, homes and offices. Enjoy lightning-fast connections effortlessly with the LTE7480-M804.
Fixed Wireless Access (FWA) is an alternative means to provide Internet connectivity that utilizes wireless network technology rather than fixed lines. With a fixed wireless access offering, network operators can supply a vast amount of new customers with broadband Internet connectivity. By delivering broadband over LTE mobile networks, operators can rapidly increase revenue from the untapped markets.
The Zyxel LTE7480-M804 4G LTE-A Outdoor Router supports a routing mode with both bridge and router functions, high-gain antenna for better signal performance and robust IP67 outdoor hardware designed for harsh environments – all the necessary features that benefit the critical “second WAN” design. No matter you have a router or not, the LTE7480-M804 can be easily deployed and integrated into your existing environment.
You can set 4G LTE as your main connection or use it as a backup in case performance of the main connection drops. The Zyxel LTE7480-M804 is good for any venue like suburban areas, public locations, homes and offices. Enjoy 4G LTE-Advanced technology effortlessly with the LTE7480-M804.
Download speeds of up to 600 Mbps, UE Cat. 12
IP67 hardened enclosure with industrial grade components
Remote management
Built-in 4x4 MIMO, high-gain antenna of up to 8 dBi per element
Embedded bridge/router mode
LTE Ally app for iOS & Android
Standard 802.3af/at PoE
Remote throughput testing
Lightning-fast Internet connectivity
The Zyxel LTE7480-M804 4G LTE-A Outdoor Router employs 3GPP UE downlink Category 12 – the best-practice LTE technology with downlink data rates of up to 600 Mbps through 4 Spatial Streams on two component carriers.
Easy installation
Easy installation is realized with flexible wall or pole mounting kit, indoor stand for the window side (optional), integrated IEEE 802.3af/at PoE support, dedicated WiFi AP with mobile apps content graphics for Donor eNB alignment.
Built-In 4x4 MIMO high-gain antenna
The Zyxel LTE7480-M804 4G LTE-A Outdoor Router provides DL 4x4 MIMO high-gain antennas of up to 8 dBi per element for stronger and better signal from long-range transmission reach up to of 20 km*. The outdoor design enables it to work under near non-line-of-sight conditions to increase coverage and capacity as well as to eliminate edge corners having difficulty accessing good signals.
Environmentally-hardened
Stronger waterproof protection guarantees high-quality connections and a longer device life despite weather and natural adversaries. It also elevates customer satisfaction thanks to the easy installation procedure since it’s not necessary to find a spot with lower humidity.
Remote management, TR-069, HTTP/Web GUI and FTP
Through the LTE radio interface, the Zyxel LTE7480-M804 supports TR-069, remote GUI and FTP to be fully configurable and software upgradeable through events triggered by the operators. Thanks to remote throughput testing, the trouble shooting can be performed locally or remotely with better efficiency.
Non-stop connectivity with LTE 2nd WAN for fail-over
Multi-WAN fail-over relieves the risk of network outage due to the dependence on single WAN connection. Even better, the wireless LTE allows you to take advantage of the 2nd WAN without a cabling plan. As long as the gateway supports “multi-WAN fail-over”, you can just connect Zyxel LTE7480-M804 to the existing gateway and set LTE as the fail-over WAN.
System Specifications
IP Networking
Support IPv4/IPv6 dual stack (NDP IPv6)
DHCP server
ICMP supported
Virtual Private Network (VPN) pass through
Roaming management
Support NAT/NAPT
Support NAT DMZ
Support port forwarding/triggering
Support ALG
Routing
Support router mode
Support bridge (IP pass through) mode
Support dynamic DNS for first APN
Support remote management under bridge mode
IP Firewall
Firewall can be enabled or disabled via GUI
DoS attack prevention
Support SPI
Application-level firewall
Filters LAN MAC address
Filters LAN IP address
Filters URLs
Management
Support local/remote device management and firmware upgrade via TR-069, HTTP/Web GUI and FTP
APN management
Account management
PIN/PUK management
Network selection
Network preference
Operating frequency band selection
CLI/SSH (local and remote SSH access)
Support UPNP IGD
Support SSH with key access certification management
Support bandwidth/quota management
Support mobile apps (iOS and Android) for easy installation and local management only
Support remote throughput testing by TR143
WiFi Protected Setup (WPS)
Hidden SSID
Hardware Specifications
LTE Interface
Standard compliant: 3GPP UE Category 12
Support LTE bands : 1/3/5/7/8/20/28/32/38/40/41
Support DL TM1/2/3/4/7/8/9
LTE Antennas: 4 embedded directional antennas of up to 8 dBi/element (4x4 MIMO)
Support DL 2CC, 4x4 MIMO, 4 spatial streams
Support DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
Support UL modulation QPSK, 16-QAM and 64-QAM
Supports DL speeds of up to 600 Mbps
Supports UL speeds of up to 150 Mbps
WiFi Interface
Wireless standard: 802.11 b/g/n, 2.4 GHz, 300 Mbps.
Wireless omni antennas: WiFi 2.4 GHz: 2x2 internal antennas up to 3 dBi
Hardware Interface
One GbE RJ-45 PoE LAN port
One LED indicator for:
Power status
Internet status
LTE signal strength
WiFi status
LAN status
One WiFi On/Off button
One 3FF mini SIM card socket
One reset to default button
Power Specifications
Standard 802.3af/at PoE
Power Consumption
16 watt (peak)
Physical Specifications
Dimension (WxDxH): 254 x 255 x 58 mm (9.99” x 10.03” x 2.28”)
Weight: 1100 g (2.43 lb.)
Environmental Specifications
Ingress Protection Rating
IP67 harden for outdoor environments
Lightning Protection
K.21 enhance mode, 6 KV
Operating Environment
Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% (non-condensing)
Storage Environment
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95% (non-condensing)
Certification
CE
WEEE
2011/65/EC Restriction of Hazardous Substances directive (RoHS)
Hazardous Substance Free (HSF)
European parliament and council directive 94/62/EC of 20 December 1994 on packaging and packaging waste
Package Contents
Standard 802.3af/at POE
1.8 M Ethernet cable yellow 8P8C
Power cord
1 M grounding kit
PG19 thread (cable grand)
Quick start guide
Warranty card
DoC and safety warning
Wall/pole mounting kit
Stand (optional)
Popis produktu
