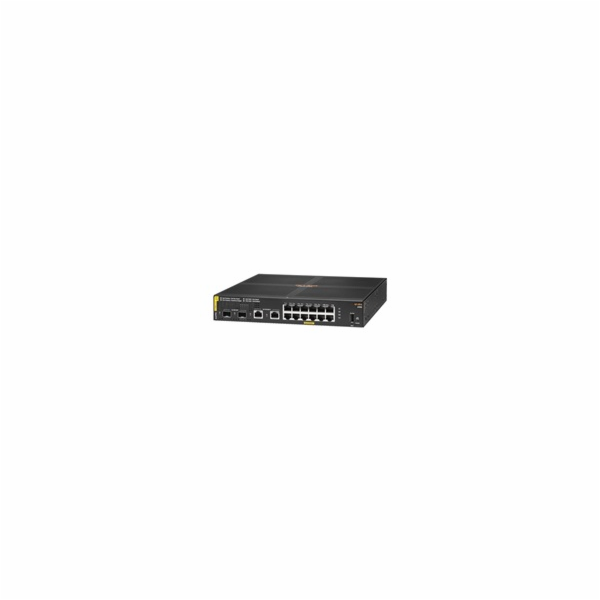

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB
27164 Kč
22450 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: JL679A
Kód produktu: 97777563
Výrobce: Hewlett Packard Enterprise
Váha: 3,78 kg
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Description
12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies
Fixed power supply (165W) Up to 139W of Class 4 PoE Power
Fans
Fanless
Physical characteristics
Dimensions
(H) 4.39 cm (W) 25.4 cm (D) 25.5 cm (1.73" x 10.0" x 10.04")
Configuration Weight
2.78 kg (6.13 lbs)
Additional Specifications
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3 16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity
68 Gbps
Model Throughput Capacity
45.1 Mpps
Average Latency (LIFO-64-bytes packets)
1 Gbps: 2.3 µSec , 10 Gbps: 2.6 µSec
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8,192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256
Environment
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet (4.6 km) Max
Acoustic
Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow
-
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Electrical Characteristics
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
1.8 A / 0.9 A
Power Consumption (230 VAC)
Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
Safety
UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-
1:2014
Emissions
VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 /
CISPR-32, Class A
Lasers
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 /
EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Popis produktu
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABBAruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Description
12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies
Fixed power supply (165W) Up to 139W of Class 4 PoE Power
Fans
Fanless
Physical characteristics
Dimensions
(H) 4.39 cm (W) 25.4 cm (D) 25.5 cm (1.73" x 10.0" x 10.04")
Configuration Weight
2.78 kg (6.13 lbs)
Additional Specifications
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3 16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity
68 Gbps
Model Throughput Capacity
45.1 Mpps
Average Latency (LIFO-64-bytes packets)
1 Gbps: 2.3 µSec , 10 Gbps: 2.6 µSec
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8,192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256
Environment
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet (4.6 km) Max
Acoustic
Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow
-
Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Electrical Characteristics
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
1.8 A / 0.9 A
Power Consumption (230 VAC)
Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
Safety
UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-
1:2014
Emissions
VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 /
CISPR-32, Class A
Lasers
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 /
EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
