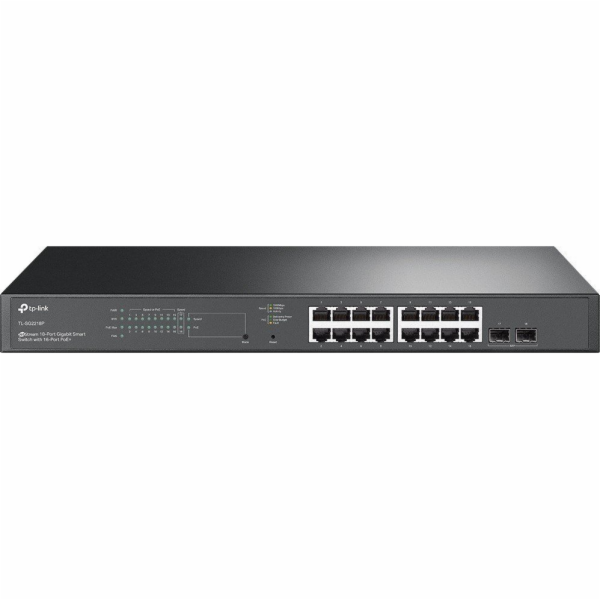

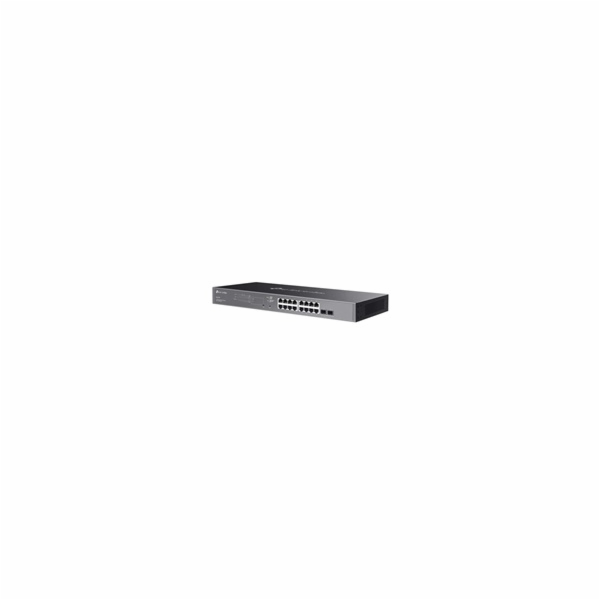

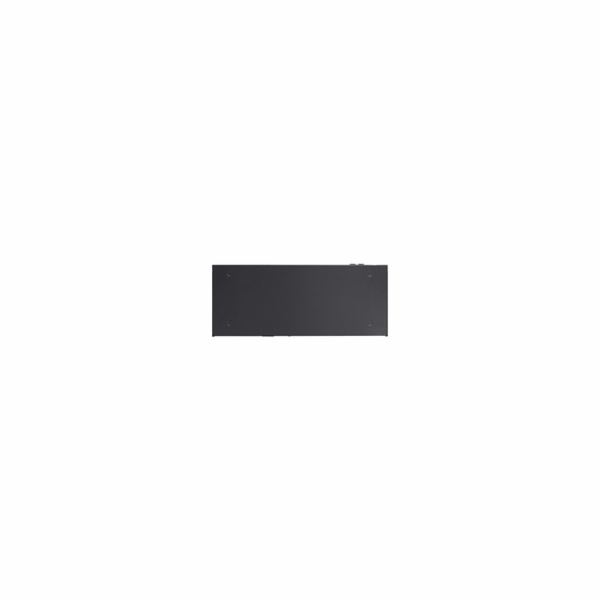

Switch TP-Link SG2218P Smart, 16x GLan s PoE+, 2x SFP, 150W, Omada SDN
Switch TP-Link SG2218P Smart, 16x GLan s PoE+, 2x SFP, 150W, Omada SDN
6688 Kč
5528 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: TL-SG2218P
Kód produktu: 105068645
Výrobce: TP-Link
Váha: 2,96 kg
Záruka: 60 měsíců
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
18portový gigabitový smart switch OMADA s 16 porty PoE+
150 W PoE Budget: 16× 802.3at/af kompatibilních PoE+ portů s celkovým napájením 150 W.
Plně gigabitové porty: 16× gigabitové porty PoE+ a 2× gigabitové SFP sloty poskytují vysokorychlostní připojení.
Integrováno do Omada SDN: Zero-Touch Provisioning (ZTP), centralizovaná správa cloudu a inteligentní monitorování.
Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
Static routing: Pomáhá směrovat interní provoz pro efektivnější využití síťových zdrojů.
Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication a další.
Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.
IPv6: Podpora IPv6 s duálním zásobníkem IPv4/IPv6, snooping MLD, zjišťování sousedů IPv6.
Learn more about TP-Link PoE technology >
Learn more about Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/us/business-networking/omada-sdn-switch/sg2218p/
Technické specifikace
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
• 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Gigabit SFP Slots
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
Fan Quantity
1
Power Supply
100-240V AC, 50/60Hz
PoE Ports (RJ45)
• Standard: 802.3at/af compliant • PoE+ Ports: 16 Ports • PoE Power Budget: 150 W*
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting
Rack Mountable
Max Power Consumption
• 181.4 W (110 V/60 Hz) (with 150 W PD connected) • 178.3 W (220 V/50 Hz) (with 150 W PD connected)
Max Heat Dissipation
• 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected) • 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.78 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
• 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
VLAN
• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
Access Control List
• Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
Security
• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6
• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
Advanced Features
• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule
MIBs
• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App
Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller
Centralized Management
• Omada Cloud-Based Controller • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
Cloud Access
Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG2218P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
System Requirements
Microsoft Windows XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
• Operating Temperature: 0–50 °C (32–122 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Popis produktu
TP-Link OMADA switch TL-SG2218P18portový gigabitový smart switch OMADA s 16 porty PoE+
150 W PoE Budget: 16× 802.3at/af kompatibilních PoE+ portů s celkovým napájením 150 W.
Plně gigabitové porty: 16× gigabitové porty PoE+ a 2× gigabitové SFP sloty poskytují vysokorychlostní připojení.
Integrováno do Omada SDN: Zero-Touch Provisioning (ZTP), centralizovaná správa cloudu a inteligentní monitorování.
Centralizovaná správa: Přístup ke cloudu a aplikace Omada pro maximální pohodlí a snadnou správu.
Static routing: Pomáhá směrovat interní provoz pro efektivnější využití síťových zdrojů.
Robustní bezpečnostní strategie: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication a další.
Optimalizujte hlasové a video aplikace: L2/L3/L4 QoS a IGMP snooping.
IPv6: Podpora IPv6 s duálním zásobníkem IPv4/IPv6, snooping MLD, zjišťování sousedů IPv6.
Learn more about TP-Link PoE technology >
Learn more about Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/us/business-networking/omada-sdn-switch/sg2218p/
Technické specifikace
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface
• 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Gigabit SFP Slots
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
Fan Quantity
1
Power Supply
100-240V AC, 50/60Hz
PoE Ports (RJ45)
• Standard: 802.3at/af compliant • PoE+ Ports: 16 Ports • PoE Power Budget: 150 W*
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting
Rack Mountable
Max Power Consumption
• 181.4 W (110 V/60 Hz) (with 150 W PD connected) • 178.3 W (220 V/50 Hz) (with 150 W PD connected)
Max Heat Dissipation
• 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected) • 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.78 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
• 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
VLAN
• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN
Access Control List
• Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
Security
• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6
• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
Advanced Features
• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule
MIBs
• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App
Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller
Centralized Management
• Omada Cloud-Based Controller • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
Cloud Access
Yes, through • Omada Cloud-Based Controller • OC300 • OC200 • Omada Software Controller
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
Management Features
• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG2218P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
System Requirements
Microsoft Windows XP, Vista™ or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
• Operating Temperature: 0–50 °C (32–122 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
