Popis produktu

Vstupní frekvence (Hz): 50 - 60
Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 16 / 8
Zkrat (SCP): ano
Proudové špičky (OCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
Přehřátí (OTP): ano
Přetížení (OPP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 140
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Životnost / MTBF (hod): 100000
Vedení kabelů: plně modulární
ATX-Mainboard: 1x 20+4pin
ATX12V: 1x 4+4pin
EPS12V: 1x 8pin
PCIe: 6x 6+2pin
PCIe 5.0 (12VHPWR): 1x 600W
Peripheral P4: 4x 4pin
S-ATA: 12x 5pin
FDD / Floppy: 1x
Výkon (Watt): 1350
Form faktor: ATX
certifikace: 80PLUS Gold
Účinnost při plné zátěži (%): 90
Barva: černá
Materiál: kov / plast
Šířka (mm): 150
Výška (mm): 86
Hloubka (mm): 160
Hmotnost (kg): 1,83

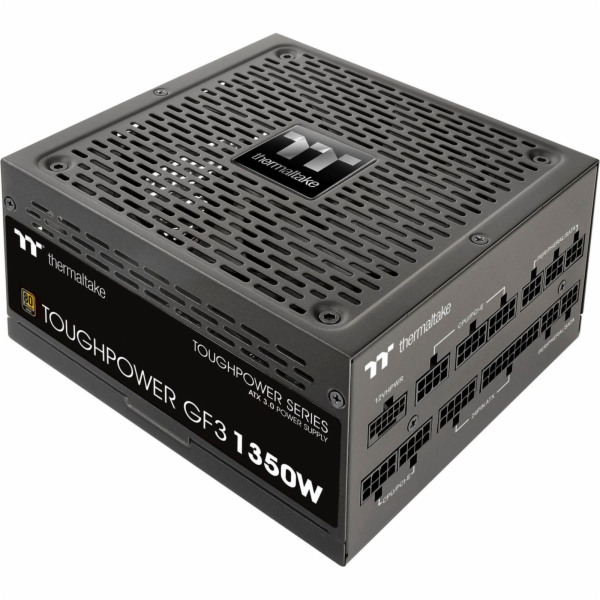

Thermaltake Toughpower GF3 1350W 80+ Gold for new Gen GPU

Designed with native PCIe 12+4pin connectors, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards. It can pipe up to 600W of power to PCIe 5.0 graphics cards.

Toughpower GF3 1350W Gold - TT Premium Edition
PCIe Gen 5.0 Ready! Designed with native PCIe 12+4pin modular connectors, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1350W comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.

Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.

Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections. (1 VGA Power Connector, 2 VGA Power Connector, 3 VGA Power Connector, 16 pin VGA Power Connector)

PCIe Gen 5.0 Ready
Toughpower GF3 1350W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

Ultra Quiet Smart Zero Fan
Designed with the Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

<30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and allows your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation <±3%
The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±3% for +12V and +5V, providing steady clean power through exceptional voltage stability.

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

100% High Quality Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan to guarantee superior cooling performance.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Specification:


P/N: PS-TPD-1350FNFAGE-4
Model: TPD-1350AH3FSG
Max. Output Capacity: 1350W
Colour: Black
Dimensions ( W x H x D ): 150mm x 86mm x 160mm
Weight: 1.83 kg
PFC (Power Factor Correction): Active PFC
Power Good Signal: 100-250 msec
Input Current: 16 - 8A
Input Frequency Range: 50-60Hz
Input Voltage: 100 - 240V~
Operating Temperature: 0°C to + 50°C
Operating Humidity: 20% to 90%, non-condensing
Storage Temperature: -40°C to + 70°C
Storage Humidity: 20% to 95%, non-condensing
Cooling System: 14cm hydraulic bearing fan
Efficiency: Meet 80 PLUS®Gold at 115Vac input.
MTBF: 100,000 hrs minimum
PCI-E 6+2pin: 6
PCI-E 12+4pin: 1

---
