Thermaltake CTE T500 Air Black
Thermaltake CTE T500 Air Black
4509 Kč
3727 Kč bez DPH
Dostupnost: Dodání 3-5 dní
Part no.: CA-1X8-00F1WN-00
Kód produktu: 107167878
Výrobce: Thermaltake
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Zadní strana: 1x 120 mm
Pravá strana: 1x 240 mm / 1x 120 mm
Horní strana: 2x 120/140 mm
Přední strana: 3x 120 mm / 3x 140 mm
Zadní strana: 1x 120 mm
Pravá strana: 2x 120 mm
Typ pouzdra: Počítačová skříň Midi-Tower
Mechanika 2,5": 6x
Mechanika 3,5": 2x
PCIe rozšiřující sloty: 7x
Osvětlení: ne
Boční díl: Okno
Síťový adaptér: volitelný
Max. výška ventilátoru CPU (mm): 185
Max. délka grafické karty (mm): 425 / 395
Nainstalované ventilátory: 4x 140 mm
ATX: ano
Micro-ATX: ano
ATX-extended (E-ATX): ano
Mini-ITX: ano
USB-A: 2x USB-A 3.0
USB-C: 1x USB-C 3.2 Gen 2 (10 GBit/s)
Připojení sluchátek: 1x
Připojení mikrofonu: 1x
Barva: černá / transparentní
Materiál: Kov / Sklo / Plast
Šířka (cm): 24,5
Výška (cm): 52,5
Hloubka (cm): 50,77
Hmotnost (kg): 10,5

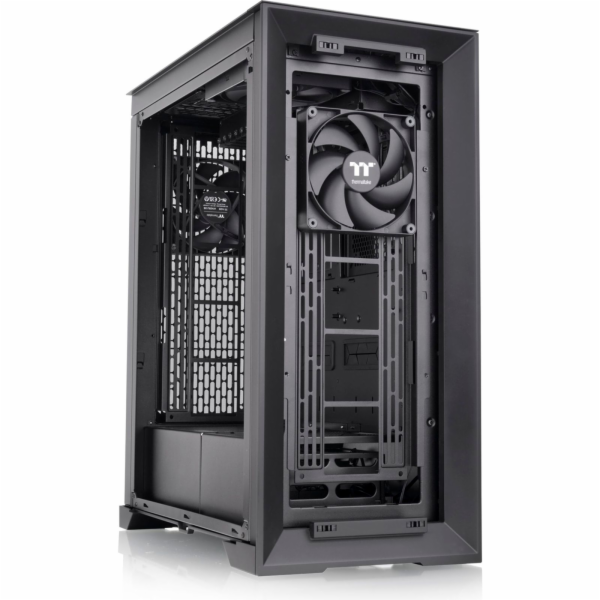

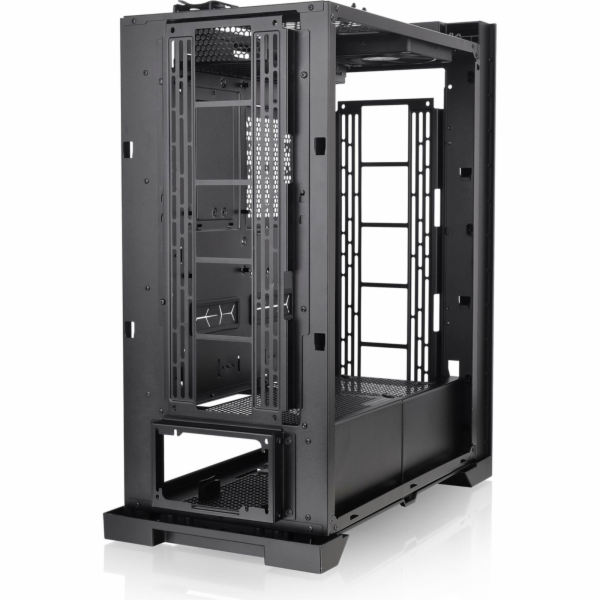

Thermaltake CTE T500 Air, Full-Tower Case, black
The CTE T500 Air Snow is a specially designed E-ATX full-tower case from the CTE form factor series and was designed to provide a high level of thermal performance to critical components. It comes with three pre-installed 140 mm CT140 fans.
CTE Form Factor
The CTE form factor, developed by Thermaltake, stands for Centralized Thermal Efficiency and focuses on providing high thermal performance for critical components. The design utilizes a 90-degree rotation of the motherboard to create more efficient airflow paths.
Since the CPU position was moved much closer to the front and the graphics card closer to the rear, an independent cold air intake for heat dissipation of CPU and graphics card is enabled. This overall approach allowed CTE to achieve better and more efficient airflow by placing the main components and cooling system and optimizing heat dissipation from the system.
Design and present your desired system
The versatile interior of the CTE T500 Air was specially designed for the requirements of all-in-one and custom liquid cooling systems and features a 4 mm thick tempered glass panel on the left side that allows the user to view and admire all components in their full glory.
Space for cooling components
The CTE T500 full-tower case features a huge fan and cooler installation capacity: Up to eleven 140 mm/120 mm fans and 360 mm AIO coolers at various positions (a 420 mm AIO cooler at the front). In addition, fan mounts at the front and rear as well as mounting points at the top, right side and lid allow easy installation of all desired cooling components.
Three pre-installed 140 mm fans
The CTE T500 Air full-tower case features three 140 mm PWM fans at the front, top and rear. The CT140 fans are particularly powerful case fans.
Expansion options at the highest level
The full-tower (CA-1X8-00F6WN-01) is excellently expandable, allowing you to accommodate as many components in your dream case as you want. It supports up to an E-ATX motherboard (12 x 13 inches), a CPU cooler with a maximum height of 195 mm, a GPU cooler with a length of up to 385 mm, a power supply with a length of up to 180 mm and up to six 2.5-inch SSDs or four 3.5-inch hard drives. The case optimized for excellent cooling performance offers space for up to eleven 140 mm/120 mm fans at the front, rear, bottom, top and right as well as AIO coolers with up to 360 mm at the front and rear (a 420 mm AIO).
Specifications:
Design: White (CA-1X8-00F6WN-01)
Dimensions (H x W x D): 615 x 275 x 516 mm
Weight: approx. 15.3 kg
Installed fans: 3x 140 mm, (1500 rpm, 30.5 dBA)
Supported hard drives: 4x 3.5", 6x 2.5"
PCI slots: 7
Motherboard: Mini ITX (6.7" x 6.7"), Micro ATX (9.6" x 9.6"), ATX (12" x 9.6"), E-ATX (12" x 13")
I/O connectors: 1x USB-C 3.2 Gen2, 2x USB-A 3.0, 1x HD-Audio
Power supply (optional): Standard-PS2, max. length 180 mm
CPU cooler up to: Max. height 195 mm
Graphics card up to: Max. length 385 mm
Possible fans upgradeable:
Front: 3x 120 mm, 2x 120 mm, 1x 120 mm, 3x 140 mm, 2x 140 mm, 1x 140 mm
Top: 2x 120 mm, 1x 120 mm, 2x 140 mm, 1x 140 mm
Right: 1x 120 mm, 1x 140 mm : 3x 120 mm, 2x 120 mm, 1x 120 mm 3x 140 mm, 2x 140 mm, 1x 140 mm
Bottom side: 1x 120 mm, 1x 140 mm
Power supply unit cover: 1x 120 mm, 1x 140 mm
Possible radiators can be retrofitted:
Front: 1x 360 mm, 1x 240 mm, 1x 120 mm, 1x 420 mm (AIO only), 1x 280 mm, 1x 140 mm. Top: 1x 120 mm (AIO only)
Rear: 1x 360 mm, 1x 240 mm, 1x 120 mm, 1x 280 mm, 1x 140 mm
Colour: black
Popis produktu
Přední strana: 1x 120 mm / 1x 140 mm / 1x 240 mm / 1x 280 mm / 1x 360 mm / 1x 420 mmZadní strana: 1x 120 mm
Pravá strana: 1x 240 mm / 1x 120 mm
Horní strana: 2x 120/140 mm
Přední strana: 3x 120 mm / 3x 140 mm
Zadní strana: 1x 120 mm
Pravá strana: 2x 120 mm
Typ pouzdra: Počítačová skříň Midi-Tower
Mechanika 2,5": 6x
Mechanika 3,5": 2x
PCIe rozšiřující sloty: 7x
Osvětlení: ne
Boční díl: Okno
Síťový adaptér: volitelný
Max. výška ventilátoru CPU (mm): 185
Max. délka grafické karty (mm): 425 / 395
Nainstalované ventilátory: 4x 140 mm
ATX: ano
Micro-ATX: ano
ATX-extended (E-ATX): ano
Mini-ITX: ano
USB-A: 2x USB-A 3.0
USB-C: 1x USB-C 3.2 Gen 2 (10 GBit/s)
Připojení sluchátek: 1x
Připojení mikrofonu: 1x
Barva: černá / transparentní
Materiál: Kov / Sklo / Plast
Šířka (cm): 24,5
Výška (cm): 52,5
Hloubka (cm): 50,77
Hmotnost (kg): 10,5
Thermaltake CTE T500 Air, Full-Tower Case, black
The CTE T500 Air Snow is a specially designed E-ATX full-tower case from the CTE form factor series and was designed to provide a high level of thermal performance to critical components. It comes with three pre-installed 140 mm CT140 fans.
CTE Form Factor
The CTE form factor, developed by Thermaltake, stands for Centralized Thermal Efficiency and focuses on providing high thermal performance for critical components. The design utilizes a 90-degree rotation of the motherboard to create more efficient airflow paths.
Since the CPU position was moved much closer to the front and the graphics card closer to the rear, an independent cold air intake for heat dissipation of CPU and graphics card is enabled. This overall approach allowed CTE to achieve better and more efficient airflow by placing the main components and cooling system and optimizing heat dissipation from the system.
Design and present your desired system
The versatile interior of the CTE T500 Air was specially designed for the requirements of all-in-one and custom liquid cooling systems and features a 4 mm thick tempered glass panel on the left side that allows the user to view and admire all components in their full glory.
Space for cooling components
The CTE T500 full-tower case features a huge fan and cooler installation capacity: Up to eleven 140 mm/120 mm fans and 360 mm AIO coolers at various positions (a 420 mm AIO cooler at the front). In addition, fan mounts at the front and rear as well as mounting points at the top, right side and lid allow easy installation of all desired cooling components.
Three pre-installed 140 mm fans
The CTE T500 Air full-tower case features three 140 mm PWM fans at the front, top and rear. The CT140 fans are particularly powerful case fans.
Expansion options at the highest level
The full-tower (CA-1X8-00F6WN-01) is excellently expandable, allowing you to accommodate as many components in your dream case as you want. It supports up to an E-ATX motherboard (12 x 13 inches), a CPU cooler with a maximum height of 195 mm, a GPU cooler with a length of up to 385 mm, a power supply with a length of up to 180 mm and up to six 2.5-inch SSDs or four 3.5-inch hard drives. The case optimized for excellent cooling performance offers space for up to eleven 140 mm/120 mm fans at the front, rear, bottom, top and right as well as AIO coolers with up to 360 mm at the front and rear (a 420 mm AIO).
Specifications:
Design: White (CA-1X8-00F6WN-01)
Dimensions (H x W x D): 615 x 275 x 516 mm
Weight: approx. 15.3 kg
Installed fans: 3x 140 mm, (1500 rpm, 30.5 dBA)
Supported hard drives: 4x 3.5", 6x 2.5"
PCI slots: 7
Motherboard: Mini ITX (6.7" x 6.7"), Micro ATX (9.6" x 9.6"), ATX (12" x 9.6"), E-ATX (12" x 13")
I/O connectors: 1x USB-C 3.2 Gen2, 2x USB-A 3.0, 1x HD-Audio
Power supply (optional): Standard-PS2, max. length 180 mm
CPU cooler up to: Max. height 195 mm
Graphics card up to: Max. length 385 mm
Possible fans upgradeable:
Front: 3x 120 mm, 2x 120 mm, 1x 120 mm, 3x 140 mm, 2x 140 mm, 1x 140 mm
Top: 2x 120 mm, 1x 120 mm, 2x 140 mm, 1x 140 mm
Right: 1x 120 mm, 1x 140 mm : 3x 120 mm, 2x 120 mm, 1x 120 mm 3x 140 mm, 2x 140 mm, 1x 140 mm
Bottom side: 1x 120 mm, 1x 140 mm
Power supply unit cover: 1x 120 mm, 1x 140 mm
Possible radiators can be retrofitted:
Front: 1x 360 mm, 1x 240 mm, 1x 120 mm, 1x 420 mm (AIO only), 1x 280 mm, 1x 140 mm. Top: 1x 120 mm (AIO only)
Rear: 1x 360 mm, 1x 240 mm, 1x 120 mm, 1x 280 mm, 1x 140 mm
Colour: black
