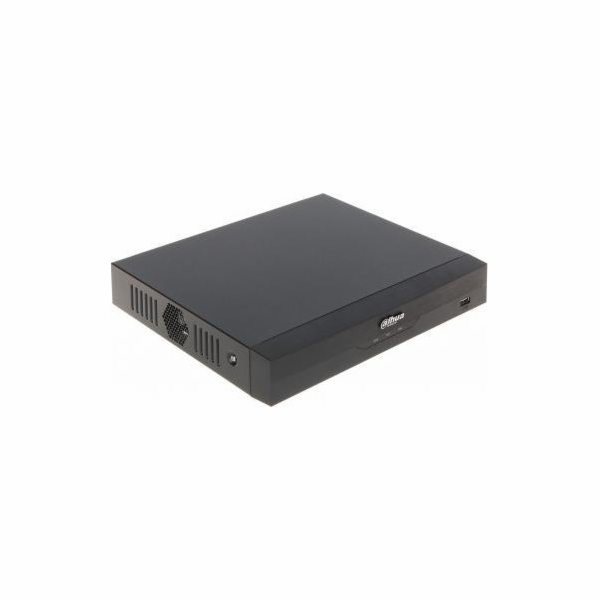

Dahua rekordér XVR5116HS-I3
Dahua rekordér XVR5116HS-I3
6154 Kč
5086 Kč bez DPH
Dostupnost: Dodání 3-5 dní
Part no.: XVR5116HS-I3
Kód produktu: 104242432
Výrobce: DAHUA TECHNOLOGY
Váha: 1,55 kg
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
XVR5116HS-I3
16 kanálový digitální videorekordér Penta-brid 5M-N/1080P 1U 1HDD WizSense
Komprese videa s duálním streamem H.265+/H.265
podporuje full-channel AI kódování
Podporuje HDCVI/AHD/TVI/CVBS/IP video vstupy
Max 24 kanály vstupy IP kamery, každý kanál až 6MP; Max. šířka příchozího pásma 128 Mbit/s
Až 4 kanály video stream (analogový kanál) Ochrana perimetru
Až 16 kanálů video stream (analogový kanál) SMD Plus
Až 2 kanály video stream (analogový kanál) rozpoznávání lidské tváře
IoT & POS funkcionality
System
Main Processor
Embedded processor
Operating System
Embedded Linux
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes
6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.
Face Detection Performance of AI by Recorder (Number of Channels)
2 channels, and a single channel can detect up to 12 faces.
Face Recognition
Face Database Capacity
Up to 10 face databases and 10,000 pictures.
Face Recognition Performance of AI by Recorder (Number of Channels)
2 channels
SMD Plus
SMD Plus by Recorder
Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input
1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
IP Camera Input
16+8 channels, each channel up to 6MP
Encoding Capacity
All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H/D1/CIF (1fps–25/30 fps)
Dual-stream
Supported (D1/CIF (1 fps–15 fps)).
Video Frame Rate
PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.
Video Bit Rate
32 Kbps–6144 Kbps Per Channel
Audio Sampling
8 KHz, 16 bit Per Channel
Audio Bit Rate
64 Kbps Per Channel
Bit Rate Type
Video stream and composite stream.
Video Output
1 HDMI ,1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access
Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung;
Compression Standard
Video Compression
AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression
G.711A/G.711u/PCM
Network
Network Protocol
HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone Access
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Browser
Chrome, IE9 or above, Firefox
Network Mode
Single-address mode
Recording Playback
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Recording Playback
1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
Backup Method
USB Device/Network
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
Motion detection, Video Loss, tampering
Anomaly Alarm
No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm
Face detection, face recognition, perimeter protection
Alarm Linkage
Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input
1, RCA (external)
16, BNC (coaxial)
Audio Output
1, RCA
Two-way Talk
Yes (share the same audio input with the first channel)
HDD Interface
1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
RS-485
1 Port, for PTZ Control
USB
2 USB Ports (1 USB 2.0 , 1 USB 3.0)
HDMI
1
VGA
1
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
DC12V, 2A
Power Consumption
Lower than 12 W
Net Weight
1.17 kg (2.58 lb)
Gross Weight
1.57 kg (3.46 lb)
Product Dimensions
Compact 1U, 260.0 mm × 237.4 mm × 47.6 mm (W × D × H) 10.24" × 9.35" × 1.87" (W × D × H)
Packaging Dimensions
333.0 mm × 89.0 mm × 315.0 mm (L × W × H)
13.11" × 3.50" × 12.40" (L× W × H)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–90%
Installation
Desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
Popis produktu
XVR5116HS-I3
16 kanálový digitální videorekordér Penta-brid 5M-N/1080P 1U 1HDD WizSense
Komprese videa s duálním streamem H.265+/H.265
podporuje full-channel AI kódování
Podporuje HDCVI/AHD/TVI/CVBS/IP video vstupy
Max 24 kanály vstupy IP kamery, každý kanál až 6MP; Max. šířka příchozího pásma 128 Mbit/s
Až 4 kanály video stream (analogový kanál) Ochrana perimetru
Až 16 kanálů video stream (analogový kanál) SMD Plus
Až 2 kanály video stream (analogový kanál) rozpoznávání lidské tváře
IoT & POS funkcionality
System
Main Processor
Embedded processor
Operating System
Embedded Linux
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes
6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.
Face Detection Performance of AI by Recorder (Number of Channels)
2 channels, and a single channel can detect up to 12 faces.
Face Recognition
Face Database Capacity
Up to 10 face databases and 10,000 pictures.
Face Recognition Performance of AI by Recorder (Number of Channels)
2 channels
SMD Plus
SMD Plus by Recorder
Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input
1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
IP Camera Input
16+8 channels, each channel up to 6MP
Encoding Capacity
All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H/D1/CIF (1fps–25/30 fps)
Dual-stream
Supported (D1/CIF (1 fps–15 fps)).
Video Frame Rate
PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.
Video Bit Rate
32 Kbps–6144 Kbps Per Channel
Audio Sampling
8 KHz, 16 bit Per Channel
Audio Bit Rate
64 Kbps Per Channel
Bit Rate Type
Video stream and composite stream.
Video Output
1 HDMI ,1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access
Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung;
Compression Standard
Video Compression
AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression
G.711A/G.711u/PCM
Network
Network Protocol
HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone Access
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Browser
Chrome, IE9 or above, Firefox
Network Mode
Single-address mode
Recording Playback
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Recording Playback
1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
Backup Method
USB Device/Network
Playback Mode
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
Motion detection, Video Loss, tampering
Anomaly Alarm
No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm
Face detection, face recognition, perimeter protection
Alarm Linkage
Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input
1, RCA (external)
16, BNC (coaxial)
Audio Output
1, RCA
Two-way Talk
Yes (share the same audio input with the first channel)
HDD Interface
1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
RS-485
1 Port, for PTZ Control
USB
2 USB Ports (1 USB 2.0 , 1 USB 3.0)
HDMI
1
VGA
1
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
DC12V, 2A
Power Consumption
Lower than 12 W
Net Weight
1.17 kg (2.58 lb)
Gross Weight
1.57 kg (3.46 lb)
Product Dimensions
Compact 1U, 260.0 mm × 237.4 mm × 47.6 mm (W × D × H) 10.24" × 9.35" × 1.87" (W × D × H)
Packaging Dimensions
333.0 mm × 89.0 mm × 315.0 mm (L × W × H)
13.11" × 3.50" × 12.40" (L× W × H)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–90%
Installation
Desktop
Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
