Popis produktu

Product SKUs

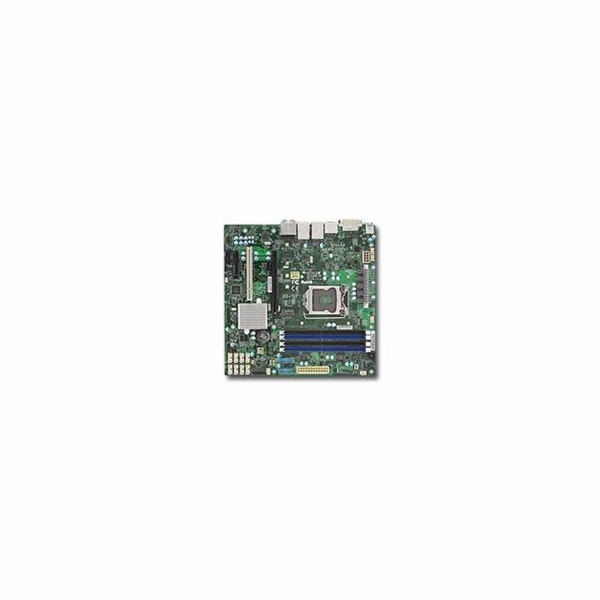

MBD-X11SAE-M X11SAE-M



Physical Stats

Form Factor Micro-ATX

Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)



Processor/Cache

CPU Intel® 6th/7th Generation Core? i3 series, Intel® 6th/7th Generation Core? i5 series, Intel® 6th/7th Generation Core? i7 series, Intel® Xeon® processor E3-1200 v6/v5.
Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3

Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series



System Memory

Memory Capacity Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset Intel® C236

SATA Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
+ 1 PCI-E M.2(PCI-E x4, 2242/2260/2280/22110)(No Raid Support)

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Audio ALC 888S HD Audio

Graphics ***DP support up to DP1.2, HDMI support up to HDMI1.4***



Input / Output

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 6 USB 2.0 ports (2 rear + 4 via headers)
6 USB 3.1 Gen1 ports(2 rears, 4 via headers)
2 USB 3.1 Gen2 ports , 2 Type A); 2 USB 3.1 (10 Gb/s) ports (2 Rear)

Video Output 1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port,
***DP support up to DP1.2, HDMI support up to HDMI1.4***

Serial Port / Header 1 COM Port (1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x41 - 5V PCI 32bit

M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2242/2260/2280
Key: M-Key



System BIOS

BIOS Type AMI UEFI

BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 3.0
UEFI 2.3.1
RTC (Real Time Clock) Wakeup



Management

Software AMT, SuperDoctor® 5, vPro, Watchdog

Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT

FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication

Temperature CPU thermal trip support, I2C temperature sensing logic, PECI, Thermal Monitor 2 (TM2) support

LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)



Parts List ?




Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11SAE-M 1 X11SAE-M Motherboard
SATA cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF
IO shield MCP-260-00063-1N 1 X11SAE-M I/O Shield



Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X11SAE-M 1 X11SAE-M Motherboard
Quick Reference Guide MNL-1819-QRG 1 X11SAE-M Quick Reference Guide
SATA cable CBL-0044L 4 57.5CM SATA FLAT S-S PBF
IO shield MCP-260-00063-1N 1 X11SAE-M I/O Shield




Chassis (Optimized for X11SAE-M)


Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower
SC731i-300B
SC732D4-500B
SC731i-403B
SCDS3A-261B
SC731D-300B
SC732I-500B
SC732i-865B
SC732I-R500B
SC732D2-903B
SC732D2-865B
SC732D2-500B
SC732D3-1200B
SC732D3-903B
SC732D4-865B
SC732D4-903B
SC732D4F-903B
SC732D4F-865B
SC732D4F-500B
SC733TQ-668B
SC733E-500B
SC733I-500B
SC733T-500B
SC733TQ-500B
2U Heatsink:SNK-P0046A4
SC745BAC-R1K28B2
SC743AC-1200B-SQ
SC743AC-668B
SC743TQ-865B
SC743TQ-865B-SQ
SC743TQ-903B
SC743TQ-1200B-SQ
SC743TQ-1200B
SC745BTQ-R1K28B
SC745BTQ-R1K28B-SQ
SC745BTQ-R1K28B-SQ
SC745TQ-800B
SC745TQ-920B
SC745TQ-R1200B
SC745TQ-R920B
SC745TQ-R800B
2U Heatsink:SNK-P0046A4

---
