Popis produktu

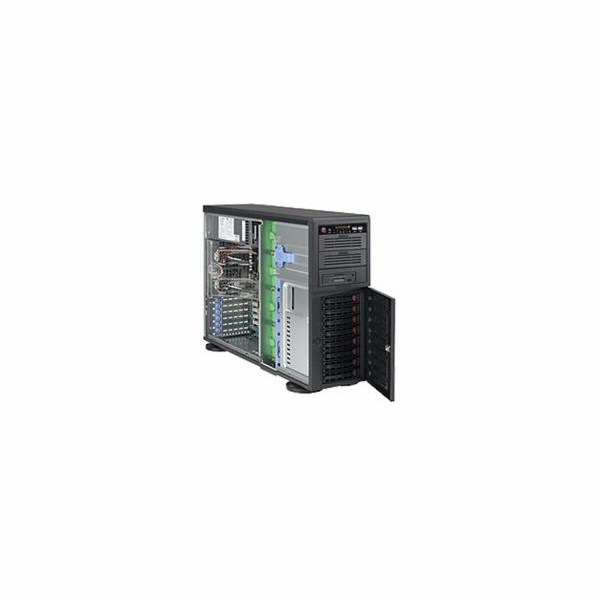

8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives
Whisper-Quiet (<28dB)
Front HDD Door Lock & Side Panel Intrusion Switch
Front I/O Ports: 2x USB 3.0
2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
4U / Full Tower Chassis Supports max. Motherboard, Sizes: E-ATX 12" x 13"/ATX/Micro ATX
903W 80-Plus Gold Certified High-Efficiency Power Supply
3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives








Specifications














Product SKUs





CSE-743TQ-903B-SQ


SuperChassis 743TQ-903B-SQ












Form Factor







4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX












Processor Support







Dual and Single Intel® and AMD processors












Dimensions





Height


17.8" (452 mm)




Width


7" (178 mm)




Depth


25.5" (647 mm)




Net Weight


53 lbs (24.04 kg)




Gross Weight


56 lbs (25.4 kg)




Packaging (W x H x L)


24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)




Available Color


Black












Expansion Slots







7 full-height & full-length expansion slot(s)












Drive Bays







8 x 3.5"/2.5" hot-swap SAS drive bay with SES3












Backplane







743 SAS BACKPLANE W/AMI MG9072












Peripheral Drives







3 x standard 5.25" drive bay
90 degree rotatable drive cage












Front Panel





Buttons


Power On/Off button
System Reset Button




LEDs


2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED




Ports


2x USB 3.0 Port(s)























Systems Cooling





Fans


2 x 2800 RPM fan(s)
1 x 2700 RPM fan(s)












System Monitoring







Chassis intrusion switch












Operating Environment (System)





Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non-Operating Relative Humidity Range


5% - 95% (non-condensing)












Power Supply


PS2/ATX 900W multiple outputs power supply, Gold level, 12cm fan


Power Efficiency


90%




Total Output Power and Input


900W with Input 100 - 240Vac




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


190 x 150 x 86 mm




Output Type


24pin ATX




-12V


Max: 0.5A / Min: 0A




+12V


Max: 25A / Min: 0.1A (100Vac - 240Vac)
Max: 25A / Min: 0.1A (100Vac - 240Vac)
Max: 25A / Min: 0.1A (100Vac - 120Vac)
Max: 25A / Min: 0.1A (100Vac - 240Vac)




+5V


Max: 25A / Min: 0A




+3.3V


Max: 25A / Min: 0A




+5Vsb


Max: 4A / Min: 0.02A




+12Vsb


Max: NAA




Certification


   Gold Certified












Regulatory (Power Supply)





Power Supply Safety / EMC


BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL













Components










Standard Parts List






Part Number
Qty
Description


HD Backplane
CSE-SAS-743TQ
1
743 SAS BACKPLANE W/AMI MG9072


Cable(S)
CBL-0044L
4
57.5CM SATA FLAT S-S PBF


Cable(S)
CBL-0084
1
16 PIN FRONT CTRL SPLIT CONVECTOR 6"


Cable(S)
CBL-0087
1
CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM


Cable(S)
CBL-0157L
1
8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE


Cable(S)
CBL-0160L
1
US POWER CORD 16AWG, PB FREE


Cable(S)
CBL-0216L
4
4 TO 4 PIN FAN POWER CABLE, 210MM


Cable(S)
CBL-0471L
1
USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)


Fan(s)
FAN-0103L4
1
92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan

---
