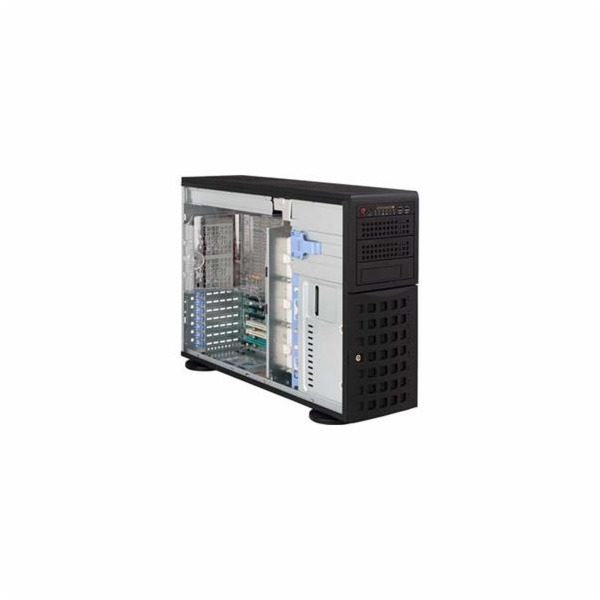

CSE-745BTQ-R920B SuperChassis 745BTQ-R920B



Form Factor

4U chassis - supports for maximum motherboard sizes: E-ATX 13.68" x 13"



Processor Support

Single and Dual Intel® and AMD processors



Dimensions

Height 17.8" (452 mm)

Width 7" (178 mm)

Depth 25.5" (647 mm)

Net Weight 62 lbs (28.12 kg)

Gross Weight 64 lbs (29.03 kg)

Packaging (W x H x L) 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)

Available Color Black



Expansion Slots

7 full-height & full-length expansion slot(s)



Drive Bays

8 x 3.5"/2.5" hot-swap SAS drive bay with SES3



Backplane

743 SAS BACKPLANE W/AMI MG9072



Peripheral Drives

1 x 3.5" internal fixed drive bay
2 x standard 5.25" drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED

Ports 2x USB 2.0 Port(s)







Systems Cooling

Fans 3 x 8cm high-performance PWM fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency 94%

Total Output Power and Input 920W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 336 x 76 x 40 mm

Output Type Backplanes (gold finger)

-12V Max: NAA

+12V Max: 75A / Min: 1A (100Vac - 240Vac)

+5Vsb Max: 4A / Min: 0A

+12Vsb Max: NAA

Power Distributor PDB-PT747-4648
O/P: 12/212
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Air Shroud MCP-310-49001-0N 1 SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
HD Backplane CSE-SAS-743TQ 1 743 SAS BACKPLANE W/AMI MG9072
Cable(S) CBL-0044L 4 57.5CM SATA FLAT S-S PBF
Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S) CBL-0157L 1 8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE
Cable(S) CBL-0160L 1 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0216L 3 4 TO 4 PIN FAN POWER CABLE, 210MM
Cable(S) CBL-0471L 1 USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
Fan(s) FAN-0074L4 3 80X38MM 4-PIN PWM (MIDDLE) FAN W/HUS FOR SC743
Fan(s) FAN-0082L4 2 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
Drive Tray(s) MCP-220-00193-0N 8
Power Distributor PDB-PT747-4648 1 POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
Part(s) MCP-290-74502-0B 1 Plastic feet (4 pcs set) for 4U tower chassis, black color
Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode




Optional Parts List

Part Number Qty Description
Mounting Rail CSE-PT26L-(B) - 4U Chassis Rail Kit (Includes Side Handles) (B = Black)
LCD MCP-220-00095-0B - 5.25" USB LCD Kit
Add-on Card Dummy MCP-240-00096-0N - GPU/Add-on Card Dummy Assembly (2 slots) - single pack
Cable CBL-0153L - 6pin GPU Power Adapter Cable from PDB 2x big 4pin, 16cm
Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
Rear Exhaust Fan MCP-320-00046-0N-KIT - Rear fan kit (8.2K RPM fan) for SC747B / 835X / 836BH
Rear Exhaust Fan MCP-320-00047-0N-KIT - Rear fan kit (5K RPM fan) for SC745B / 835X / 836BH
Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
HDD Tray Converter MCP-220-00080-0B - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray

---
