Key Features


Intel® Atom® Processor x6425E
Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
1 PCIe 3.0 X2 (in x8 slot)
1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/2280
1 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230
Single LAN with Intel® Ethernet Controller I210IT
ONLY i210 support PXE
3 LAN with 1GbE with Marvell® 88E1512
System on Chip
1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port, 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays


Optimized Servers

SYS-E302-12E















Product SKUs

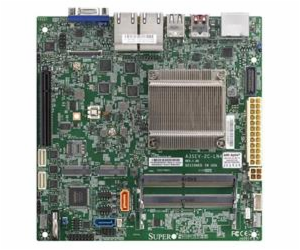

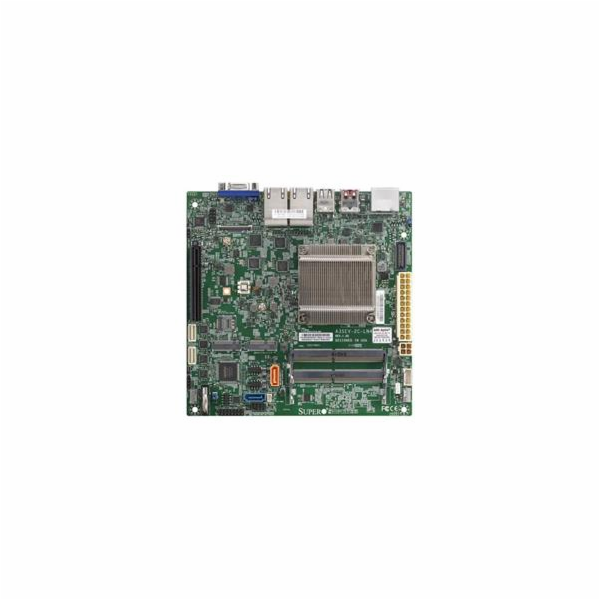

MBD-A3SEV-4C-LN4







Physical Stats


Form Factor


Mini-ITX




Dimension


6.7" x 6.7" (17.02cm x 17.02cm)









Processor


CPU


Intel® Atom® Processor x6425E
Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP




Core


Up to 4 cores, 4 threads









System Memory


Memory Capacity


2 DIMM slots
Up to 32GB Unbuffered non-ECC SODIMM, DDR4-3200MHz




Memory Type


3200 MT/s non-ECC DDR4 SODIMM Unbuffered 3200MHzMT/s 260pin up to 32GB




DIMM Sizes


8GB, 16GB




Memory Voltage


1.2V









On-Board Devices


Chipset


System on Chip




Audio


ALC 888S HD Audio




Graphics


1 Intel® HD Graphics port(s)




Network Controllers


Single LAN with Intel® Ethernet Controller I210IT, ONLY i210 support PXE
3 LAN with 1GbE with Marvell® 88E1512









Input / Output


SATA


2 SATA3 (6Gbps) port(s)




LAN


4 RJ45 Gigabit Ethernet LAN ports




USB


2 USB 3.1 Gen2 port(s) (2 rear type A)
6 USB 2.0 port(s) (4 via header; 2 rear)





Video Output


1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 eDP (Embedded DisplayPort) port(s)




Serial Port


4 COM Port(s) (4 header)




TPM


1 TPM Header & Chip both























Expansion Slots


PCIe


1 PCIe 3.0 X2 (in x8 slot)




M.2


M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 1 PCIe 3.0 x1/USB 2.0
Form Factor: 3042/2280, 2230
Key: B-Key, E-Key









System BIOS


BIOS Type


AMI UEFI




BIOS Features


ACPI 6.2 or later
UEFI 2.7
Plug and Play (PnP)
SMBIOS 3.3 or later
DMI 2.3
USB Keyboard support
RTC (Real Time Clock) Wakeup









Management


Software


SuperDoctor® 5, Watchdog




Power Configurations


ACPI Power Management, +12V DC Power Input









PC Health Monitoring


Voltage


VBAT, System temperature, System level control, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages




LED


Standby alert LED
CPU / System Overheat LED




Temperature


Monitoring for CPU and chassis environment
CPU thermal trip support




FAN


Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, Overheat LED indication




Other Features


WOL, System level control, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector









Operating Environment


Operating Temperature Range


-30°C - 70°C (-22°F - 158°F)




Non-Operating Temperature Range


-40°C - 85°C (-40°F - 185°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


10% - 95% (non-condensing)




































































































































Standard Parts (Bulk Package)



Part Number
Qty
Description


I/O Cables
CBL-0044L  •
1
57.5CM SATA FLAT S-S PBF


I/O Shield
MCP-260-00058-0N
1
Standard I/O Shield for A2SAV with EMI Gasket











Standard Parts (Retail Package)



Part Number
Qty
Description


I/O Cables
CBL-0044L  •
2
57.5CM SATA FLAT S-S PBF


I/O Shield
MCP-260-00058-0N
1
A3SEV standard 2U I/O Shield


QRG
MNL-2355-QRG
1
Motherboard Quick Reference Guide
