Key Features


Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
Intel® C252
Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots
1 PCI-E 4.0 x16
M.2 Interface:  1 PCI-E 3.0 x4
M.2 Form Factor:  2280
M.2 Key:  M-Key
Dual LAN with Intel® i210 Gigabit Ethernet Controller
Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA D-Sub Connector port
2 SuperDOM with built-in power
4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)








Specifications















Product SKUs

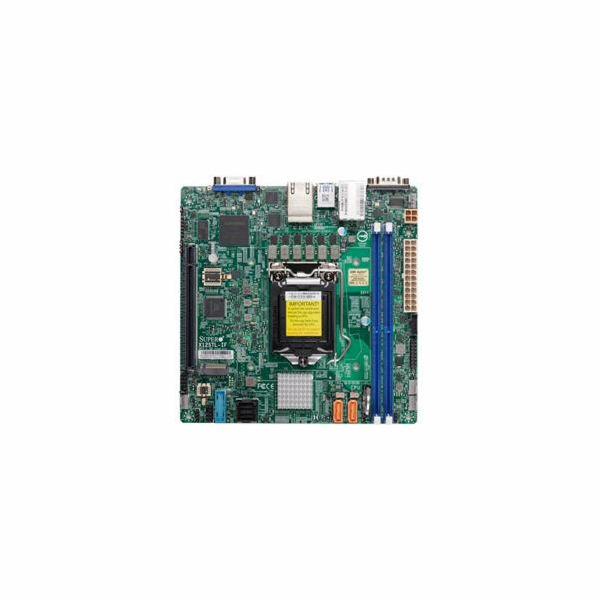

MBD-X12STL-IF


X12STL-IF















Physical Stats





Form Factor


Mini-ITX




Dimension


6.7" x 6.7" (17.02cm x 17.02cm)















Processor





CPU


10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP




Core


Up to 8 cores















System Memory





Memory Capacity


2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz




Memory Type


3200/2933/2666MHz SDRAM




DIMM Sizes


4GB, 8GB, 16GB, 32GB




Memory Voltage


1.2V




Error Detection


Corrects single-bit errors















On-Board Devices





Chipset


Intel® C252




SATA


Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10




IPMI


ASPEED AST2600 BMC




Graphics


ASPEED AST2600 BMC




Network Controllers


Dual LAN with Intel® i210 Gigabit Ethernet Controller















Input / Output





SATA


6 SATA3 (6Gbps) port(s)




LAN


2 RJ45 Gigabit Ethernet LAN ports




USB


4 USB 2.0 port(s) (2 rear; 2 via header)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)




Video Output


1 VGA D-Sub Connector port(s)




Serial Port


1 COM Port(s) (1 rear)




DOM


2 SATA  DOM  (Disk on Module) power connector support




TPM


1 TPM Header


























Expansion Slots





PCI-E


1 PCI-E 4.0 x16




M.2


M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key















System BIOS





BIOS Type


256MB UEFI




BIOS Features


ACPI 6.0
SMBIOS 3.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0















Management





Software


SuperDoctor® 5,  SUM ,  SPM ,  SSM ,  IPMI2.0 , Watchdog




System Management Software


IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support




Power Configurations


Power-on mode for AC power recovery, ACPI Power Management















PC Health Monitoring





Voltage


VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages




LED


UID/Remote UID
CPU / System Overheat LED




Temperature


Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI




FAN


4x 4-pin fan headers (up to 4 fans)
Thermal control tachometer fan connectors
Fan speed control
4 fans with tachometer monitoring
Overheat LED indication




Other Features


WOL
UID
M.2 NGFF connector
Dual Cooling Zones
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion detection
ACPI power management















Operating Environment





Operating Temperature Range


0°C - 50°C (32°F - 122°F)




Non-Operating Temperature Range


-20°C - 60°C (-4°F - 140°F)




Operating Relative Humidity Range


10% - 85% (non-condensing)

---
