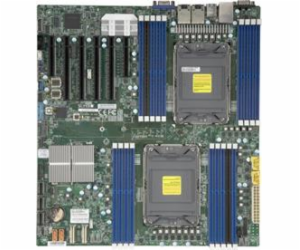

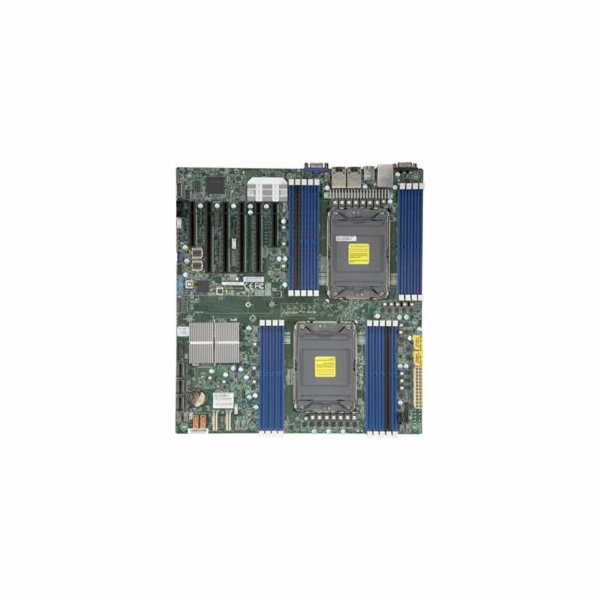

Popis produktu

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Intel® C621A
Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only.
2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16,2 PCI-E 4.0 NVMe x8 Internal Port(s)
M.2 Interface:  1 PCI-E 4.0 x4         M.2 Form Factor:  2280/22110     M.2 Key:  M-Key
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10GBase-T with Intel® X550
2 VGA (1 rear bezel, 1 front panel) ports


Specifications















Product SKUs





MBD-X12DPi-NT6


X12DPi-NT6















Physical Stats





Form Factor


E-ATX




Dimension


12" x 13" (30.48cm x 33.02cm)















Processor





CPU


3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s




Core


Up to 40 cores















System Memory





Memory Capacity


18 DIMM slots
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.




Memory Type


3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM




DIMM Sizes


LRDIMM: 256GB
RDIMM: 256GB




Memory Voltage


1.2V




Error Detection


Corrects single-bit errors
Detects double-bit errors (using ECC memory)















On-Board Devices





Chipset


Intel® C621A




SATA


Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10




IPMI


ASPEED AST2600 BMC




Network Controllers


Dual LAN with 10GBase-T with Intel® X550















Input / Output





SATA


14 SATA3 (6Gbps) port(s)




LAN


2 RJ45 10 Gigabit Ethernet LAN ports




USB


7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
2 USB 2.0 port(s) (2 via header)




Video Output


2 VGA (1 rear bezel, 1 front panel) port(s)




Serial Port


2 COM Port(s) (1 header; 1 rear)




TPM


1 TPM Header


























Expansion Slots





PCI-E


4 PCI-E 4.0 x16,
2 PCI-E 4.0 x8




M.2


M.2 Interface: 1 PCI-E 4.0 x4
Form Factor: 2280/22110
Key: M-Key















System BIOS





BIOS Type


AMI UEFI















Management





Software


SuperDoctor® 5,  SUM , KVM with dedicated LAN,  SPM , Intel® Node Manager,  SSM ,  IPMI2.0 , Watchdog




System Management Software


IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support















PC Health Monitoring





Voltage


VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status




LED


UID/Remote UID
Power LED
BMC/IPMI Heartbeat LED




FAN


8x 4-pin fan headers (up to 8 fans)
PWM fan speed control




Other Features


WOL
UID
RoHS
Node Manager Support
Dual Cooling Zones
CPU thermal trip support for processor protection
Control of power-on for recovery from AC power loss
Chassis intrusion header
ATX Power connector
ACPI power management
SDDC
RoT
NCSI header















Operating Environment





Operating Temperature Range


10°C - 35°C (50°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)
