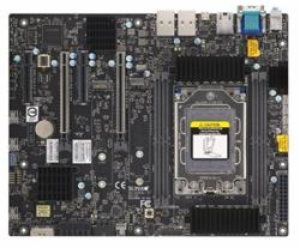

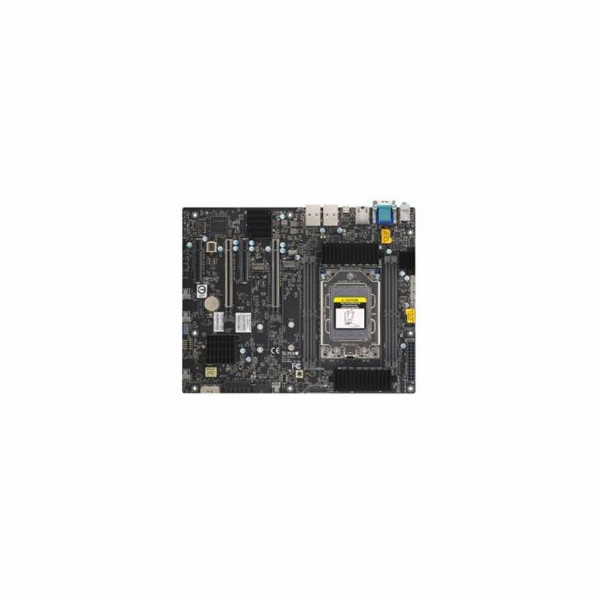

SUPERMICRO MB 1xTR5 (LGA-4844), 4x DDR5, 4x SATA, 2x M.2, PCIe 5.0 (2 x16, 1 x4), 1Gb,
SUPERMICRO MB 1xTR5 (LGA-4844), 4x DDR5, 4x SATA, 2x M.2, PCIe 5.0 (2 x16, 1 x4), 1Gb,
21821 Kč
18034 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: MBD-H13SRA-TF-B
Kód produktu: 111402749
Výrobce: SUPERMICRO
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Product SKUs
MBD-H13SRA-TF
Physical Stats
Form Factor
ATX
Dimension
12" x 9.6" (30.48cm x 24.384cm)
Processor
CPU
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, AMD Ryzen™ Threadripper™ 7000 Series
Single Socket LGA-4844 (Socket sTR5) supported, CPU TDP supports Up to 350W TDP
Core
Up to 96 cores, 192 threads
System Memory
Memory Capacity
4 DIMM slots
Up to 4TB ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz
Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
Memory Type
5200 MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes
RDIMM/3DS RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB, 512GB, 1024GB
Memory Voltage
1.1V
On-Board Devices
Chipset
TRX50
SATA
4 SATA3 ports; RAID 0,1,10
Audio
ALC 888S HD Audio 5.1 Channel
Network Controllers
Single LAN with ASPEED AST2600, Dedicated LAN for IPMI
Dual LAN with 10Gb Broadcom BCM57416
Input / Output
USB
2 USB 2 port(s) (2 via header)
1 USB 3.2 Gen2x2 port(s) (1 rear type C)
2 USB 3.2 Gen1x1 port(s) (2 via header)
5 USB 3.2 Gen2x1 port(s) (4 rear type A; 1 header type C)
Video Output
1 VGA port(s)
Serial Port
1 COM Port(s) (1 COM rear)
TPM
1 TPM Header
Expansion Slots
PCIe
2 PCIe 5.0 x8, Open rear,
2 PCIe 5.0 x16, metal armor protection, support 2 triple/dual/single-width GPU cards,
1 PCIe 4.0 x8, MCIO connector
M.2
M.2 Interface: 2 PCIe 4.0 x4, RAID 0, 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.5
SMBIOS 3.6 or later
UEFI 2.9
RTC (Real Time Clock) Wakeup
Management
Software
Redfish API , Supermicro Server Manager (SSM) , Supermicro Update Manager (SUM) , SuperDoctor® 5 , Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
PC Health Monitoring
Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, Vmem, GPU temperature, NvMe temperature, Vcore, SAS HDD temperature
FAN
7x 4-pin fan headers (up to 7 fans)
Fan speed control, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED, CPU/Suspend-state indicator LED, 2 4-pin fan headers for CPU liquid cooling pump
Other Features
RoHS
Chassis intrusion detection
Power supply monitoring
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
10% - 85%
Non Operating Relative Humidity Range
10% - 95%
