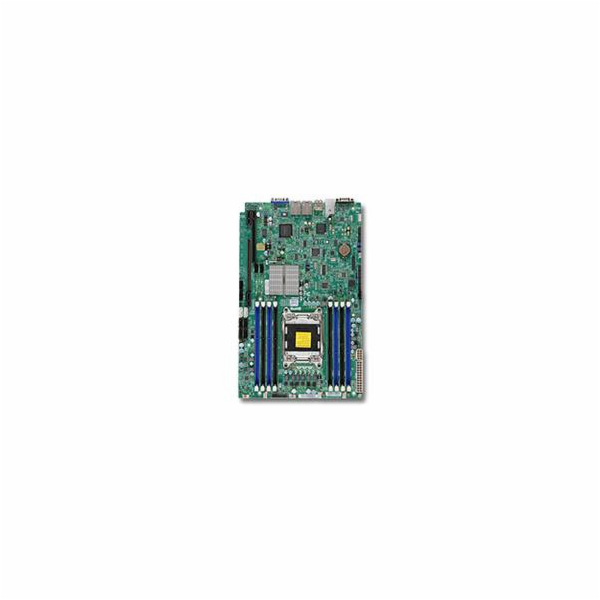

Supermicro MBD-X9SRW-F-O SUPERMICRO MB 1xLGA2011 iC602 8x DDR3 ECC R,2xSATA3, 4xSATA2 2,1 PCI-E 3.0 (x16,x8),2xLAN,IPMI, WIO
Supermicro MBD-X9SRW-F-O SUPERMICRO MB 1xLGA2011 iC602 8x DDR3 ECC R,2xSATA3, 4xSATA2 2,1 PCI-E 3.0 (x16,x8),2xLAN,IPMI, WIO
12003 Kč
9920 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: MBD-X9SRW-F-O
Kód produktu: 45148113
Výrobce: SUPERMICRO
Záruka: 36 měsíců
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
MBD-X9SRW-F -B ##X9SRW-F (Bulk Pack)
Physical Stats
Form Factor ##Proprietary
Dimensions ##8.15" x 13.05", (20.7cm x 33.1cm)
Processor/Cache
CPU ##Single Socket R (LGA 2011)
##Intel® Xeon® processor E5-2600/1600
and E5-2600/1600 v2 family†
(up to 12 cores and up to 135W)
Note † BIOS version 3.0 or above is required
† E5-1600 series CPU does not support LRDIMM type memory
System Memory
Memory Capacity ##8x 240-pin DDR3 DIMM slots
##Up to 512GB DDR3 ECC LRDIMM
##Up to 256GB DDR3 ECC RDIMM
##Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type ##1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes ## 32GB, 16GB, 8GB, 4GB, 2GB, 1GB,
64GB LRDIMM
Memory Voltage ##1.5 V, 1.35 V
Error Detection ##Corrects single-bit errors
##Detects double-bit errors
(using ECC memory)
On-Board Devices
Chipset ##Intel C602 chipset
SATA ##SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
##SATA 3.0 6Gb/s with RAID 0, 1, 5, 10
IPMI ##Support for Intelligent Platform Management Interface v.2.0
##IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
##Nuvoton WPCM450RA0BX
Network Controllers ##Intel® i350 Dual Port Gigabit Ethernet
##Virtual Machine Device Queues reduce I/O overhead
##Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video ##Matrox G200eW 16MB DDR2 graphics controllers
Input / Output
SATA ##2x SATA3 (6Gbps) ports
##4x SATA2 (3Gbps) ports
SCU ##4x SATA ports (3Gbps) via SCU
LAN ##2x RJ45 Gigabit Ethernet LAN ports
##1x RJ45 Dedicated IPMI LAN port
USB ##8x USB 2.0 ports total
(4 rear + 4 via header)
Video ##1x VGA port
Serial Port / Header ##1x serial port
DOM ##1x DOM (Disk on Module) power connector
TPM ##1x TPM Header
OS Compatibility
• Please reference the OS Compatibility Chart for details
Chassis ( Optimized for X9SRW-F )
1U Chassis ##CSE-514-R400W
## CSE-514-R400W
## CSE-815TQ-600WB
## CSE-815TQ-R500WB
2U Chassis ## CSE-825TQ-R500WB
Tower / 4U Rackmount ##CSE-847A-R1K28WB
##CSE-847E16-R1K28WB
##CSE-847E26-R1K28WB
Important Chassis Notes ##To support motherboards based on Intel® Xeon® processor 5500/3500 series, Revision K or later chassis is recommended for most models. Please talk to your sales representative for details.
Expansion Slots
PCI-Express ##2 (x16) PCI-E 3.0 slots
##1 (x8) PCI-E 3.0 (in x16) slot
System BIOS
BIOS Type ##64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features ##Plug and Play (PnP)
##APM 1.2
##DMI 2.3
##PCI 2.3
##ACPI 1.0 / 2.0 / 3.0 / 4.0
##USB Keyboard support
##Hardware BIOS Virus protection
##SMBIOS 2.7.1
##UEFI 2.3.1
##RTC (Real Time Clock) Wakeup
Management
Software ##IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
##SuperDoctor® III
##Watch Dog
##NMI
Power Configurations ##ACPI / APM Power Management
##Keyboard Wakeup from Soft-Off
##CPU Fan auto-off in sleep mode
##Power-on mode for AC power recovery
PC Health Monitoring
Voltage ##Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN ##Total of five 4-pin fan headers supporting up to 5 fans
##5 fans w/ tachometer status monitoring
##Status monitor for speed control
##Status monitor for on/off control
##Low noise fan speed control
##Pulse Width Modulated (PWM) fan connectors
Temperature ##Monitoring for CPU and chassis environment
##CPU thermal trip support
##I2C temperature sensing logic
##Thermal Monitor 2 (TM2) support
##PECI
LED ##CPU / System Overheat LED
##Suspend static indicator LED
##UID/Remote UID
Other Features ##Chassis intrusion detection
##Chassis intrusion header
##Chipkill support
##RoHS, Halogen Free
