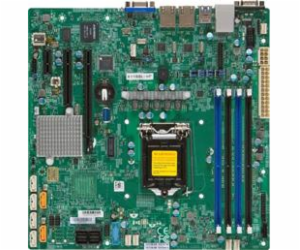

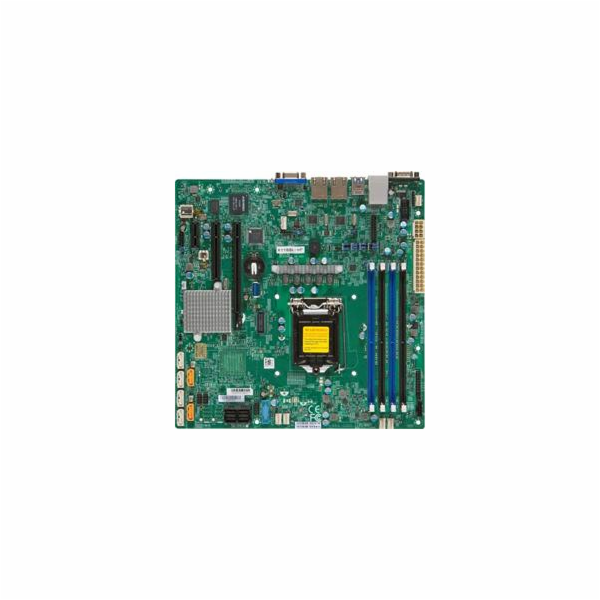

Supermicro MBD-X11SSL-NF-O SUPERMICRO MB 1xLGA1151, iC232,DDR4,6xSATA3,PCIe 3.0 (1 x8 (in x16), 1 x4 (in x8) , 1 x1 (in x2)), 2xNVMe, No IPMI
Supermicro MBD-X11SSL-NF-O SUPERMICRO MB 1xLGA1151, iC232,DDR4,6xSATA3,PCIe 3.0 (1 x8 (in x16), 1 x4 (in x8) , 1 x1 (in x2)), 2xNVMe, No IPMI
5389 Kč
4453 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: MBD-X11SSL-NF-O
Kód produktu: 98753722
Výrobce: SUPERMICRO
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Product SKUs
MBD-X11SSL-nF X11SSL-nF
Physical Stats
Form Factor Micro-ATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C232
SATA Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2400 BMC
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Graphics Aspeed AST2400 BMC
Input / Output
USB 6 USB 2.0 ports (2 rear + 4 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x1
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features ACPI 1.0 / 2.0 / 3.0 / 4.0
APM 1.2
DMI 2.3
Hardware BIOS Virus protection
PCI 2.3
Plug and Play (PnP)
SMBIOS 2.7.1
USB Keyboard support
UEFI 2.3.1
Management
Software IPMI2.0, NMI, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED UID/Remote UID, CPU / System Overheat LED
Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Popis produktu
Product SKUs
MBD-X11SSL-nF X11SSL-nF
Physical Stats
Form Factor Micro-ATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C232
SATA Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2400 BMC
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Graphics Aspeed AST2400 BMC
Input / Output
USB 6 USB 2.0 ports (2 rear + 4 headers)
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 2 COM Ports (1 rear, 1 header)
TPM TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x4 (in x8 slot),
1 PCI-E 3.0 x1
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features ACPI 1.0 / 2.0 / 3.0 / 4.0
APM 1.2
DMI 2.3
Hardware BIOS Virus protection
PCI 2.3
Plug and Play (PnP)
SMBIOS 2.7.1
USB Keyboard support
UEFI 2.3.1
Management
Software IPMI2.0, NMI, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED UID/Remote UID, CPU / System Overheat LED
Other Features Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
