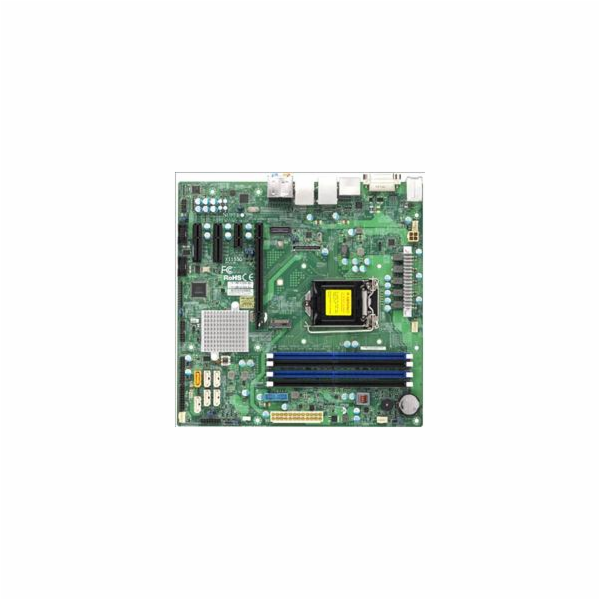

MBD-X11SSQ X11SSQ



Physical Stats

Form Factor Micro-ATX

Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)



Processor/Cache

CPU Intel® 6th Generation Core? i3 series, Intel® 6th Generation Core? i5 series, Intel® 6th Generation Core? i7 series, Intel® 7th Generation Core? i3 series, Intel® 7th Generation Core? i5 series, Intel® 7th Generation Core? i7 series, Intel® Celeron®, Intel® Pentium®.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 91W

Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core? Processors



System Memory

Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots

Memory Type 2400/2133/1866MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes 4GB, 8GB, 16GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® Q170 Express

SATA Intel® Q170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel RST

Network Controllers Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT

Audio ALC 888S HD Audio

Graphics Intel® HD Graphics
3 Independent Displays



Input / Output

SATA 6 SATA3 (6Gbps) ports

LAN 2 RJ45 Gigabit Ethernet LAN ports

USB 8 USB 2.0 ports (4 rear + 4 headers)
4 USB 3.0 ports (2 rear + 2 headers)

Video Output 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port,
3 Independent Displays

Serial Port / Header 4 COM Ports (4 headers)


TPM TPM Header

Others 8 bit GPIO, Force On mode by jumper and AC recovery







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x4,
1 PCI-E 3.0 x1
M.2 PCI-E x2 M Key 2242/2260/2280, PCI-E 3.0 x4 with open slots

M.2 1 M.2 PCI-E 3.0 x2, 2242/2260/2280



System BIOS

BIOS Type AMI UEFI

BIOS Features Plug and Play (PnP)
DMI 2.3
USB Keyboard support
UEFI 2.3.1
ACPI 5.0
SMBIOS 3.0
PCI 3.0



Management

Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog

Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery
Force Power On by Jumper



PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, Chassis intrusion header, Memory, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT

FAN 4x 4-pin fan headers (up to 4 fans), Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors

Temperature CPU thermal trip support, Adaptive Thermal Monitor, PECI 3.0, Thermal Monitor 2 (TM2) support, PECI

LED CPU / System Overheat LED, Standby alert LED

Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, M.2 NGFF connector, RoHS, System level control, WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)

---
