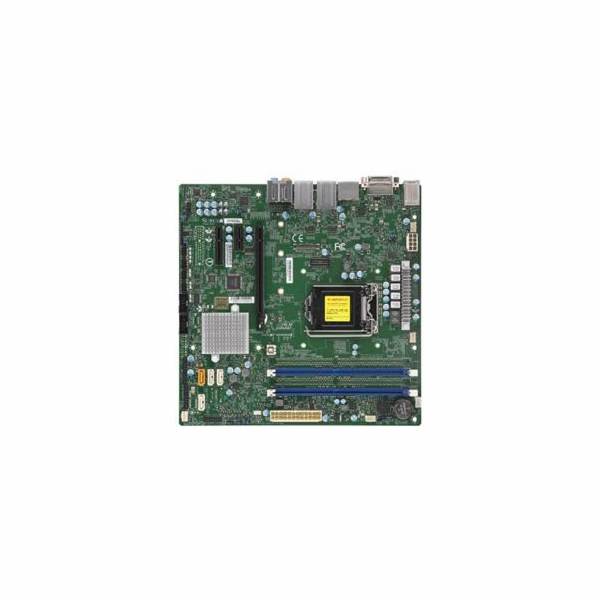

Supermicro MBD-X11SCQ-L-O SUPERMICRO MB 1xLGA1151 (Core 8th gen/ 95W), H310,2xDDR4,4xSATA3,PCIe 3.0 (x16) 2.0(x4,x1),HDMI,DP,DVI,Audio
Supermicro MBD-X11SCQ-L-O SUPERMICRO MB 1xLGA1151 (Core 8th gen/ 95W), H310,2xDDR4,4xSATA3,PCIe 3.0 (x16) 2.0(x4,x1),HDMI,DP,DVI,Audio
8299 Kč
6858 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: MBD-X11SCQ-L-O
Kód produktu: 63660947
Výrobce: SUPERMICRO
Záruka: 36 měsíců
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Product SKUs
MBD-X11SCQ X11SCQ
Physical Stats
Form Factor uATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® Q370
SATA Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Audio 7.1 HD Audio
Graphics Intel® HD Graphics
3 Independent Displays
Input / Output
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 6 USB 2.0 ports (2 rear + 4 via headers)
6 USB 3.1 ports (4 rears (2 Type A + 2 Type C) + 2 via headers
Video Output 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
3 Independent Displays
Serial Port / Header 6 COM Ports (6 headers)
TPM TPM Header & Chip both
Expansion Slots
PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x1,
2 PCI-E 3.0 x4
M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2242/2280/22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog
Power Configurations ATX Power connector
ACPI Power Management
PC Health Monitoring
Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), 4 fans with tachometer monitoring, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT
FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring
Temperature CPU thermal trip support, Monitoring for CPU and chassis environment
LED Power LED
Other Features ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Popis produktu
Product SKUs
MBD-X11SCQ X11SCQ
Physical Stats
Form Factor uATX
Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes 4GB, 8GB, 16GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® Q370
SATA Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Audio 7.1 HD Audio
Graphics Intel® HD Graphics
3 Independent Displays
Input / Output
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 6 USB 2.0 ports (2 rear + 4 via headers)
6 USB 3.1 ports (4 rears (2 Type A + 2 Type C) + 2 via headers
Video Output 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
3 Independent Displays
Serial Port / Header 6 COM Ports (6 headers)
TPM TPM Header & Chip both
Expansion Slots
PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x1,
2 PCI-E 3.0 x4
M.2 M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2242/2280/22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.6
RTC (Real Time Clock) Wakeup
Management
Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog
Power Configurations ATX Power connector
ACPI Power Management
PC Health Monitoring
Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), 4 fans with tachometer monitoring, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, System temperature, VBAT
FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring
Temperature CPU thermal trip support, Monitoring for CPU and chassis environment
LED Power LED
Other Features ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
