Supermicro AOM-S3108M-H8L SUPERMICRO Add-on-Module with LSI 3108, SAS-3/Gen-3 12Gb/ROC, RAID 0, 1, 5, 6, 10, 50, 60, 2GB cache, 2x SFF-8643
Supermicro AOM-S3108M-H8L SUPERMICRO Add-on-Module with LSI 3108, SAS-3/Gen-3 12Gb/ROC, RAID 0, 1, 5, 6, 10, 50, 60, 2GB cache, 2x SFF-8643
22588 Kč
18668 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: AOM-S3108M-H8L-O
Kód produktu: 97579805
Výrobce: SUPERMICRO
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Add-on Module

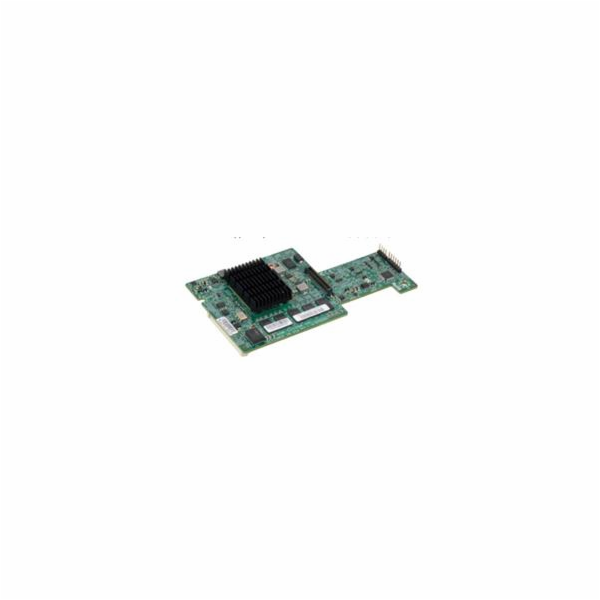

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Mezzanine Card
The Supermicro MegaRAID Low Profile AOM-S3108M-H8L features 8 internal SAS connectors for high-performance storage connectivity. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of SuperCap/TFM unit, this provides cached data protection and allows system builders to protect cached data during power failures.
Optional Cachecade feature significantly boosts systems performance and minimize rebuild times.
The AOM-S3108M-H8L supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.
To order, contact your distributor. This product is only available through Supermicro.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
• Broadcom 3108 8-port PCI-E SAS-3 controller
• 8-port (8 internal) 12Gb/s per port
• Supports RAID 0, 1, 5, 6, 10, 50, 60
• On board hardware IO Processor
• 2GB 1866MHz DDR3 on-card cache
• MegaRAID configuration and management utilities
• Power management support
• SAS transfer rates up to 12Gb/s and SATA rates up to 6Gp/s
• Optional Cachecade feature for higher performance
• Supports SSP, SMP, STP and SATA protocols
• Optional Supercap/TFM Unit for cached data protection
(BTR-CV3108-U1) - operating temperature (Ambient)
from 10°C - 55°C
• OS Support : Windows 2012, 2k8 64/32 bit, Red Hat
Enterprise and SUSE Linux
• Power Usage 16W
Dimensions
H x L
3.2" x 5.2"
Tested Motherboards and Servers
Motherboards
X10DSC+
Tested Hard Drives
Tested
[ Tested HDD List ]
Popis produktu
Add-on Module
Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Mezzanine Card
The Supermicro MegaRAID Low Profile AOM-S3108M-H8L features 8 internal SAS connectors for high-performance storage connectivity. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.
With the option of SuperCap/TFM unit, this provides cached data protection and allows system builders to protect cached data during power failures.
Optional Cachecade feature significantly boosts systems performance and minimize rebuild times.
The AOM-S3108M-H8L supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.
To order, contact your distributor. This product is only available through Supermicro.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
• Broadcom 3108 8-port PCI-E SAS-3 controller
• 8-port (8 internal) 12Gb/s per port
• Supports RAID 0, 1, 5, 6, 10, 50, 60
• On board hardware IO Processor
• 2GB 1866MHz DDR3 on-card cache
• MegaRAID configuration and management utilities
• Power management support
• SAS transfer rates up to 12Gb/s and SATA rates up to 6Gp/s
• Optional Cachecade feature for higher performance
• Supports SSP, SMP, STP and SATA protocols
• Optional Supercap/TFM Unit for cached data protection
(BTR-CV3108-U1) - operating temperature (Ambient)
from 10°C - 55°C
• OS Support : Windows 2012, 2k8 64/32 bit, Red Hat
Enterprise and SUSE Linux
• Power Usage 16W
Dimensions
H x L
3.2" x 5.2"
Tested Motherboards and Servers
Motherboards
X10DSC+
Tested Hard Drives
Tested
[ Tested HDD List ]
