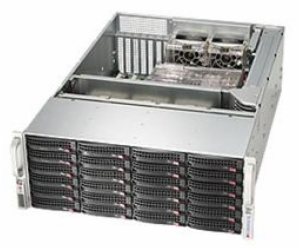

CSE-846BE1C-R1K23B SuperChassis 846BE1C-R1K23B



Form Factor

4U chassis support for max. motherboard size - EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10")



Processor Support

Single and Dual Intel® and AMD processors



Dimensions

Height 7" (178 mm)

Width 17.2" (437 mm)

Depth 26" (660 mm)

Gross Weight 75 lbs (34.02 kg)

Packaging (W x H x L) 34.3" (871 mm) x 26.5" (673 mm) x 13.5" (343 mm)

Available Color Black



Expansion Slots

7 full-height & full-length expansion slot(s)



Drive Bays

24 x 3.5" hot-swap drive bay



Backplane

24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD



Peripheral Drives

Optional 2 x 2.5" hot-swap drive bay
Optional 1 x 3.5" internal fixed drive bay
Optional 2 x 2.5" internal fixed drive bay



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 80mm rear hot-swap exhaust PWM fan(s)



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency 96%

Total Output Power and Input 1000W with Input 100 - 127Vac
1200W with Input 200 - 240Vac
1200W with Input 200 - 240Vdc

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 336 x 76 x 40 mm

Output Type Backplanes (gold finger)

+12V Max: 83A (100Vac - 127Vac)
Max: 100A (200Vac - 240Vac)
Max: 100A (200 - 240)

+5Vsb Max: 4A / Min: 0A

Power Distributor PDB-PT846-2824
O/P: 12V/135
+5V Max: 50
+3.3V Max: 24
-12V Max: 0.6

Certification Titanium Certified Titanium Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Air Shroud MCP-310-49003-0N 1 SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
HD Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0217L 1 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
Cable(S) CBL-0234L 1 Y CABLE FOR 4-PIN HDD
Fan(s) FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s) FAN-0185L4 3 80x80x38 mm, 10.5K RPM, Hot-swappable Middle Cooling Fan for X11 Generation SC846B Chassis
Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
Drive Tray(s) MCP-220-00075-0B 24 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT846-2824 1 PDB with 23pairs input connector support SC846B
Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Power Supply & Accessory MCP-290-84604-0N 1 SC846 PDB Cover
Mounting Rail(s) MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
Mounting Rail(s) MCP-410-00007-0N 1 Rail screw bag
Rear Window MCP-240-84602-0N 1 846B rear window which support 2 X 2.5" HDD module and DVD




Optional Parts List

Part Number Qty Description
Drive Trays MCP-220-84601-0N - Single 3.5" Fixed HDD Tray (RA cables required)
Short Rail MCP-290-00058-0N - 19" to 26.6" rail set, Quick Release, Tool-less (for rev. K4 or later)
DVD-ROM / DVD-RW MCP-220-84607-0N - Optional DVD kit for SC846B series chassis
HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
HDD Kit MCP-220-84610-0N - 2G 2.5-inch x2 Drive Kit w/ Status LED for 846B





Motherboard (for CSE- 846BE1C-R1K23B)


X11SPH-nCTF H11DSI-NT X11SPH-nCTPF X11DPH-T
X11DPH-I X11DPH-TQ H11DSi H11SSL-NC
H11SSL-C H11SSL-i


= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU




Servers (for CSE- 846BE1C-R1K23B)


6049P-E1CR24L 6049P-E1CR24H

---
