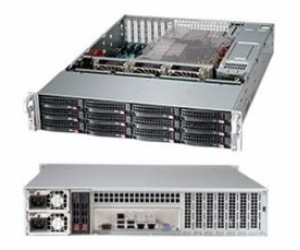

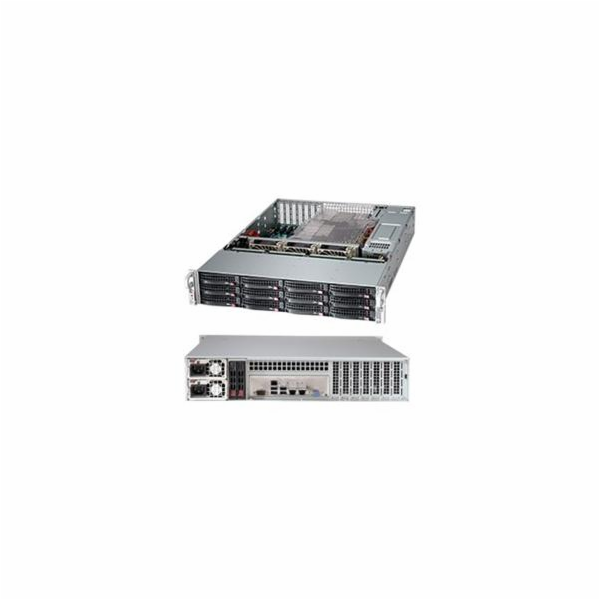

CSE-826BAC4-R920LPB SuperChassis 826BAC4-R920LPB



Form Factor

2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed



Processor Support

Dual and Single Intel® and AMD processors



Dimensions

Height 3.5" (89 mm)

Width 17.2" (437 mm)

Depth 25.5" (647 mm)

Net Weight 40 lbs (18.14 kg)

Gross Weight 55 lbs (24.95 kg)

Packaging (W x H x L) 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)

Available Color Black



Expansion Slots

7 low-profile expansion slot(s)



Drive Bays

12 x 3.5" hot-swap drive bay
Optional 2 x 2.5" hot-swap drive bay
8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD



Backplane

12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices



Front Panel

Buttons Power On/Off button
System Reset Button

LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED







Systems Cooling

Fans 3 x 8cm high-performance PWM fan(s)
Optional 5 x 6cm 4pin high performance fan(s)



System Monitoring

Chassis intrusion switch



Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)



Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency 94%

Total Output Power and Input 920W with Input 100 - 240Vac

AC Input Frequency 50-60Hz

Dimensions (L x W x H) 336 x 76 x 40 mm

Output Type Backplanes (gold finger)

-12V Max: NAA

+12V Max: 75A / Min: 1A (100Vac - 240Vac)

+5Vsb Max: 4A / Min: 0A

+12Vsb Max: NAA

Power Distributor PDB-PT826-8824
O/P: 12V/135
+5V Max: 40
+3.3V Max: 24
-12V Max: 0.6

Certification Platinum Certified Platinum Certified




Regulatory (Power Supply)

Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL



Components ?





Standard Parts List

Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-826A-N4 1 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Fan(s) FAN-0126L4 3 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Power Supply & Accessory PWS-920P-SQ 2 920W 1U Redundant PWS W/ Quiet Mode
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF




Optional Parts List

Part Number Qty Description
Tray(s) MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
Tray(s) MCP-220-00116-0B - Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
HDD Kit MCP-220-82609-0N - Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
Fan Kit MCP-320-82603-0N - 6cm fan cooling module for 826B/216B (5X6cm fan)
Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B





Motherboard (for CSE- 826BAC4-R920LPB)


X10DRC-T4+ X10DRC-LN4+ X10SRH-CLN4F X10DRH-I
X10DRH-iT X10DRH-CT X10DRH-C X10DRH-iLN
X10DRH-CLN4

---
