Key Features


2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3
Optional rear 2x 2.5" hot-swap drive bay kit
12-port LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device
920W 1U Redundant Power Supply
7x low-profile expansion slot(s)
3x 8cm high-performance PWM fan(s)
Support service tag for system information
Comes with standard 2U package with 2-layer carton and SMC logo
















Product SKUs

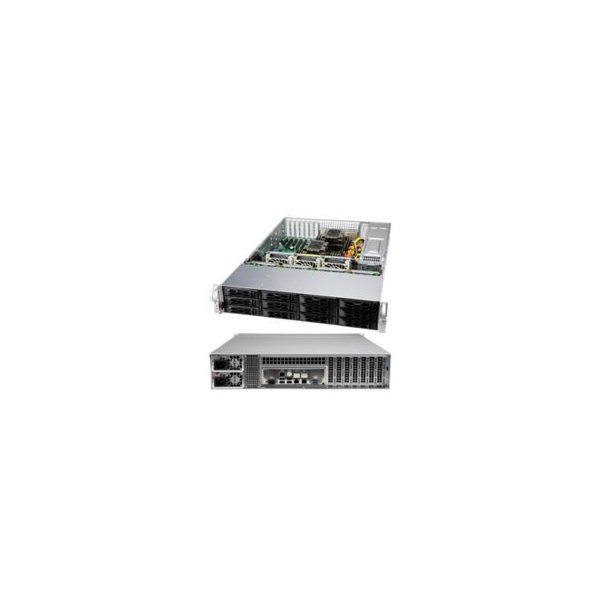

SuperChassis  LA26AC12-R920LP1







Form Factor




2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed









Processor Support




Dual and Single Intel® and AMD processors









Dimensions


Height


3.5" (89 mm)




Width


17.2" (437 mm)




Depth


25.5" (647 mm)




Gross Weight


69 lbs (31.3 kg)




Net Weight


35.3 lbs (16 kg)




Packaging (W x H x L)


26.4" (671 mm) x 11.4" (290 mm) x 34.3" (871 mm)




Available Color


Black









Expansion Slots




7x Low-profile expansion slot(s)









Drive Bays




Optional 2x 2.5" hot-swap drive bay
12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3









Backplane




12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS









Front Panel


Button


Power On/Off button
System Reset button




LED


Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED























Systems Cooling


Fans


3x 8cm high-performance PWM fan(s)









System Monitoring




Optional Chassis intrusion switch









Operating Environment (System)


Operating Temperature Range


5°C - 35°C (41°F - 95°F)




Non-Operating Temperature Range


-40°C - 70°C (-40°F - 158°F)




Operating Relative Humidity Range


8% - 90% (non-condensing)




Non Operating Relative Humidity Range


5% - 95% (non-condensing)









Power Supply


1U 920W redundant power supply


Power Efficiency


94+%




Total Output Power and Input


920W with Input 200 - 240Vac
920W with Input 100 - 127Vac
920W with Input 200 - 240Vdc




AC Input Frequency


50-60Hz




Dimensions (L x W x H)


336 x 76 x 40 mm




Output Type


Backplanes (connector)




+12V


Max: 75A / Min: 0A (200Vac - 240Vac)
Max: 75A / Min: 0A (100Vac - 127Vac)




+5Vsb


Max: 4A




Power Distributor


PDB-PT826-L8824
O/P: 12V/75
+5V Max: 30A
+3.3V Max: 24A
-12V Max: 0.6A




Certification


   Platinum Certified









Regulatory (Power Supply)


Power Supply Safety / EMC


BSMI
CCC
CE/EMC
UL/CB




















Standard Parts List



Part Number
Qty
Description


HD Backplane
BPN-SAS3-LA26A-N12
1
2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS


Cable(s)
CBL-0071L
1
ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF


Part(s)
MCP-120-00115-0N
7
Blank LP L-bracket with 4x4 vent holes


Part(s)
MCP-290-82603-0V
1
Silver left chss handle w/ ctrl panel for SC826 cable 235mm


Part(s)
MCP-290-82616-0V
1
OEM Silver right chassis handle for SC826(no logo label)


Part(s)
MCP-230-82602-0N
1
Top cover for SC826B/216B/825B


Fan(s)
FAN-0181L4
3
80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis


Drive Tray(s)
MCP-220-00184-0B
12
Black gen-9 tool-less cost-effective 3.5


Power Distributor
PDB-PT826-L8824
1
2U cost effective PDB support up to 1200W.,RoHS


Power Supply & Accessory
PWS-920P-1R2
2
1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF,


Rear Window
MCP-240-82608-0N
1
216B/826B LP rear window,RoHS/REACH,PBF












Optional Parts






Part Number
Qty
Description


Air Shroud
MCP-310-29001-0N
-
SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13


MCP-310-82603-0B
-
Mylar air shroud for 2U & 4U X11SPH,RoHS


Cable
CBL-PWCD-0160-IS  •
-
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,

---
