Popis produktu

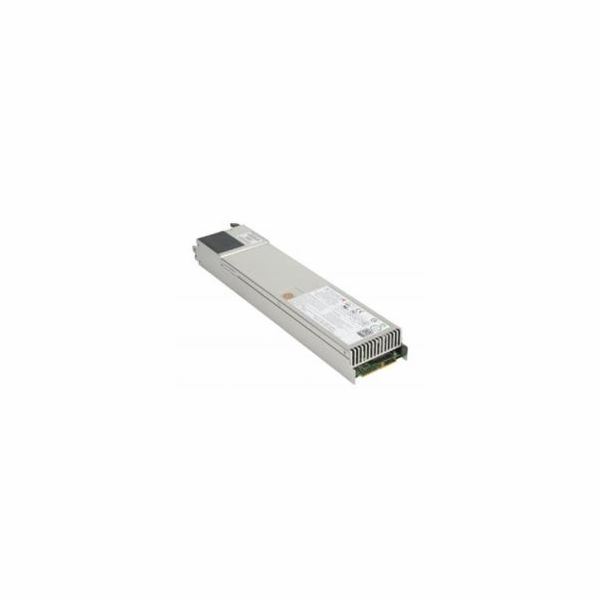

The Supermicro PWS-920P-SQ is an 80 Plus Platinum level redundant power supply capable of supplying 920W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and super quiet fans for a more peaceful environment under normal operation. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 150,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
More Information


Total Power Output
920W

Type
Module

Type of Power Supply
Power Supply

Form Factor
1U

Dimension (W x H x L)
76 x 40 x 346 mm

+5V
N/A

+12V
75A

+3.3V
N/A

5V Standby
4A

Input Voltage Range
100-240V

Input Frequency Range
50-60Hz

Input Current Range
11-4.4A

Output Type
Gold Finger (19 Pair Connector)

8Pin / 4Pin (12V) Connector
N/A

PFC
Yes

Voltage / Current
Yes

Energy Efficiency
91% Peak

80 Plus Certification
80 Plus Platinum

Validated Systems
SSG-2027B-DE2R24L, SSG-2027R-AR24, SSG-2027R-AR24NV, SSG-2027R-E1CR24L, SSG-2027R-E1CR24N, SSG-2027R-E1R24N, SSG-2028R-ACR24H, SSG-2028R-ACR24L, SSG-2028R-E1CR24H, SSG-2028R-E1CR24L, SSG-2028R-E1CR24N, SSG-5028R-E1CR12L, SSG-6027R-E1CR12L, SSG-6027R-E1CR12N, SSG-6028R-E1CR12H, SSG-6028R-E1CR12L, SSG-6028R-E1CR12N, SSG-6028R-E1CR12T, SSG-6038R-E1CR16H, SSG-6038R-E1CR16L, SSG-6038R-E1CR16N, SSG-6047R-E1R24L, SSG-6048R-E1CR24H, SSG-6048R-E1CR24L, SSG-6048R-E1CR24N, SYS-2027R-N3RF4+, SYS-2027R-N3RFT+, SYS-6027R-CDNRT+, SYS-6027R-N3RFT+, SYS-6028R-TDWNR

Validated Chassis
CSE-216BA-R920LPB, CSE-216BA-R920UB, CSE-216BA-R920WB, CSE-216BAC-R920LPB, CSE-216BE1C-R920LPB, CSE-216BE1C-R920WB, CSE-216BE2C-R920LPB, CSE-216BE2C-R920WB, CSE-216BE16-R920LPB, CSE-216BE16-R920WB, CSE-216BE26-R920LPB, CSE-216BE26-R920UB, CSE-216BE26-R920WB, CSE-219A-R920WB, CSE-826BA-R920LPB, CSE-826BA-R920UB, CSE-826BA-R920WB, CSE-826BAC4-R920LPB, CSE-826BAC4-R920WB, CSE-826BE1C-R920LPB, CSE-826BE1C-R920WB, CSE-826BE2C-R920LPB, CSE-826BE2C-R920WB, CSE-826BE16-R920UB, CSE-826BE16-R920WB, CSE-826BE26-R920LPB, CSE-826BE26-R920UB, CSE-826BE26-R920WB, CSE-829BTQ-R920WB, CSE-835TQ-R921B, CSE-836BA-R920B, CSE-836BE16-R920B, CSE-836BE26-R920B, CSE-846BA-R920B, CSE-846BE16-R920B, CSE-846BE26-R920B

Warranty
1 year warranty

Product Environmental Compliance
RoHS and REACH compliant, details available upon request

---
