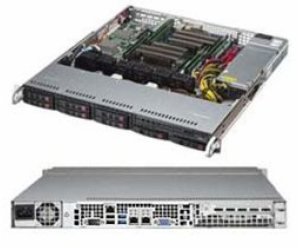

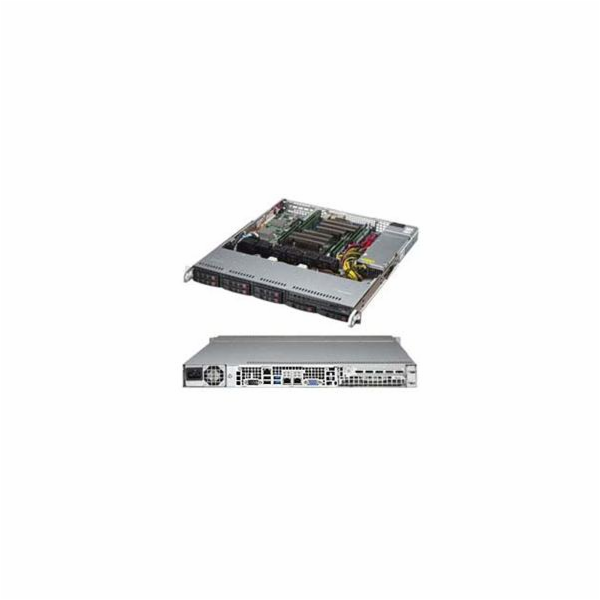

SUPERMICRO 1U chassis 8x 2,5" HS SAS3/SATA (2x NVMe), 600W (80PLUS Platinum)
SUPERMICRO 1U chassis 8x 2,5" HS SAS3/SATA (2x NVMe), 600W (80PLUS Platinum)
16127 Kč
13328 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: CSE-113MFAC2-605CB
Kód produktu: 80362758
Výrobce: SUPERMICRO
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Product SKUs
CSE-113MFAC2-605CB SuperChassis 113MFAC2-605CB
Form Factor
?1U Chassis for motherboard support size: ATX 12" x 10"
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 19.98" (507 mm)
Gross Weight 29.5 lbs (13.38 kg)
Packaging (W x H x L) 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm)
Available Color Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
8 x 2.5" hot-swap SAS/SATA drive bay
Backplane
8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Systems Cooling
Fans 4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 600W platinum efficiency multiple output power supply w/PMBus
Power Efficiency 92%
Total Output Power and Input 600W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 279.4 x 76 x 40.4 mm
Output Type 24pin ATX
-12V Max: 0.5A / Min: 0A
+12V Max: 49A / Min: 0.5A (100Vac - 240Vac)
+5V Max: 18A / Min: 0.5A
+3.3V Max: 15A / Min: 0.5A
+5Vsb Max: 3A / Min: 0A
+12Vsb Max: NAA
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Popis produktu
Product SKUs
CSE-113MFAC2-605CB SuperChassis 113MFAC2-605CB
Form Factor
?1U Chassis for motherboard support size: ATX 12" x 10"
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 19.98" (507 mm)
Gross Weight 29.5 lbs (13.38 kg)
Packaging (W x H x L) 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm)
Available Color Black
Expansion Slots
1 full height expansion slot(s)
Drive Bays
8 x 2.5" hot-swap SAS/SATA drive bay
Backplane
8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Systems Cooling
Fans 4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
1U 600W platinum efficiency multiple output power supply w/PMBus
Power Efficiency 92%
Total Output Power and Input 600W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 279.4 x 76 x 40.4 mm
Output Type 24pin ATX
-12V Max: 0.5A / Min: 0A
+12V Max: 49A / Min: 0.5A (100Vac - 240Vac)
+5V Max: 18A / Min: 0.5A
+3.3V Max: 15A / Min: 0.5A
+5Vsb Max: 3A / Min: 0A
+12Vsb Max: NAA
Certification Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
