Popis produktu

zásobování energií: Síť
Provoz na baterie: ne
Modem: ne
3G Router: ne
WLAN-Standard: IEEE 802.11a/b/g/n/ac/ax
Frekvence: 2,4 / 5 GHz
Počet 10/100 Mbit/s Portů: 3
Počet Gigabit-Portů: 2
WAN-Port: 1x 10/100/1000 Mbit/s
Slot pro LTE SIM kartu: ne
VPN (Virtuální soukromá síť): ano
Kódování: WPA / WPA2
Typ: Access-Point
Anténa: interní
Počet antén: 4
Zisk antény (dBi): 3
Max. přenosová rychlost WLAN (Mbit/s): 3000
Barva: bílá
Rozměry: 128 x 128 x 73
Hmotnost (g): 320

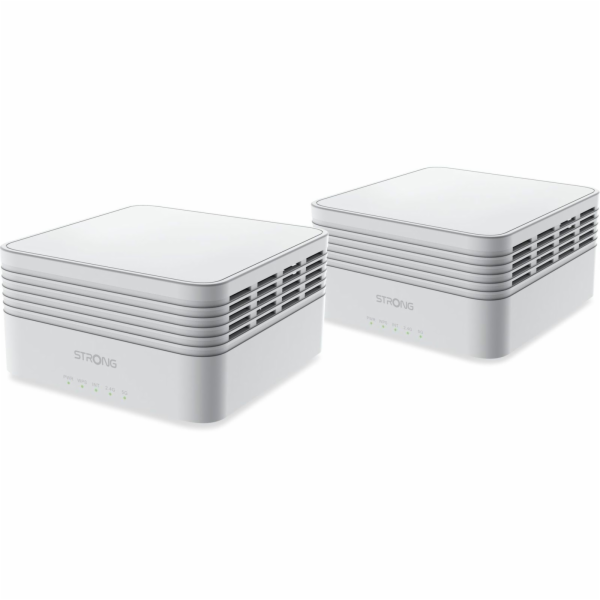

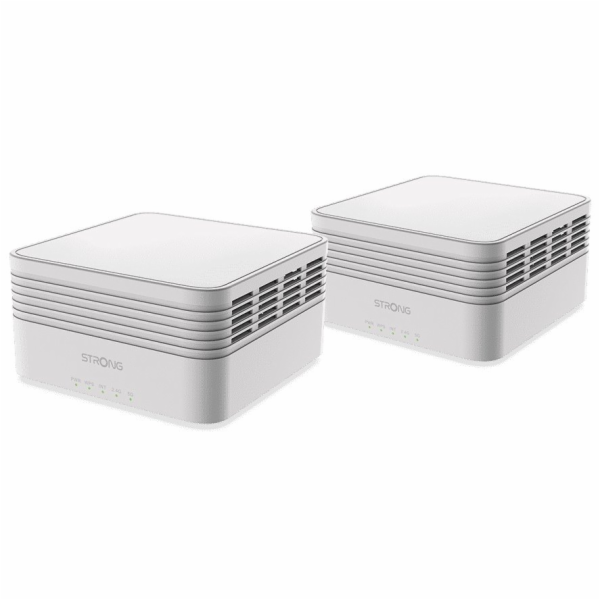

MeshStrong ATRIA Mesh Kit AX3000

Performant – Reliable – Anywhere


Ultimate Wi-Fi 6, MU-MIMO dual band and OFDMA technologies inside
574 Mbps @ 2.4 GHz + 2402 Mbps @ 5 GHz
Supports Wi-Fi 6, compatible with Wi-Fi 5 and older
Speed up to 3000 Mbit/s


Using state of art Easy Mesh solution, STRONG’s Wi-Fi Mesh Home Trio Pack AX3000 combines Mesh technology with the powerful Wi-Fi 6 MU-MIMO standard for ultimate speed and coverage at home. This package of 2 ATRIA Mesh AX3000 replaces your current Wi-Fi network without changing your modem or router. It brings a super-fast and seamless roaming Wi-Fi network at a speed up to 3000 Mbit/s with coverage up to 350 m2.Depending on the size of your house, you can add up to 3x additional ATRIA Mesh AX3000 (up to 6x ATRIA Mesh AX3000 cover an area of up to 1050 m2).Manage your Wi-Fi Mesh network at a finger touch with the ATRIA Mesh App available for Android and iOS devices.

Characteristics


Wi-Fi performance

Supports Wi-Fi 6 (802.11ax/ac/n/g/ n/b/a) standards
Speed up to 3000 Mbps
Support MU-MIMO and OFDMA technologies (574 Mbit/s @2.4GHz + 2402 Mbit/s @5GHz)
Supports 5 GHz DFS Channels




Coverage & Reliability


Easy MESH Support for maximum coverage performance and connectivity
Up to 254 connected devices capacity
Multiple Access Points Configuration
Only one Wi-Fi name all over the house
Intelligent roaming in Mesh configuration
Wi-Fi Mesh Trio Pack AX3000 covers up to 350 m2 Up to 6x ATRIA Mesh AX3000 cover up to 1050 m2 on multiple floors


Security


WPA / WPA2 / WPA3 for Wi-Fi security
Connect & Secure (WPS) button to add ATRIA Mesh AX3000 ADD-ON to your existing Mesh network in minutes
Connect & Secure (WPS) button to simply connect your Wi-Fi devices to your Wi-Fi Mesh network


Connections


3x Gigabit Ethernet ports on each ATRIA Mesh AX3000 to connect any computer, set-top-box, Smart TV, NAS, game console, …
TR069/TR098/TR181 compliant
Compatible with the ATRIA Mesh app to manage your Wi-Fi Mesh network at a finger touch
Mesh/Access Point/Router operational modes
Works with any standard modem or router


Technical specifications
WI-FI


Frequency: 2412 MHz-2462 MHz & 5180 MHz-5240 MHz & 5250 MHz-5350 MHz & 5470 MHz-5580 MHz
Standards: Wi-Fi 6 - IEEE 802.11ax/ac/n/g/b/a
Signal Rate:

5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps


Security: WPATM/WPA-PSKTM & WPA2TM/ WPA2-PSKTM & WPA3-SAET
Antenna: 4 x Internal Antennas (3dBI)
Transmit PowerEurope: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Supported Channels:

5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112
2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13


Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab


HARDWARE


CPU: Dual-core CPU 900MHz
Ethernet Ports:

2x 10/100/1000M LAN ports (Auto MDI/MDIX)
1x 10/100/1000M WAN ports (Auto MDI/MDIX)


Buttons: Connect & Secure (WPS), Reset, ON/OFF button
LEDs: Power, Internet, Pairing, 2,4 GHz and 5 GHz Wi-Fi
Power: External power supply, 12 V/ 1 A DC


SOFTWARE


Multiple SSID: 4x 2.4 GHz + 4x 5 GHz
Basic Network: DHCP server, DNS relay/proxy, NAT/NAPT, IGMP proxy, Firewall, VPN passthrough, DMZ, URL/IP/MAC Filtering, Port Forwarding
UPnP: Universal Plug & Play Internet Gateway Device
Management: TR069/TR098/TR181, Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log
ATRIA Mesh app: Android and iOS downloadable app to manage the Wi-Fi Mesh network


INTERNET SERVICES
Easy MESH Support:


Automatically Organized Network
Intelligent Roaming (client band steering)
Auto Configuration
Seamless Roaming
Auto MESH Routing
User Load Balancing
Auto Healing (Redundancy and Fail-over)
Multiple Access Point architecture: Up to 6x ATRIA Mesh AX3000 in one Mesh Network
Unique Wi-Fi name: Only one Wi-Fi name all over the house
Ethernet backhaul: Mesh nodes can also be connected through Ethernet for better performances


Package contents:


2x ATRIA Mesh AX3000
2x Power Supply Units (12 V/ 1 A DC)
1x CAT5E Ethernet Cable
1x Installation Instruction, Safety Instructions


OTHERS


System requirements: Internet Browser
Operating Temperature: 0° C ~ +45° C
Storage temperature: -20° C~+70° C
Operating humidity: 10%~90% non-condensing
Storage humidity: 10%~90% non-condensing
Dimensions (WxDxH) per unit: 128 x 128 x 73 mm
Weight per unit: 320 g

---
