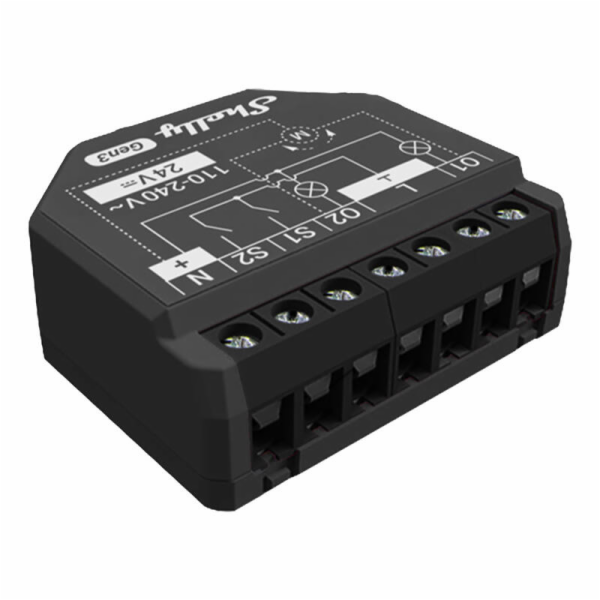

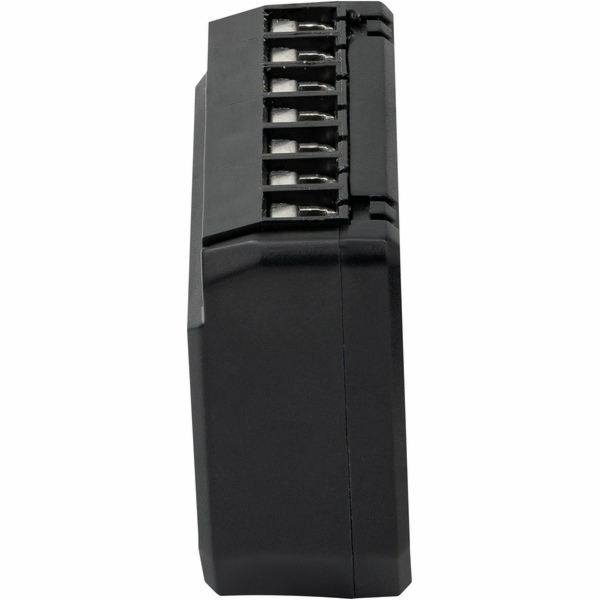

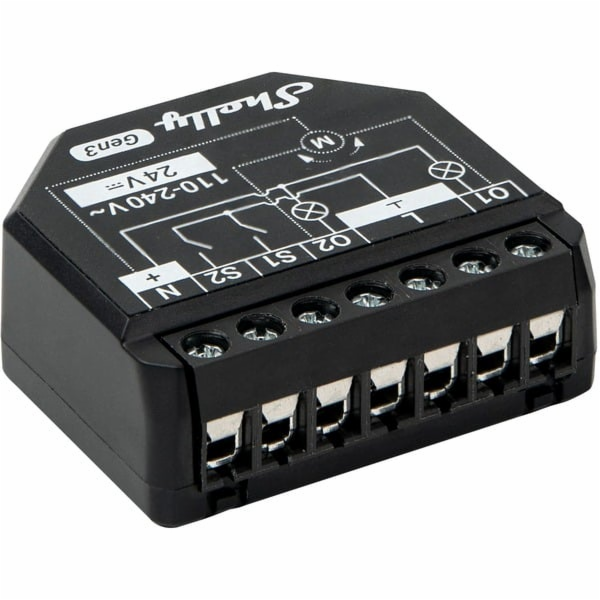

Shelly 2PM Gen3 controller
The Shelly 2PM Gen3 is a smart dual channel switch that combines remote control and energy monitoring functions. With its help, you can remotely manage two different electrical circuits or two-way devices, such as blinds or awnings - and from anywhere in the world. Thanks to its ability to fit into standard flush-mounted boxes, electrical outlets and switches, the product will also work well in areas with limited space.
Two-channel control and energy measurement
The Shelly 2PM Gen3 controller allows you to simultaneously control two channels on the same phase with the ability to precisely monitor energy consumption on each channel. This allows you to effectively manage lighting and other devices, optimizing their operation and controlling energy consumption in real time.
Total control over your devices
With Cover Control, the Shelly 2PM Gen3 controller allows you to automatically control the position of blinds, awnings, curtains, sliding doors and other two-way motors. The product offers precise adjustment of the angle of the blinds slats, adjusting the amount of light entering the room. As a result, you will enjoy ideal light conditions at any time.
State-of-the-art processor and functionality
The advanced ESP-Shelly-C38F processor, along with 8 MB memory, provide unparalleled performance and stable operation. With support for virtual components and improved terminal terminals, the controller guarantees reliability even under demanding conditions.
Automation and script support
The device supports advanced automation options such as scripting, WebSocket, HTTPS, UDP, TLS, as well as custom certificates, allowing you to customize its operation. Shelly 2PM Gen3 also supports 20 webhooks (with the ability to assign as many as 5 URLs to each), enabling quick responses to defined events. A webhook is a way to automatically send data or trigger actions in other systems when a specific event occurs on the device. Gain total control over your smart home!
Bluetooth and Wi-Fi integration and coverage
The Shelly 2PM Gen3 acts as a Wi-Fi range extender as well as a Bluetooth gateway, allowing the device to work even more effectively in larger spaces. Support for communication protocols such as KNXnet/IP provides greater flexibility for integration with other smart home devices and systems.
Safety of use
Use the controller without any worries. Shelly 2PM Gen3 provides protection against overheating, overvoltage, overload and excessive power consumption. In Cover Control mode, the device detects obstacles and automatically stops movement to prevent damage.

Manufacturer
Shelly
Manufacturer code
2PMgen3
Dimensions
37 x 42 x 16 mm
Weight
30 g
Maximum terminal torque
0.4 Nm / 3.5 lbin
Conductor cross section
0.2 to 2.5 mm2 / 24 to 14 AWG (single wire, multi-strand, sleeve terminations)
Length of stripped wire
6 to 7 mm
Mounting
Wall console / flush-mounted box
Housing material
Plastic
Housing color
Black
Operating temperature
from -20°C to 40°C
Humidity
30% to 70% RH
Max altitude
2000 m
Power supply
110-240V~ / 24 V? ±10%
Power consumption
Maximum switching voltage
240V~ / 30V?
Maximum switching current
16A (240V~) / 10A (30V?)
Built-in temperature sensor
Yes
Voltmeter (AC)
Yes
Ammeter (AC)
Yes
Protection against overheating
Yes (AC)
Overvoltage protection
Yes (AC)
Overload protection
Yes (AC)
Protection against excessive power consumption
Yes
Obstacle detection
Yes (iris mode)
Safety switch
Yes (iris mode)
Wi-Fi protocol
802.11 b/g/n
RF band
2400 - 2495 MHz
Max RF power
Range
Up to 50 m / up to 30 m indoors (depending on local conditions)
Bluetooth protocol
4.2
RF band
2400 - 2483.5 MHz
Max RF power
Range
Up to 30 m outdoors / up to 10 m indoors (depending on local conditions)
CPU
ESP-Shelly-C38F
Flash memory
8 MB
Schedules
20
Webhooks (URL shares)
20 with 5 URLs per webhook
Wi-Fi Range Extender
Yes
BLE Gateway
Yes
Scripting
Yes
MQTT
Yes
Encryption
Yes

---
