Popis produktu

Počet zubů: 72
Typ pohonu: Čtyřhranná nástrčka
Velikost nástrčné hlavice (v palcích): 1/4 + 1/2
Typ: Sada nástrčných klíčů
Rozsah použití: univerzální
Set: ano
Počet dílů: 94
Materiál: Ocel / plast
Barva: stříbrná / červená
Hmotnost (g): 6225

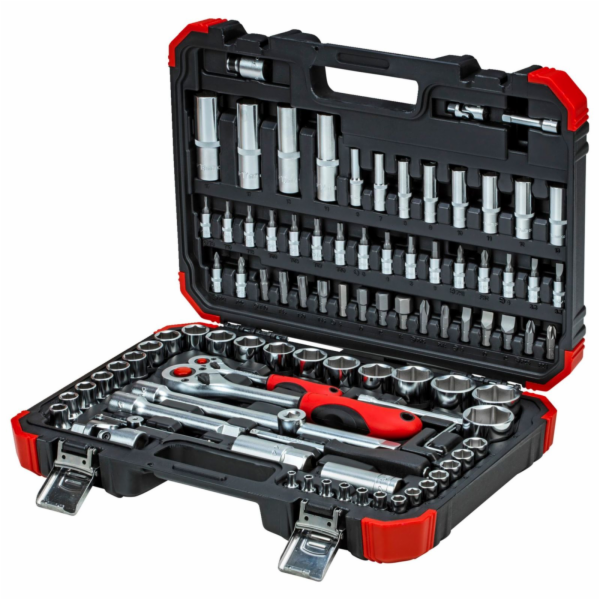

GEDORE socket set 1/4" + 1/2" 94-pcs.

Features:


Connection square drive to DIN 3120, ISO 1174, with ball catch groove
Internal square drive to DIN 3120, ISO 1174, with ball catch groove
2C reversible ratchet, right/left rotation reversible by lever, push button release, fine toothing, oval head, 2-component handle, hand-friendly power transmission, for sockets
Square socket 1/4", 1-component handle with square socket
Socket 1/4" + 1/2", hexagonal, metric, short, design according to DIN 3124, ISO 2725
Socket 1/4" + 1/2", hexagonal, metric, long, design according to DIN 3124, ISO 2725
Spark plug socket 1/2" with pressed-in retaining rubber
Spark plug socket 1/2" with pressed-in retaining rubber and additional drive hexagon SW 24
Screwdriver bit socket 1/4", for hexagon socket screws, with pressed-in, phosphated pin
Screwdriver bit socket 1/4", slotted, with pressed-in, phosphated pin
Screwdriver bit socket 1/4" PH, with pressed-in, phosphated pin
Screwdriver bit socket 1/4" PZ, with press-fitted, phosphated pin
Screwdriver bit socket 1/4", TX, with pressed-in, phosphated pin
Socket extension 1/4"+1/2"
Cross handle with sliding piece 1/4", design according to DIN 3122, ISO 3315
Cardan joint 1/4"+ 1/2", joint screwed, design according to DIN 3123 - C 12.5
Enlargement adapter/sliding piece 3/8" x 1/2", for driving sockets and screwdriver bits
Bit adapter 1/2", with internal square drive and internal hexagon drive, for all bits and tools with 5/16" external hexagon drive
Bit 5/16", hexagonal, slotted, PH, PZ, TX suitable for holder according to DIN ISO 1173 - D 8
Offset screwdriver set hexagonal, version according to DIN ISO 2936
For hand-operated screwdriving
Chrome vanadium steel, satin chrome-plated
Plastic case in GEDORE red design
Clamp-secured tools
Metal hinges/lock


Scope of delivery:


1/4" 2K lever-action ratchet fine-toothed, 72 teeth, length: 150 mm
1/4" square socket handle 165 mm
1/4" hexagon socket SW 4 / 4.5 / 5 / 5.5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14, length 25 mm
1/4" Socket 6-sided SW 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 mm, length: 50 mm
1/4" Screwdriver bit socket hexagonal 3 / 4 / 5 / 6, length 37 mm
1/4" Screwdriver bit socket slotted 4 / 5.5 / 6.5, length 37 mm
1/4" Screwdriver bit bit cross recess PH 1 / 2, length 37 mm
1/4" Screwdriver bit socket cross recess PZ 1 / 2, length 37 mm
1/4" Screwdriver bit socket TX T8 / T10 / T15 / T20 / T25 / T27 / T30, length 37 mm
1/4" socket extension 50 / 100 mm
1/4" cross handle with sliding piece, length 115 mm
1/4" universal joint, length 32 mm
5/16" bits inner hexagon 8 / 10 / 12 / 14, length 30 mm
5/16" bits slotted 8 / 10 / 12, length 30 mm
5/16" bits cross recess PH 3 / 4, length 30 mm
5/16" bits cross recess PZ 3 / 4, length 30 mm
5/16" bits TX T40 / T45 / T50 / T55, length 30 mm
1/2" 2K lever ratchet fine toothing, 72 teeth, length 250 mm
1/2" hexagon socket SW 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 27 / 28 / 30 / 32
1/2" hexagon socket SW 14 / 15 / 17 / 19, length 77 mm
1/2" Spark plug socket SW 16 / 21 mm, length 65 mm
1/2" socket extension 125 / 250 mm
1/2" universal joint, length 66 mm
Enlargement piece / sliding piece 3/8" x 1/2", length 44 mm
Bit adapter 1/2" 4ct x 5/16" 6ct, length 38 mm
Offset screwdriver set hexagon SW 1.5 / 2 / 2.5 mm

---
