Popis produktu

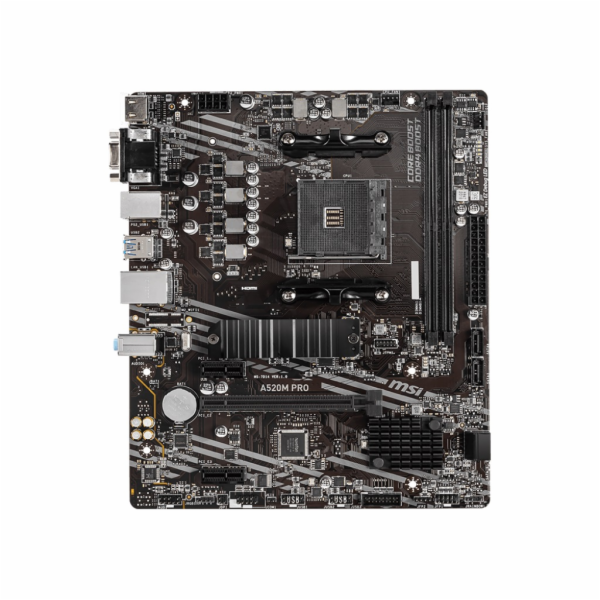

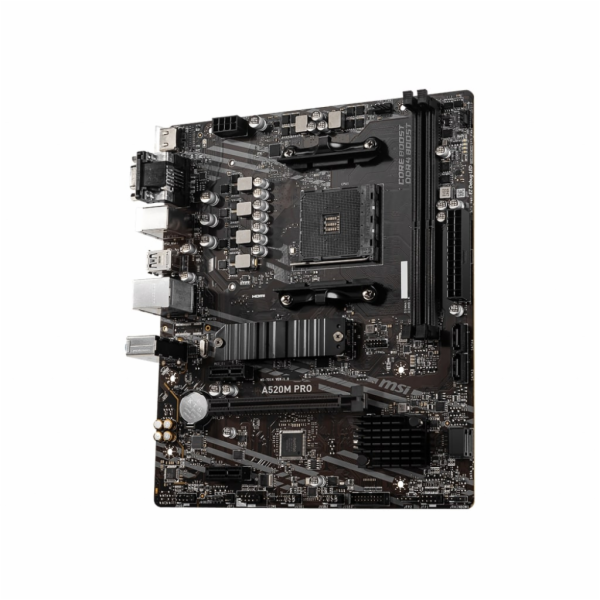

A520M PRO

Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Supports DDR4 Memory, up to 4600(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface


TECHNICAL SPECIFICATIONS



Socket
AM4


CPU Support
Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors


Chipset
AMD A520 Chipset


Memory


2x DDR4 memory slots, support up to 64GB - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4600 MHz - 1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory




Expansion Slot


1x PCIe x16 slot (PCI_E2)
2x PCIe 3.0 x1 slots




Onboard Graphics


1x VGA port, supports a maximum resolution of 2048x1536@50Hz , 2048x1280@60Hz , 1920x1200@60Hz
1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Maximum shared memory of 2048 MB




Storage

AMD A520 Chipset

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor) - M2_1 slot (from AMD Processor) - Supports PCIe 3.0 x4 1 - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices




RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices


USB

AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel




AUDIO

Realtek ALC892 Codec

7.1-Channel High Definition Audio




LAN


1x Realtek RTL8111H LAN controller




Internal Connectors


1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x Serial port connector
1x M.2 slot (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TPM module connector
1x Clear CMOS jumper




Back Panel Ports


VGA
Keyboard / Mouse
LAN port
HDMI
DisplayPort
USB 2.0 Ports
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
Audio Connectors




Dimensions


M-ATX Form Factor
9.6 in. x 8.3 in. (24.4 cm x 21 cm)




Mounting


6 mounting holes




Box Content


A520M Pro
Quick Installation Guide
MSI Case Badge
2x SATA Cables
Product Registration Card
I/O Shielding
Driver DVD




Form Factor
m-ATX


Operating System
Support for Windows 10 64-bit

---
