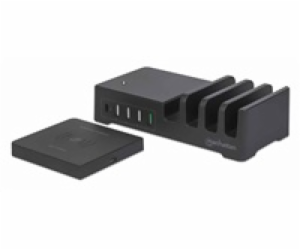

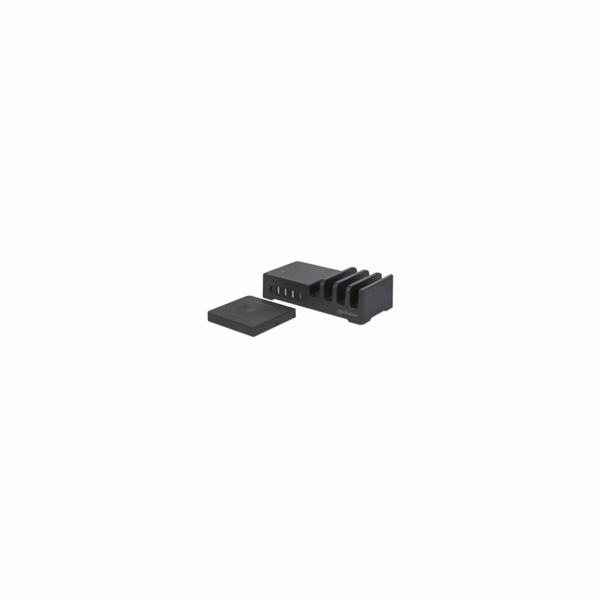

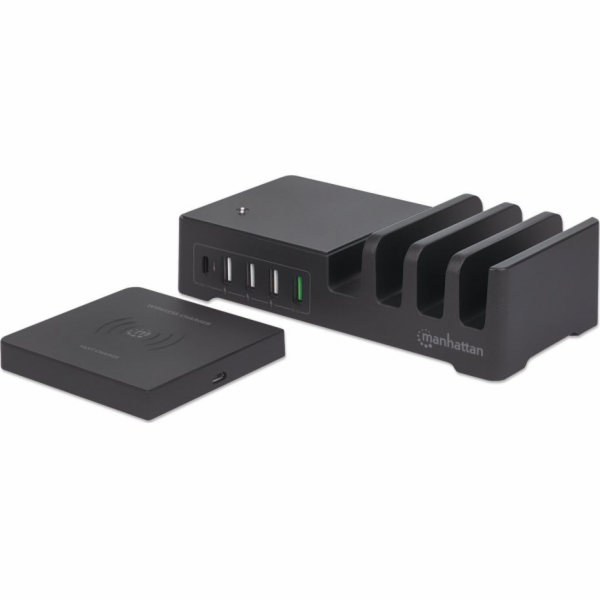

Power Delivery Charging Station with Wireless Charging Pad - 55 W
Enjoy full charging power with the Manhattan PD Charging Station with Wireless Charging Pad - 55 W. The charging station s USB-C port uses PD technology to find out the power needs of your smartphone, tablet or other compatible device and supply it at the fastest, safest rate. The Qualcomm Quick Charge™ 3.0 USB-A port also delivers up to 18 W at the right speed for your device. The next three USB-A ports provide power up to 5 V / 2.4 A.
This Charging Station also includes a detachable 10 W wireless charging pad so you can fast-charge any wireless-charging-supported device. Quickly getting a full charge means setting your device on the charger — no more searching for a free wall charger and cable. The PD Charging Station with Wireless Charging Pad is a perfect power companion with its stylish, compact and ultra-modern design. It also smartly protects itself and your devices from short-circuits, over-voltage, over-current and overheating.

Charging station solution with one USB-C Power Delivery (PD 3.0), one USB-A Quick Charge™ 3.0 Port, three USB-A charging ports and one detachable Qi™-certified 10 W wireless charging pad
Charges different devices simultaneously with optimized power allocation
Detachable 10 W wireless charger
One USB-C Power Delivery port delivering up to 30 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device
One Quick Charge 3.0 USB-A port delivering up to 18 W to charge any portable device
Three USB-A charging ports sharing 36 W with each port charging up to 5 V / 2.4 A
Overload, overcurrent and overheating protection
LED status indicator
Compact and stylish design for the ideal desktop set-up
Three-year warranty


TECHNICAL SPECIFICATIONS



Standards and Certifications
- USB - Power Delivery 3.0 - Qualcomm Quick Charge™ 3.0 - CE - FCC - RoHS - WEEE - ETL


Package Contents
Power Delivery Charging Station with Wireless Charging Pad - 55 W Power cord, 1 m (3.3 ft.) USB-A male to USB micro-B male cable, 1 m (3.3 ft.) Quick Instruction Guide


General
AC input: 100 – 240 V; 50 – 60 Hz USB-C outputs: 5 – 20 V; maximum 3 A; 30 W Voltage/current settings (maximum): - USB-C PD 30 W: - 5 V / 3 A - 9 V / 3 A - 12 V / 2.5 A - 15 V / 2 A - 20 V / 1.5 A - USB-A QC 3.0 18 W: - 3.6 – 6 V / 3 A - 6 – 9 V / 2 A - 9 – 12 V / 1.5 A - USB-A charging ports: - 5 V / 2.4 A - 10 W wireless charging pad: - Input at 5 V / 2 A: 5 W - Input at 9 V / 2 A: up to 10 W


Protection Characteristics
Short-circuit (SCP) with auto-recovery mode Overvoltage (OVP) with auto-recovery mode Overcurrent (OCP) — current limit: 150% (max) Over-temperature (OTP)


Ports
One USB-C Power Delivery (PD 3.0) One USB-A Quick Charge 3.0 Three USB-A charging Detachable 10 W wireless charging pad


Physical


Dimensions
16.9 x 8.3 x 4.62 cm (6.65 x 3.27 x 1.82 in)


Weight
0.582 kg (20.53 oz.)


Housing
plastic


Operating Environment


Operation Temperature
0 – 30°C (32 – 86°F)


Storage Temperature
-20 – 65°C (-4 – 149°F)


Humidity (noncondensing)
10 – 90%


Wireless Charger Compatibility


10 W Fast-Charge Mode
- Samsung Galaxy S7 / S7 Edge / S8 / S8+ / S9 / S9+ / S10 or above - Samsung Note 8 / 9 / 10 or above


7.5 W Mode
- Apple iPhone 8 / 8 Plus / X / XR / XS / XS Max or above


7.5 W Mode
- All other wireless-enabled devices


Wireless Charger System Requirements


Up to 10 W output
- Quick Charge 2.0 / 3.0 charger


5 W
- 5 V / 2 A charger


Input Characteristics


AC rated voltage
100 – 240 V


Frequency range
50 – 60 Hz (+-1 Hz)


Current
<= 1 A at 100 VAC 60 HZ


Output Characteristics


Rated voltage
5 / 9 / 12 / 15 / 20 V


Current
3 A maximum (at constant voltage mode)


Wireless-charging wattage settings (maximum)
5 W / 7.5 W / 10 W


Rated power
55 watts maximum


Overshoot voltage
<=5%

---
