Popis produktu

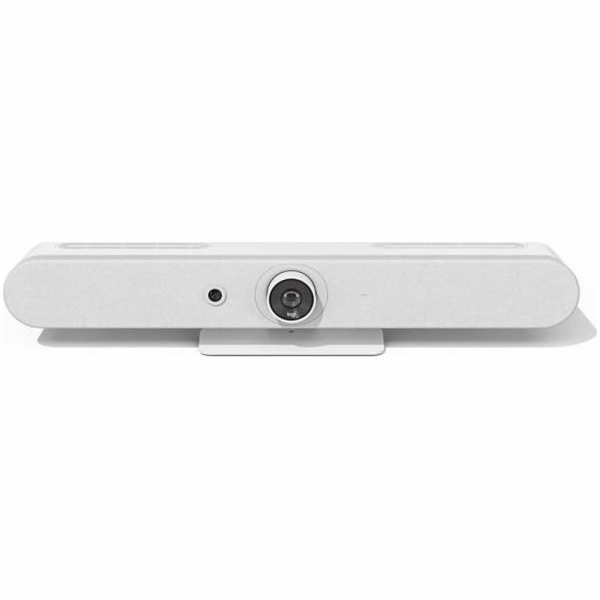

Rally Bar Mini
Premier all-in-one video bar for small rooms
TECHNICAL SPECIFICATION



Dimensions (H x W x D)
91.4 x 719 x 101 mm


Weight
4.03 kg


Package Contents
- Rally Bar Mini - Power supply - AC power cord - HDMI cable - USB cable - Remote control Lens caps for main lens and AI Viewfinder - User documentation


Warranty Information
Standard: 2-year limited hardware warranty included Extended: Additional one-year extended warranty available at the time of hardware purchase. Contact your reseller for availability.


Camera


Resolution
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps


Pan
Motorized ±25°


Tilt
Motorized ±15°


Zoom
4X HD digital zoom


Diagonal field of view (dFoV)
120°


Horizontal Field of View
113°


Vertical Field of View
80.7°


Total Room Coverage
163° Horizontal x 110° Vertical


Speakers


Woofer
70 mm


Mid-range
2x / 1.5 in


Output
90 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at 1 meter


Sensitivity
86+/-2 dB SPL at 1W, 1 meter


THD
1kHz < 2%


Speaker Sampling Rate
48 kHz


Microphones


Frequency response
90Hz – 16kHz


Sensitivity
>-36dBFS +/-1 dB @ 1Pa


Microphone data rate output
48 kHz


Pickup Range
4.5 m


Beamforming Elements
Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams


Audio processing
AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)


Noise suppression
AI filter


Add-on Mics
Supports up to 2 additional Rally Mic Pods


RightSense™ Technologies


RightLight™
Renders natural skin tones for each participant.


RightSight
Maintains persistent room awareness and detects human figures to auto-frame participants.


RightSound
Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo


Interfaces


HDMI Out
2


HDMI In
1


USB 3.0
3 x Type A 1 x Type C


Network
10/100/1G Ethernet


WiFi
802.11a/b/g/n/ac (MIMO)


External Mic Input
Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)


Remote Control
Bluetooth Low Energy


Power & Cables


Power supply
Auto-sensing


Operating Voltage/Power
100-240V, 19V, 4.74A


Power Supply Dimensions
127 x 51 x 30 mm


DC Cable
1.5 m


AC Cable
1 m


HDMI 1.4 Cable
2 m


USB A to USB C 3.0 Cable
2.2 m


Environmental


Operating Temperature
0 to 40°C


Storage Temperature
-40 to 70 °C


Humidity
10 to 95%


BTU/hr
57 idle, 64 in meeting


Security


Full Disk Encryption
AES-128


Data Encryption
Symmetric Keys, PKI


Device Identity
Protected by device attestation


Device Access
Authenticated using API


Key Protection
Arm TrustZone, RPMP


Certifications & Compatibility


Certifications
Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.


Compatibility
Plug and play USB connectivity with virtually any video conferencing application


Appliance mode
Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.


General Specifications


Built-in Components
6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform


Enclosure
All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference


Device Management
Logitech Sync


Displays Supported
2


Display Resolution
Up to 4K

---
