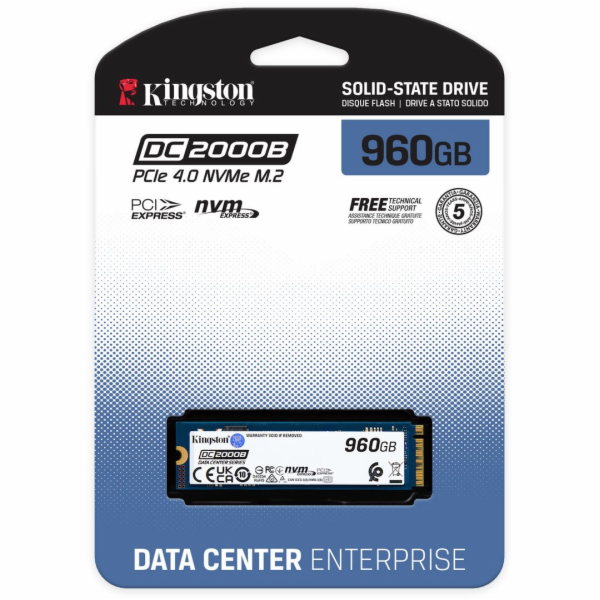

DC2000B PCIe 4.0 NVMe M.2 SSD
Enterprise class for server applications
Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4x4 PCIe interface with 112-layer
3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-
loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes
hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers
broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to
handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write
endurance and carries a five-year warranty.
PCIe 4.0 NVMe Gen 4x4 performance
Hardware-based power loss protection
Latency and IOPS consistency
Designed for data center environments1
Key Features
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.
On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to
unexpected power-off.
Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO
consistency for high duty cycle workloads.
Designed for data center environments
Optimised to meet the demands of server boot applications
with low latency and IO consistency as the key design
criteria.
Specifications
Form factor M.2 2280
Interface PCIe 4.0 x4 NVMe
Capacities 240GB, 480GB, 960GB
NAND 3D TLC
Sequential read/write 240GB – 4500/400 MBs
480GB – 7000/800 MBs
960GB – 7000/1300 MBs
Steady-state 4k read/write 240GB – 260000/18000 IOPS
480GB – 530000/32000 IOPS
960GB – 540000/47000 IOPS
Total bytes written (TBW) 240GB – 175 TBW
480GB – 350 TBW
960GB – 700 TBW
Key Features
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.
tency read (avg) 240GB-960GB: 70µs
Latency write (avg) 240GB – 53µs
480GB – 29µs
960GB – 20µs
Power loss protection (power caps) Yes
Enterprise SMART tools Reliability tracking, usage statistics, SSD life remaining, wear levelling,
temperature
Endurance 240GB — (0.4 DWPD/5yrs)
480GB — (0.4 DWPD/5yrs)
960GB — (0.4 DWPD/5yrs)
Power consumption 240GB: Average read: 2.97W Average write: 4.02W Max read: 3.01W Max
write: 4.09W
480GB: Average read: 3.22W Average write: 5.60W Max read: 3.29W Max
write: 5.77W
960GB: Average read: 3.26W Average write: 7.36W Max read: 3.36W Max
write: 7.80W
Storage temperature -40°C ~ 85°C
Operating temperature 0°C ~ 70°C
Dimensions 80mm x 22mm x 8.3mm
Weight 240GB – 9g
480GB – 10g
960GB – 11g

MTBF 2 million hours
Warranty/support Limited five-year warranty with free technical support
SEDC2000BM8
SEDC2000BM8/240G
SEDC2000BM8/480G
SEDC2000BM8/960G
5
Part Numbers4
1. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual

---
