Popis produktu

DIMENSIONS

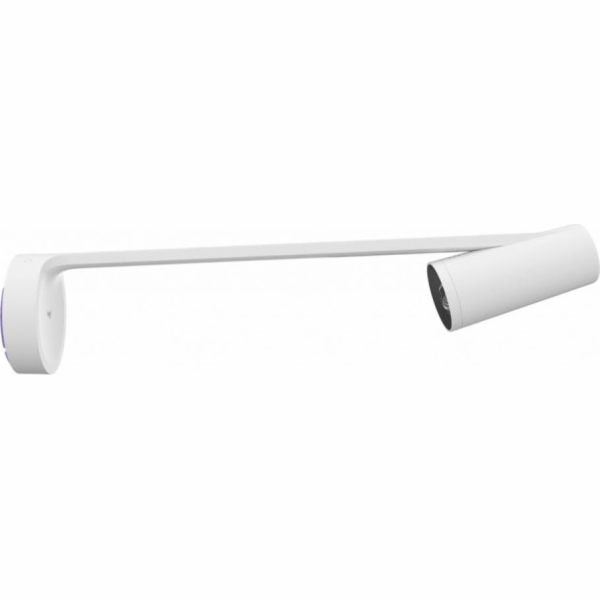

Camera

Height: 149 mm
Width: 119 mm
Depth: 573 mm
Weight: 1.1 kg



Share Button

Height: 12.7 mm
Diameter: 71.8 mm
Weight: 108 g



Power Injector

Height: 91 mm
Width: 60.2 mm
Depth: 36.3 mm



Dongle Transceiver

Height: 22.5 mm
Width: 31 mm
Depth: 83.7 mm
Cable length: 500 mm



Included Cabling (x2)

Length: 5 m






SYSTEM REQUIREMENTS


Whiteboard

Maximum Whiteboard Dimensions

Height: 1.2 m
Width: 2 m





Customer-Supplied Cabling

Cable Type: Cat5e or higher [up to 35 meters in total length]






TECHNICAL SPECIFICATIONS


Certifications & Compatibility

Integrates with Microsoft Teams Rooms on Windows and Zoom Rooms (Windows or macOS) as a whiteboard content camera.
See www.logitech.com/support/scribe-compatibility for pending and granted certifications and compatibility updates.
Compatible with virtually any video conferencing application as a USB-connected camera.



Camera

Output Resolution: 1080p at 15 fps
Built-In AI: Broadcasts AI-enhanced image stream into video meetings



Share Button

Power: 2 x CR2032 battery
Adhesive-backed mounting
Share button support may vary by video conferencing service provider.
See www.logitech.com/support/scribe-compatibility for latest information.



Interfaces

Camera: Category Cable Port
Share Button: Bluetooth Low Energy



Power & Cables

Power supply: 100-240V auto-switching power supply with international adaptor set
Cable Type: Cat5e SF/UTP AWG26 or higher



Environmental

Operating Temperature: 0-40°C
Storage Temperature: -40-70°C
Humidity: 10-95%



Security

Full Disk Encryption: AES-128



Device Management

Logitech Sync






PACKAGE CONTENTS



Camera
Share Button
Dongle Transceiver
100-240v Power Supply with International Adaptor Set
5.0 m Cat5e Cables x 2
Camera Installation Kit
Documentation






WARRANTY INFORMATION


Standard: 2-year limited hardware warranty included. Extended: Additional one-year extended warranty available at the time of hardware purchase. Contact your reseller for availability.





PART NUMBER



960-001332

---
