Popis produktu

Launch Date Q1 16
Status Launched
Expected Discontinuance Q4 17
Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Additional Extended Warranty Details Dual Processor System Extended Warranty
Compatible Product Series Intel® Xeon® Processor E5-2600 v4 Family
Chassis Form Factor 2U Rack
Chassis Dimensions 16.93" x 27.95" x 3.44"
Board Form Factor Custom 16.7" x 17"
Rack Rails Included No
Socket Socket R3
System Board Intel® Server Board S2600WT2R
Board Chipset Intel® C612 Chipset (Intel® DH82029 PCH)

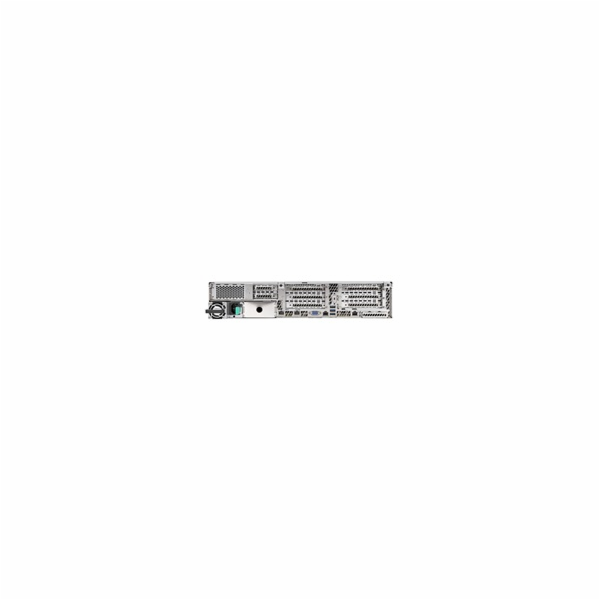

Description Integrated 2U system featuring an Intel® Server Board S2600WT2R supporting eight 2.5 inch hot-swap drives, dual 1-GbE LAN, 24 DIMMs, and one 1100W redundant-capable power supply; DC power supply option available and sold separately.
Target Market Cloud/Datacenter
Rack-Friendly Board Yes
Power Supply 1100 W
Power Supply Type AC
# of Power Supply Included 1
Redundant Fans Yes
Redundant Power Supported Supported, requires additional power supply
Heat Sink 2
Heat Sink Included Yes
Backplanes Included
Included Items (1) Intel® Server Board S2600WT2R w/ Dual 1GbE; (1) front I/O panel assembly (front 1xVGA and 2x USB); (1) airduct; (1) standard control panel board (FXXFPANEL); (1) ODD bay for SATA Optical drive bay with filler panel (Include: optical drive mounting latch kit and 300mm optical drive / internal mount SSD power cable); (8) 2.5 inch hot-swap drive carriers (FXX25HSCAR); (1) 12Gb SAS backplane (FXX8X25S3HSBP); (2) 730mm SAS/SATA Multiport data cable with straight SFF8643 to straight SFF8643 connectors (AXXCBL730HDHD); (2) processor heatsinks (FXXCA84X106HS); (6) redundant and hot-swap cooling fans (FR2UFAN60HSW); (2) risers with 3x8 PCIe* 3.0 slots on each (2x FHFL 1x FHHL) (A2UL8RISER2); (1) riser with 1x8 PCIe* 3.0 slot and 1x4 PCIe* 2.0 slot (A2UX8X4RISER); (1) battery backup unit bracket with three mounting locations over the airduct; (1) 1100W AC power supply (FXX1100PCRPS)
# of Front Drives Supported 8
Front Drive Form Factor Hot-swap 2.5"
Recommended Customer Price N/A
-
Memory Specifications
Memory Types DDR4-1600/1866/2133/2400
Max # of DIMMs 24
Max Memory Size (dependent on memory type) 1536 GB
-
Graphics Specifications
Integrated Graphics ‡ Yes
-
Expansion Options
PCIe x4 Gen 3 1
PCIe x8 Gen 3 7
PCIe x4 Gen 2.x 1
Connector for Intel® I/O Expansion Module x8 Gen 3 1
Connector for Intel® Integrated RAID Module 1
-
I/O Specifications
# of USB Ports 5
Total # of SATA Ports 10
RAID Configuration SW RAID 0, 1, 10, optional 5
# of Serial Ports 2
Integrated LAN 2x 1-GbE
# of LAN Ports 2
Optical Drive Support Yes
Integrated SAS Ports 0
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated InfiniBand* No
-
Package Specifications
Max CPU Configuration 2
-
Advanced Technologies
Intel® Remote Management Module Support Yes
Integrated BMC with IPMI IPMI 2.0 with OEM extensions
Intel® Node Manager Yes
Intel® On-Demand Redundant Power Yes
Intel® Advanced Management Technology Yes
Intel® Server Customization Technology Yes
Intel® Build Assurance Technology Yes
Intel® Efficient Power Technology Yes
Intel® Quiet Thermal Technology Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology No
Intel® Rapid Storage Technology enterprise Yes
Intel® Quiet System Technology Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® I/O Acceleration Technology Yes
-
Intel® Transparent Supply Chain
TPM Version 1.2, 2.0

---
