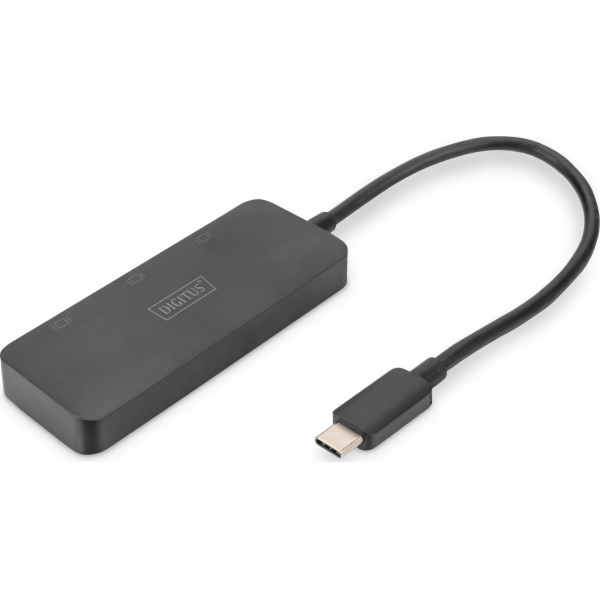

Digitus DS-45334 DIGITUS USB-C - 3x DP MST Video Hub DP 1.4, 4K/60Hz
1414 Kč
1169 Kč bez DPH
Dostupnost: Skladem-dodání 2-4 dní
Part no.: DS-45334
Kód produktu: 106978219
Výrobce: Digitus
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Typ 2: DisplayPort
Počet typu 2: 3x
Typ: 1x USB-C
Barva: černá
Šířka (mm): 36
Výška (mm): 11,5
Hloubka (mm): 252
Hmotnost (g): 51
DIGITUS 3-Port MST Video Hub USB-C/3x DisplayPort 4K/60Hz
The DIGITUS MST Hub utilizes Multi Stream Transport (DisplayPort 1.2 function), which allows multiple AV signals to be transported over a single cable. This allows the use of multiple monitors connected via the MST Hub configuration. The MST Hub can distribute different video streams to the three connected monitors. In general, three playback modes are supported: Mirror (1 signal mirrored to 3 displays), Extend (3 signals to 3 displays), Distribute (1 signal distributed across 3 displays).
Features:
1x USB-C input
3x DisplayPort output
Supports DP 1.4 (Alt Mode) with max 8.1 Gbps per channel, max 32.4 Gbps on 4 channels
Supports Windows OS (11, 10)
Resolutions 3 external monitors - MST Mode: max. 1x 4K/60Hz + 2x 4K/30Hz
Resolutions 2 external monitors - MST Mode: max. 2x 4K/60Hz
Power supply via USB-C connector - BUS powered
No drivers or software required - configuration via display settings in Windows OS
Supports 3 display modes: mirror (1 signal mirrored to 3 displays), extend (3 signals to 3 displays), distribute (1 signal distributed across 3 displays)
HDCP 2.2 & 1.4
Supports HDR (High Dynamic Range)
Supports MST (Multi Stream Transport) & SST (Single Stream Transport)
Housing: ABS
Operating temperature: 0-45
Stand-by power consumption: approx. 1 W
Color: Black
Supports AMD, Nvidia and Intel graphics cards
Dimensions (L x W x H): 25.2 x 3.6 x 1.15 cm
Weight: 51 g
Notes:
To achieve the above resolutions, the host PC should support DP 1.4 (Alt Mode). If your PC only supports DP 1.2, the corresponding resolutions will be reduced due to bandwidth limitations.
The above mentioned resolution combinations serve as theoretical reference, the actual resolutions depend on the connected host PC as well as the displays.
To use the full functionality make sure that your device (graphics card) uses DP 1.4
If you use a DisplayPort 1.1 graphics card, the MST hub acts as a splitter and mirrors your video source on all displays
Functionality may be limited depending on your device and operating system specifications
MST hubs cannot increase the number of displays supported by a graphics card. Each graphics card has a limited number of screens it can support. Please check your specifications in advance.
Requires at least one host system with DP 1.2/HBR2/MST or higher (recommended)
Popis produktu
Elektr. napájecí zdroj: přes USBTyp 2: DisplayPort
Počet typu 2: 3x
Typ: 1x USB-C
Barva: černá
Šířka (mm): 36
Výška (mm): 11,5
Hloubka (mm): 252
Hmotnost (g): 51
DIGITUS 3-Port MST Video Hub USB-C/3x DisplayPort 4K/60Hz
The DIGITUS MST Hub utilizes Multi Stream Transport (DisplayPort 1.2 function), which allows multiple AV signals to be transported over a single cable. This allows the use of multiple monitors connected via the MST Hub configuration. The MST Hub can distribute different video streams to the three connected monitors. In general, three playback modes are supported: Mirror (1 signal mirrored to 3 displays), Extend (3 signals to 3 displays), Distribute (1 signal distributed across 3 displays).
Features:
1x USB-C input
3x DisplayPort output
Supports DP 1.4 (Alt Mode) with max 8.1 Gbps per channel, max 32.4 Gbps on 4 channels
Supports Windows OS (11, 10)
Resolutions 3 external monitors - MST Mode: max. 1x 4K/60Hz + 2x 4K/30Hz
Resolutions 2 external monitors - MST Mode: max. 2x 4K/60Hz
Power supply via USB-C connector - BUS powered
No drivers or software required - configuration via display settings in Windows OS
Supports 3 display modes: mirror (1 signal mirrored to 3 displays), extend (3 signals to 3 displays), distribute (1 signal distributed across 3 displays)
HDCP 2.2 & 1.4
Supports HDR (High Dynamic Range)
Supports MST (Multi Stream Transport) & SST (Single Stream Transport)
Housing: ABS
Operating temperature: 0-45
Stand-by power consumption: approx. 1 W
Color: Black
Supports AMD, Nvidia and Intel graphics cards
Dimensions (L x W x H): 25.2 x 3.6 x 1.15 cm
Weight: 51 g
Notes:
To achieve the above resolutions, the host PC should support DP 1.4 (Alt Mode). If your PC only supports DP 1.2, the corresponding resolutions will be reduced due to bandwidth limitations.
The above mentioned resolution combinations serve as theoretical reference, the actual resolutions depend on the connected host PC as well as the displays.
To use the full functionality make sure that your device (graphics card) uses DP 1.4
If you use a DisplayPort 1.1 graphics card, the MST hub acts as a splitter and mirrors your video source on all displays
Functionality may be limited depending on your device and operating system specifications
MST hubs cannot increase the number of displays supported by a graphics card. Each graphics card has a limited number of screens it can support. Please check your specifications in advance.
Requires at least one host system with DP 1.2/HBR2/MST or higher (recommended)
