Popis produktu

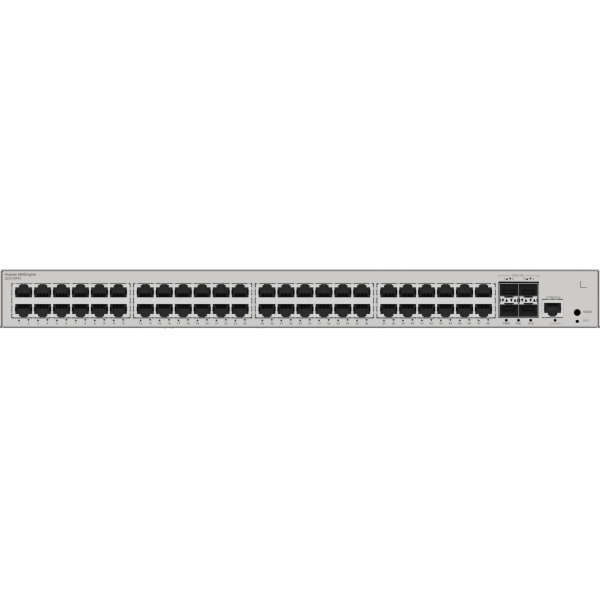

Huawei S220-48P4X Switch (48*GE ports(380W PoE+), 4*10GE SFP+ ports, built-in AC power)


Based on the next-generation high-performance hardware and software platform, Huawei eKitEngine S220 series switches stand out with features such as flexible Ethernet networking, and diversified security control. In addition, eKitEngine S220 series switches support delivering higher performance and more powerful service processing capabilities. These make them
ideal for various application scenarios, such as enterprise campus access and gigabit to the desktop


Switching capacity
176 Gbps
Packet forwarding
131 Mpps
Fixed port
48 x 10/100/1000BASE-T PoE+ ports, 4 x 10GE SFP+
port
Chassis dimensions (H x W x D)
43.6 mm x 442 mm x 220 mm
Chassis height
1 U
Weight in full configuration (including packaging materials)
4,29 kg
Power module type
Built-in AC power module
Rated voltage
100 V to 240 V AC, 50/60 Hz
Maximum power consumption
Without PoE: 64.7 W
With PoE: 462.8 W (PoE: 380 W)
Input voltage range [V]
� AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Noise
Sound power at normal temperature: 49,3 dB (A)
�Sound power at high temperature: 63 dB (A)
�Sound pressure at normal temperature: 37,3 dB (A)

irst supported version
V600R023C00
Integrated fixed device
Y
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]
1
Installation type
Rack mounting,Desk mounting,Wall mounting
Chassis material
Metal
Weight without packaging [kg(lb)]
3.24 (7.14)
Weight with packaging [kg(lb)]
4.29 (9.46)
Typical power consumption [W]
49.44
Typical heat dissipation [BTU/hour]
168.69
Maximum power consumption [W]
- Without PoE: 64.7 W - Full PoE load: 462.80 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]
- Without PoE: 220.76 - Full PoE load: 1579.12
Static power consumption [W]
34.04
100% power consumption [W]
49.44
MTBF [year]
48.14
MTTR [hour]
2
Availability
> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]
49.3
Noise at high temperature (acoustic power) [dB(A)]
63
Noise at normal temperature (acoustic pressure) [dB(A)]
37.3
Number of fans modules
2
Maximum number of physical ports on the entire device
52
Maximum number of 10GE ports
4
Maximum number of GE ports
52
Maximum number of FE ports
48
Uplink ports
4 x 10GE SFP+ ports
Downlink ports
48 x 10/100/1000BASE-T ports (380 W, PoE+)
Dedicated stack port
Not supported
Redundant power supply
Not supported
Long-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used.
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]
0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Power supply mode
AC built-in
Rated input voltage [V]
- AC input: 100 V AC to 240 V AC, 50/60 Hz - High-voltage DC input: 240 V DC
Input voltage range [V]
- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]
6 A
CPU
1.1 GHz, 2 cores
Memory
2 GB
Flash memory
Physical space: 1 GB
Console port
RJ45
Eth Management port
Not supported
USB
Not supported
Service port surge protection [kV]
Common mode: ±7 kV
Power supply surge protection [kV]
Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)
IP20
Types of fans
Built-in
Heat dissipation mode
Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction
Air intake from left and air exhaust from right
PoE
Supported
Maximum PoE power consumption [W]
380
PoE+ power interfaces
48
Full load PoE power consumption 15.4W (802.3af)
24
Full load PoE power consumption 30W (802.3at)
12
Certification
EMC certification Safety certification Manufacturing certification

---
