Popis produktu

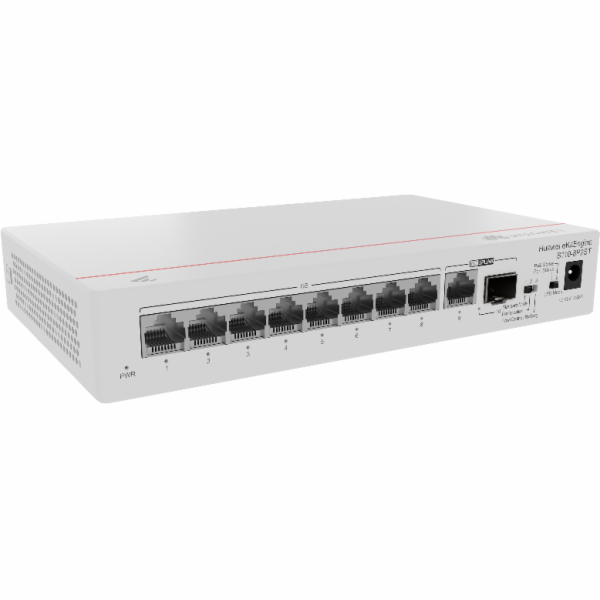

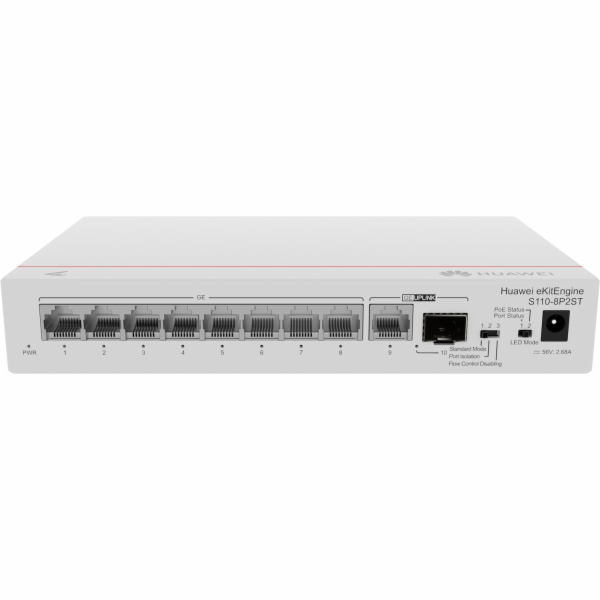

S110-8P2ST (8*10/100/1000BASE-T ports, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, 220v AC power, power adapter)


RTC
Not supported
Integrated fixed device
Y
Dimensions without packaging (H x W x D)
Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.)
Dimensions with packaging (H x W x D)
150.0 mm x 270.0 mm x 200.0 mm (5.91 in. x 10.63 in. x 7.87 in.)
Chassis height
0.8
Installation type
Desk mounting,Wall mounting
Weight without packaging
1.11 (2.45)
Weight with packaging
1.46 (3.22)
Typical power consumption
11
Typical heat dissipation
37.53
Maximum power consumption
Without PoE: 11 W Full PoE load: 155 W (PoE: 124 W)
Maximum heat dissipation
- Without PoE: 37.53 - Full PoE load: 528.88
Static power consumption
3
100% power consumption
11
MTBF
78.77
MTTR
2
Availability
>0.99999
Noise at normal temperature (acoustic power)
Noise-free (no fans), < 30
Noise at high temperature (acoustic power)
Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)
Noise-free (no fans), < 20
Number of card slots
0
Number of power slots
0
Number of fans modules
0
Maximum number of physical ports on the entire device
10
Maximum number of 100GE ports
0
Maximum number of 40GE ports
0
Maximum number of 25GE ports
0
Maximum number of 10GE ports
0
Maximum number of 5GE ports
0
Maximum number of 2.5GE ports
0
Maximum number of GE ports
10
Maximum number of FE ports
10
Dedicated stack port
Not supported
Redundant power supply
Not supported
Long-term operating temperature
0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity
5% RH to 95% RH (non-condensing)
Long-term operating altitude
0–5000 m (0–16404 ft.)
Storage altitude
0-5000 m (0-16404 ft.)
Power supply mode
Power adapter
Rated input voltage
Power adapter input: 170–240 V AC; 50/60 Hz Power adapter output: 56 V DC
Input voltage range
Power adapter input: 170–264 V AC; 47–63 Hz
Maximum input current
2.68 A
CPU
-
Memory
-
Flash memory
-
Console port
Not supported
Eth Management port
Not supported
USB
Not supported
Hardware real-time power detection
Not supported
RPS input
Not supported
Complete device sleeping
Not supported
Service port surge protection
Common mode: ±4 kV
Power supply surge protection
Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)
IP20
Types of fans
None
Heat dissipation mode
Natural heat dissipation
Airflow direction
-
PoE
Supported
Maximum PoE power consumption
124
PoE+ power interfaces
8
PoE++ power interfaces
-
Full load PoE power consumption 15.4W (802.3af)
8
Full load PoE power consumption 30W (802.3at)
4
Full load PoE++ power consumption 60W (802.3bt)
-
Full load PoE++ power consumption 90W (802.3bt)
-
Certification
EMC certification Safety certification Manufacturing certification

---
