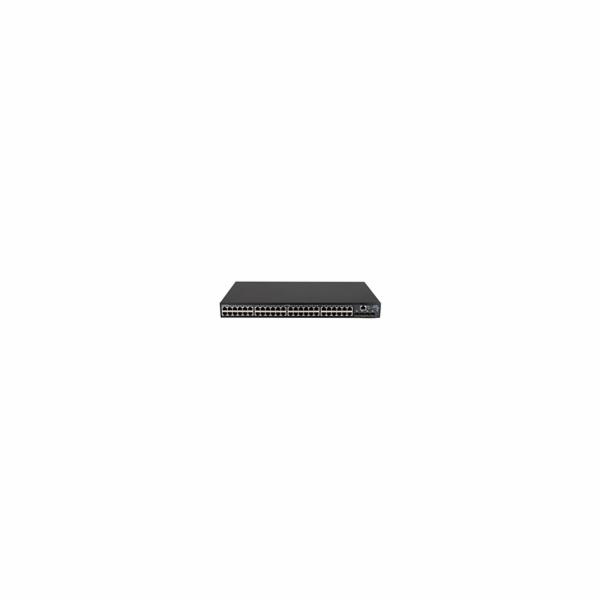

HPE Networking Comware Switch 48G 4SFP+ EI 5140 JL829AR RENEW
HPE Networking Comware Switch 48G 4SFP+ EI 5140 JL829AR RENEW
43169 Kč
35677 Kč bez DPH
Dostupnost: Skladem v eshopu
Part no.: JL829AR#ABB
Kód produktu: 116695706
Výrobce: Hewlett Packard Enterprise
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
The HPE Networking Comware Switch Series 5140 EI comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
HPE FlexNetwork 5140 48G 4SFP+ EI Switch (JL829A)
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ fixed 1000/10000 SFP+ ports
Additional ports and slots
1 RJ-45 serial console port
Physical characteristics
Dimensions
17.32(w) x 9.04(d) x 1.72(h) in (44 x 23 x 4.36 cm) (1U height)
Weight
7.72 lb (3.5 kg)
Memory and processor
512 MB SDRAM, 256 MB flash
Mounting and enclosure
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)
Performance
IPv6 Ready Certified
1000 Mb Latency
< 5 µs
10 Gbps Latency
< 3 µs
Throughput
131 Mpps
Routing/Switching capacity
176 Gbps
Routing table size
1024 entries
MAC address table size
16384 entries
Environment
Operating temperature
23°F to 113°F (-5°C to 45°C)
Operating relative humidity
10% to 90%, noncondensing
Non-operating/Storage temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity
5% to 95%, noncondensing
Acoustic
Low-speed fan: 42.2 dB, High-speed fan: 49.3 dB; ISO 7779
Electrical characteristics
Frequency
50/60 Hz
Maximum heat dissipation
130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max
Voltage
100 - 240 VAC
-48 to -60 VDC
Current
10 A
Maximum power rating
44 W
Idle power
38 W
Notes:
- Idle power is the actual power consumption of the device with no ports connected.
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
- Power ratings for AC power indicated above. Current used is 5A Max when DC Power used. For DC input power, idle power is 38W, maximum DC power used is 50W.
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Emissions
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993
Immunity
Generic
EN 55024
ESD
EN300 386
Management
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Models
HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140
JL823A
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
JL824A
HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
JL825A
HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140
JL826A
HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140
JL827A
HPE Networking Comware Switch 24G 4SFP+ EI 5140
JL828A
HPE Networking Comware Switch 48G 4SFP+ EI 5140
JL829A
HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140
R8J41A
HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
R8J42A
Key features
Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks and POE+ models for voice, video and wireless
IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices
Embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC)
Energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports
Standard Features
Software-defined networking
OpenFlow Supports OpenFlow 1.3 specification to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
Broadcast control Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Advanced classifier-based QoS
Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch
Powerful QoS feature Supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR
Traffic policing Supports Committed Access Rate (CAR) and line rate
Connectivity
Auto-MDIX Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Flow control Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
High-density connectivity Provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switch
IEEE 802.3at Power over Ethernet (PoE+) support
Simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location
Ethernet operations, administration and maintenance (OAM) Detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices
Resiliency and high availability
Separate data and control paths Separate control from services and keeps service processing isolated; increases security and performance
External redundant power supply Provides high reliability
Smart link Allows 100 ms failover between links
Spanning Tree/MSTP, RSTP, PVST+, RPVST+ Link redundancy with support for protocols such as Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), Per-VLAN Spanning Tree (PVST+), Rapid Per-VLAN Spanning Tree (RPVST+), and Smart Link provides high availability
Intelligent Resilient Fabric (IRF)
Creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be pa...
