Popis produktu

Typ pohonu: Čtyřhranná nástrčka
Velikost nástrčné hlavice (v palcích): 1/4 + 1/2
Typ: Sada nástrčných klíčů
Rozsah použití: univerzální
Set: ano
Počet dílů: 92
Materiál: Ocel / plast
Barva: stříbrná / červená
Hmotnost (g): 5870

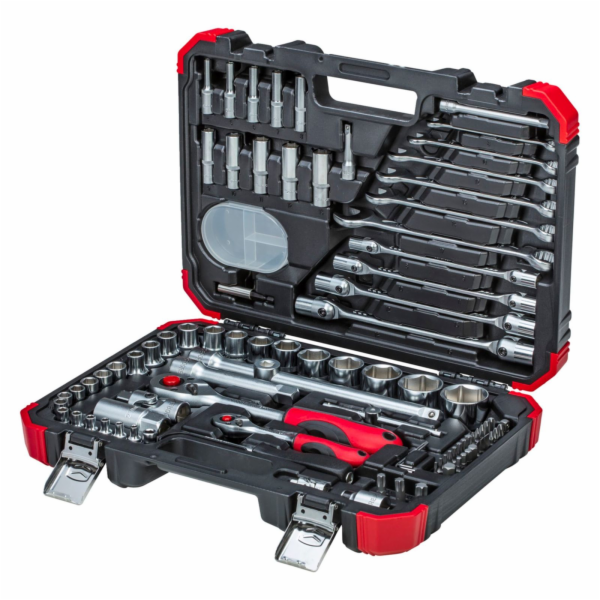

GEDORE red socket spanner set 1/4" + 1/2" 92 pieces

Scope of delivery:


Connection square drive to DIN 3120, ISO 1174, with ball catch groove
Internal square drive to DIN 3120, ISO 1174, with ball catch groove
2C reversible ratchet, right/left rotation reversible by lever, push button release, fine toothing, oval head, 2-component handle, hand-friendly power transmission, for sockets
Square socket 1/4", 1-component handle with square socket
Socket 1/4" + 1/2", hexagonal, metric, design according to DIN 3124, ISO 2725
Spark plug socket 1/2", with pressed-in retaining rubber and additional drive hexagon SW 23
Socket spanner extension 1/4"+1/2"
Cross handle with sliding piece 1/4", design according to DIN 3122, ISO 3315
Cardan joint 1/4"+ 1/2", joint screwed, design according to DIN 3123 - C 12.5
Enlargement adapter/sliding piece 3/8" x 1/2", for driving sockets and screwdriver bits
Bit adapter 1/4", with hexagon socket and square socket, for all bits and tools with 1/4" hexagon socket
Bit adapter 1/2", with hexagon socket and square socket, for all bits and tools with 5/16" hexagon socket
Bit holder with magnet 1/4", machine-operated, design according to DIN 7427
Bit 1/4", hexagonal, slotted, PH, PZ, TX suitable for holder according to DIN ISO 1173 - D 6,3
Bit 5/16", TX suitable for holders according to DIN ISO 1173 - D 8
Double-ended spanner, 12 mm, metric, screwed joint
Combination spanners, metric, design to DIN 3113, form A, ISO 3318, ISO 7738, ring side angled 15°, jaw position 15
Hexagon socket offset screwdriver set, design to DIN ISO 2936
Small parts magazine, plastic
Ideal for all screwing tasks during maintenance, in the trade or in the workshop
Chrome-vanadium steel, satin chrome-plated
Plastic case in GEDORE red design
Clamp-secured tools
Metal hinges/lock


Technical data:


1/4" 2K lever-action ratchet fine-toothed, 72 teeth, length 150 mm
1/4" square socket, length 165 mm
1/4" hexagon socket SW 4 / 4.5 / 5 / 5.5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 mm
1/4" Socket hexagonal SW 4 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 mm, length 50 mm
1/4" socket extension 50 / 100 mm
1/4" cross handle with slide, length 115 mm
1/4" universal joint, length 32 mm
Bit holder 1/4" hexagonal / 1/4" hexagonal, with magnet, length 60 mm
Bit adapter 1/4" square / 1/4" hexagonal, length 25 mm
Drive adapter 1/4" hexagonal x hexagonal with ball lock, length 25 mm
1/4" bits inner hexagon 3 / 4 5 / 6 / 8 / 10, length 25 mm
1/4" bits slotted 4 / 5,5 / 7, length 25 mm
1/4" bits cross recess PH 0 / 1 / 2 / 3 / 4, length 25 mm
1/4" bits cross recess PZ 1 / 2 / 3, length 25 mm
1/4" bits TX T8 / T10 / T15 / T20 / T25 / T27 / T30 / T40, length 25 mm
5/16" bits TX T45 / T50 / T55, length 30 mm
1/2" 2K lever ratchet fine toothing, 72 teeth, length 250 mm
1/2" Hexagon socket SW 10 / 11 / 12 / 13 / 14 / 15 / 17 / 19 / 22 / 24 / 27 / 30 / 32 mm
1/2" Spark plug socket 21 mm (13/16"), length 65 mm
1/2" socket spanner extension 125 / 250 mm
1/2" universal joint, length 65 mm
Enlargement piece / sliding piece 3/8" x 1/2", length 44 mm
Bit adapter 1/2" square x 5/16" hexagon, length 38 mm
Double ended spanner SW 8x9 / 10x11 / 12x13 / 14x15 mm
Combination spanner SW 8 / 10 / 12 / 13 / 14 / 17 mm
Allen key hexagon SW 1.5 / 2 / 2.5 mm

---

Přes veškerou snahu zajistit co nejpřesnější popis, obrázky a technické parametry produktů nemůžeme zaručit, že uváděná data odpovídají skutečnosti. Řada výrobců si vyhrazuje právo změny některých parametrů či vlastností bez předchozího upozornění. Potřebujete-li ujištění o určitých parametrech produktu nebo v případě pochybností, kontaktujte prosím svého obchodníka. Pozdější reklamace vlastností je zbytečnou komplikací pro obě strany.
