Popis produktu

Železné kovy: ano
Neželezné kovy: ano
Dřevěné konstrukce: ano
Živé kabely: ano
Plastové trubky naplněné vodou: ne
Plastové trubky, prázdné: ne
Typ baterie / aku: Lithium-Ionen
Potřebný počet baterií: 1
Včetně baterií: ano
Typ: Detektor šroubů
Barva: černá / fialová
Šířka (mm): 63
Výška (mm): 139
Hloubka (mm): 25
Hmotnost (g): 146
Maximální hloubka umístění (mm): 120
Hloubka detekce oceli (mm): 120
Hloubka detekce živého kabelu (mm): 50
Hloubka detekce dřevěné spodní konstrukce (mm): 38
vypínací automatika: ano

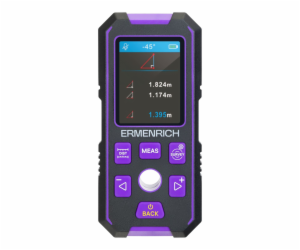

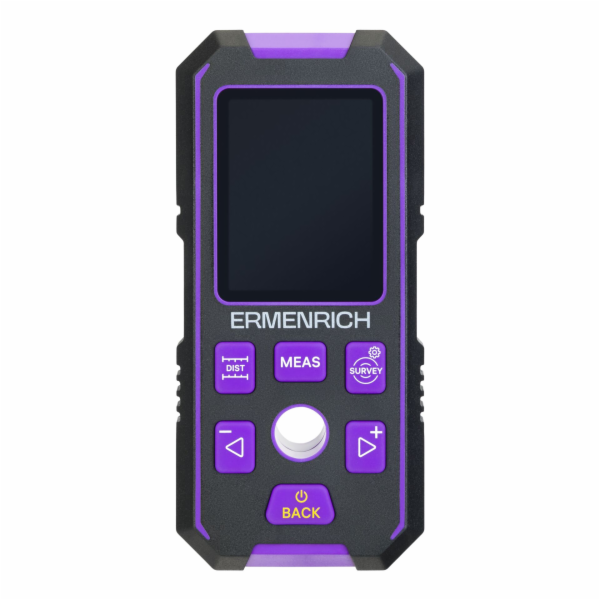

Ermenrich Ping SM90 bolt detector, black / purple, USB-C

Ermenrich Ping SM90 is a 3-in-1 device that combines the functions of a stud detector, a laser tape measure and a digital spirit level. This makes it a multifunctional tool for home renovation, construction site work, installation of appliances and wall finishing. The simple operation makes it easier to use the device at home. A wide range of functions solves the tasks of professional craftsmen and builders.

In laser tape measurement mode, the device can measure the linear dimensions (length, width, height) in a range of 20 cm to 40 m and with an accuracy of 1.5 mm. There is also a calculation mode where the device measures area and volume, and performs other calculations using formulas. The device can take individual measurements or work in scan mode, and the results are stored in the built-in memory of the device. As a digital spirit level, the Ermenrich Ping SM90 measures angles from 90° to +90°. In bolt detector mode, it locates current-carrying cables in walls, iron and non-iron metal objects as well as wooden bolts.

The device has a compact design and comes in a bag so you can take it with you on your travels. The power source is a rechargeable battery.

Features:


Three functions in one device: bolt detector, laser tape measure, digital spirit level
Single and continuous measurements, length measurements, volume and area calculations, calculations using formulas
Digital spirit level for angle measurements in the range from 90° to +90°
Detector for detecting metal objects, wooden bolts and electrical cables hidden in walls
Portable design, shockproof housing, power supply via rechargeable battery
Stud detector
USB cable type-c


Technical data:


Laser measuring devices
Mode measure single distance
Scan mode
Measuring range: 0.2 - 40 m
Units of measurement: m, ft, in, ft + in
Measurement accuracy:  1.5
Measure area
Measure volume
Function Pythagoras sentence
Addition and subtraction
Laser target marker: class 2, <1 mW, 630 - 670 nm
Memory: up to 50 measurements
Stud detector
Detection mode for metal and wood bolts
Maximum detection depth of metal/wood bolts: 38 mm
Detection mode for power-carrying cables
Maximum depth of detection: 50 mm
Metal mode
Maximum depth of detection (metal): 100mm(non-ferrous metals), 120mm(ferrous metals)
Digital spirit level
Working area:  90°
LCD display: HD color, 2.4 inch, resolution 240x320 pixels
Calibration: automatic
Audible warnings
Power source: Charge via a 5V, 1A DC adapter (not included) and USB-C cable (included), 500mAh lithium battery
Low battery indicator
Automatic shutdown
Housing: polycarbonate, robust ABS plastic
Temperature range: 0 to +40 °C
Lithium battery: 500 mAh
Dimensions: 63 x 25 x 139 mm
Weight: 146 g
Colour: black / purple

---
