Ermenrich Ping ES20 Wall Pipe Blockage Detector
Ermenrich Ping ES20 Wall Pipe Blockage Detector
1677 Kč
1386 Kč bez DPH
Dostupnost: Skladem
Part no.: 82542
Kód produktu: 110747588
Výrobce: Ermenrich
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Neželezné kovy: ano
Plastové trubky naplněné vodou: ano
Plastové trubky, prázdné: ano
Typ baterie / aku: Lithium-Ionen
Včetně baterií: ano
Provozní doba (Min.): 240 - 600
Typ: Verstopfungsdetektor
Maximální hloubka umístění (mm): 20000
vypínací automatika: ano
Ermenrich Ping ES20 Wall Pipe Clogging Detector
The Ermenrich Ping ES20 Wall Pipe Blockage Detector is designed to locate blockages in metallic and non-metallic pipes made of steel, copper, iron, PVC, plastic or cement. It is a great device for checking the condition of water and sewage pipes, both for professional and private use.

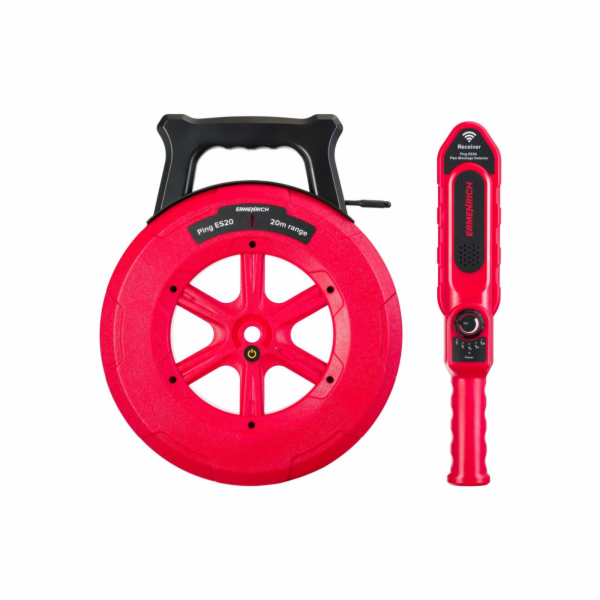

The device consists of a transmitter (remote sensor) and a receiver. The sensor on a 20 meter long cable is inserted into the pipe and moved in it until it stops due to the blockage in the pipe. Then run the receiver along the tube - the device then emits a beep near the blockage and starts flashing. The closer the receiver gets to the sensor, the stronger the signal and the louder the beep.
The sensor corresponds to protection class IP67 and is therefore suitable for short-term immersion in water when inspecting pipes. It comes with an accessory kit that allows you to repair the sensor if it has been damaged in the pipe. The maximum range of the receiver is 150 mm for metal pipes and 400 mm for non-metal pipes. There is an option to adjust the sensitivity, both the receiver and the transmitter are powered by rechargeable batteries. The sensor works up to 10 hours with a single charge, the receiver up to 4 hours.
Features:
Application: PVC/ plastic/ steel/ copper/ cement/ iron pipes
Inspection of pipes of different materials: metal and non-metal pipes
A remote-controlled, waterproof sensor for inspecting pipes up to 20 meters in length
The maximum range from which the receiver can receive the signal of the sensor: 150 mm (for metal pipes) and 400 mm (for non-metal pipes)
Audible and visual warning signals when a blockage is detected, receiver sensitivity setting
Powered by a rechargeable battery
USB-C cable
Consists of: transmitter, receiver, earphones
Technical data:
Distance non-metal pipe: 0 - 400 mm / metal pipe: 0 - 150 mm
Cable length: 20 meters
Waterproof probe (protection class IP67): dust protection; protection against short immersion in water (sensor only
Operating frequency: 300 Hz
Automatic switch-off: transmitter: 1 hour/ receiver: 30 min.
Temperature range: 10...+ 40 °C (operation) / -10...+ 50 °C (storage)
Power supply transmitter: integrated lithium battery (18650), 3.7 V, 2600 mA h / receiver: integrated lithium battery, 3.7 V, 1400 mA h / power supply, 5 V, 1 A (not included) double USB cable type C (supplied)
Battery life: about 4 - 10 hours
Popis produktu
Železné kovy: anoNeželezné kovy: ano
Plastové trubky naplněné vodou: ano
Plastové trubky, prázdné: ano
Typ baterie / aku: Lithium-Ionen
Včetně baterií: ano
Provozní doba (Min.): 240 - 600
Typ: Verstopfungsdetektor
Maximální hloubka umístění (mm): 20000
vypínací automatika: ano
Ermenrich Ping ES20 Wall Pipe Clogging Detector
The Ermenrich Ping ES20 Wall Pipe Blockage Detector is designed to locate blockages in metallic and non-metallic pipes made of steel, copper, iron, PVC, plastic or cement. It is a great device for checking the condition of water and sewage pipes, both for professional and private use.
The device consists of a transmitter (remote sensor) and a receiver. The sensor on a 20 meter long cable is inserted into the pipe and moved in it until it stops due to the blockage in the pipe. Then run the receiver along the tube - the device then emits a beep near the blockage and starts flashing. The closer the receiver gets to the sensor, the stronger the signal and the louder the beep.
The sensor corresponds to protection class IP67 and is therefore suitable for short-term immersion in water when inspecting pipes. It comes with an accessory kit that allows you to repair the sensor if it has been damaged in the pipe. The maximum range of the receiver is 150 mm for metal pipes and 400 mm for non-metal pipes. There is an option to adjust the sensitivity, both the receiver and the transmitter are powered by rechargeable batteries. The sensor works up to 10 hours with a single charge, the receiver up to 4 hours.
Features:
Application: PVC/ plastic/ steel/ copper/ cement/ iron pipes
Inspection of pipes of different materials: metal and non-metal pipes
A remote-controlled, waterproof sensor for inspecting pipes up to 20 meters in length
The maximum range from which the receiver can receive the signal of the sensor: 150 mm (for metal pipes) and 400 mm (for non-metal pipes)
Audible and visual warning signals when a blockage is detected, receiver sensitivity setting
Powered by a rechargeable battery
USB-C cable
Consists of: transmitter, receiver, earphones
Technical data:
Distance non-metal pipe: 0 - 400 mm / metal pipe: 0 - 150 mm
Cable length: 20 meters
Waterproof probe (protection class IP67): dust protection; protection against short immersion in water (sensor only
Operating frequency: 300 Hz
Automatic switch-off: transmitter: 1 hour/ receiver: 30 min.
Temperature range: 10...+ 40 °C (operation) / -10...+ 50 °C (storage)
Power supply transmitter: integrated lithium battery (18650), 3.7 V, 2600 mA h / receiver: integrated lithium battery, 3.7 V, 1400 mA h / power supply, 5 V, 1 A (not included) double USB cable type C (supplied)
Battery life: about 4 - 10 hours
