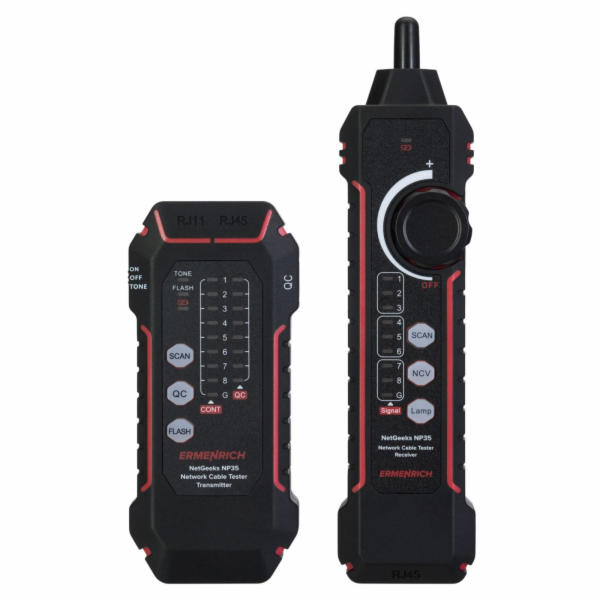

Ermenrich NetGeeks NP35 Network Cable Tester
Ermenrich NetGeeks NP35 Network Cable Tester
1603 Kč
1325 Kč bez DPH
Dostupnost: Skladem, dodání 2-4 dní
Part no.: 82547
Kód produktu: 110747604
Výrobce: Ermenrich
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Napětí baterie (V): 3,7
Typ baterie / aku: Lithium-Ionen
Potřebný počet: 2
Včetně baterií: ano
USB: ano
Typ: Kabeltester
Barva: černá / červená
Hmotnost (g): 490
Ermenrich NetGeeks NP35 Network Cable Tester
The Ermenrich NetGeeks NP35 tester is designed for testing and tracking cables. It enables the detection of installation errors or faults in networks and low-voltage systems: short circuits, interruptions, crossed pairs. The port flash function allows quick identification of the network port to which the tested cable is connected. Other features include quality control of cable connectors and phone line status testing.
The Ermenrich NetGeeks NP35 test device consists of a transmitter and a receiver, both of which are operated with batteries. The receiver has an adjustable sensitivity and can safely locate the voltage source (sockets, cables, machines). The receiver is equipped with a flashlight that allows comfortable working in dark areas, as well as earphones that can be connected to the receiver so as not to be disturbed by excessive external noise.
The device supports STP/UTP (CAT5, CAT6) network and telephone cables. It is suitable for both home and professional use.
Technical data:
Transmitter:
Connections: USB 2.0 (Type C), RJ45, RJ11, QC
Supported cable types: STP/UTP (CAT5, CAT6), network cable
Maximum length of the tested cable: 600 m
Quality testing of cable connectors
Cable tracing
Crosstalk protection
Voltage polarity detection
Power supply: 1400 mAh, 3.7 V lithium polymer battery, charging via USB Type-C cable (included)
Low battery indicator
Temperature range: -10... +40 °C
Operating humidity range: 20...70 %
Receiver / remote unit:
Connections: USB 2.0 (type C), RJ45, earphones
Adjustable sensitivity
Non-contact voltage detection (NCV)
Flashing light
Power supply: 1400 mAh, 3.7 V lithium polymer battery
Charging via USB Type-C cable (included)
Temperature range: -10... +40 °C
Operating humidity range: 20...70 %
Popis produktu
Způsob provozu: Aku baterieNapětí baterie (V): 3,7
Typ baterie / aku: Lithium-Ionen
Potřebný počet: 2
Včetně baterií: ano
USB: ano
Typ: Kabeltester
Barva: černá / červená
Hmotnost (g): 490
Ermenrich NetGeeks NP35 Network Cable Tester
The Ermenrich NetGeeks NP35 tester is designed for testing and tracking cables. It enables the detection of installation errors or faults in networks and low-voltage systems: short circuits, interruptions, crossed pairs. The port flash function allows quick identification of the network port to which the tested cable is connected. Other features include quality control of cable connectors and phone line status testing.
The Ermenrich NetGeeks NP35 test device consists of a transmitter and a receiver, both of which are operated with batteries. The receiver has an adjustable sensitivity and can safely locate the voltage source (sockets, cables, machines). The receiver is equipped with a flashlight that allows comfortable working in dark areas, as well as earphones that can be connected to the receiver so as not to be disturbed by excessive external noise.
The device supports STP/UTP (CAT5, CAT6) network and telephone cables. It is suitable for both home and professional use.
Technical data:
Transmitter:
Connections: USB 2.0 (Type C), RJ45, RJ11, QC
Supported cable types: STP/UTP (CAT5, CAT6), network cable
Maximum length of the tested cable: 600 m
Quality testing of cable connectors
Cable tracing
Crosstalk protection
Voltage polarity detection
Power supply: 1400 mAh, 3.7 V lithium polymer battery, charging via USB Type-C cable (included)
Low battery indicator
Temperature range: -10... +40 °C
Operating humidity range: 20...70 %
Receiver / remote unit:
Connections: USB 2.0 (type C), RJ45, earphones
Adjustable sensitivity
Non-contact voltage detection (NCV)
Flashing light
Power supply: 1400 mAh, 3.7 V lithium polymer battery
Charging via USB Type-C cable (included)
Temperature range: -10... +40 °C
Operating humidity range: 20...70 %
