Ermenrich NetGeeks NP30 Network Cable Tester
Ermenrich NetGeeks NP30 Network Cable Tester
1563 Kč
1292 Kč bez DPH
Dostupnost: Skladem, dodání 2-4 dní
Part no.: 82539
Kód produktu: 110747612
Výrobce: Ermenrich
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Typ baterie / aku: 9V-Block (6LR61)
Potřebný počet: 2
Včetně baterií: ne
Typ: Kabeltester
Barva: červená / černá
Hmotnost (g): 570
Ermenrich NetGeeks NP30 Network Cable Tester
The Ermenrich NetGeeks NP30 cable tester is designed for checking network cables, finding open circuits and measuring the length of a cable. The device is useful for anyone who installs computer networks and phone lines, maintains, fixes bugs, and can also be used for home use.
The Ermenrich NetGeeks NP30 can be used for testing network, telephone, coaxial and other cable types. It can be used to check open circuits and short circuits as well as swapped and crossed pairs. There is a port flash feature that allows you to find the exact port on the network switch or router to which the destination cable is connected. The length measurement is available for LAN cables from 5 to 350 meters with an accuracy of 5%. It is also possible to calibrate the device to increase the accuracy of the measurements. The cable tester can also measure the distance to open circuits.

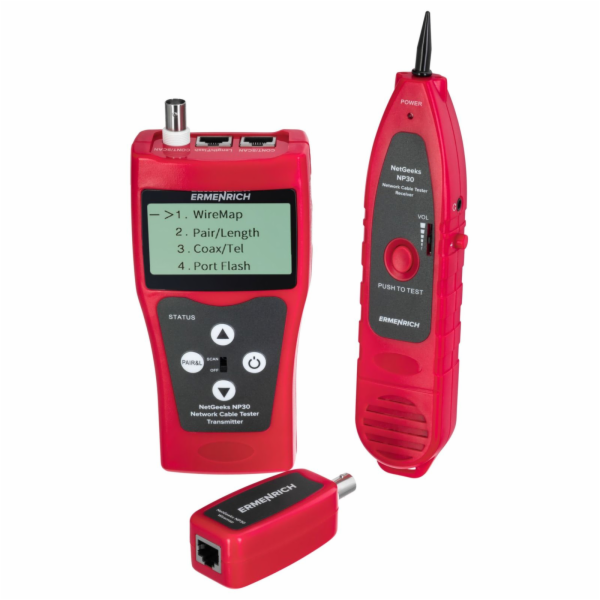

The set contains a transmitter, a receiver, a remote control and other accessories. The transmitter and receiver each require a 9V battery (batteries not included)
Features:
Measurement of cable length by measuring the capacitance of a cable
Can be calibrated to improve measurement accuracy
Cable diagnostics: open circuits, crossed pairs, short circuits
Localisation of an open circuit, measurement of the distance to it
Port flash function to determine the exact port on the network switch or router to which the target cable is connected
Technical data:
Transmitter:

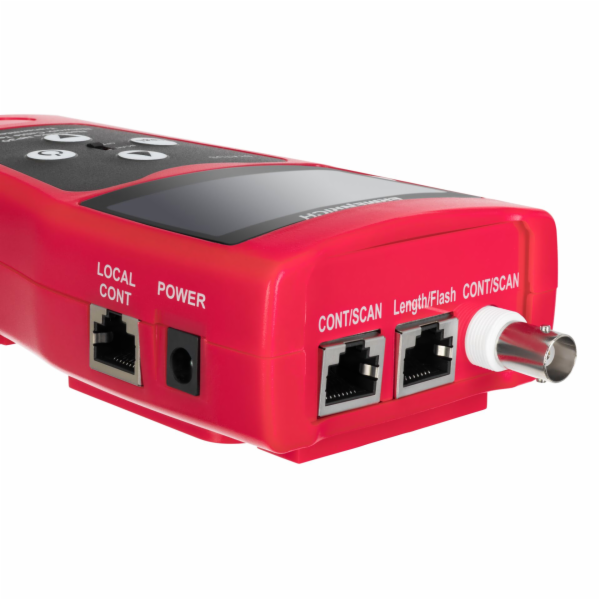

Connections: RJ45 (main), RJ45 (scan), BNC, RJ11 (scan), flash, USB (scan), power supply
Supported cable types: Coaxial cable, conventional cable, STP/UTP (CAT5E, CAT6, CAT6A)
Cable tracing
Voltage polarity detection
Cable length measurement
Units of measurement: m, ft
Measuring range: 5 - 350 m
Error: 5 (±0.5 m)
Calibration+
Main features
ProtectionInput voltage: 48 V, current: 5 mA
Display: LCD
Display resolution: 128 x 128 pixels
Display backlight
Power source: 9 V battery (not included)
Low battery indicator
Automatic switch-off: 15 min, 60 min, 120 min, 30 min
Temperature range: -10... +60 °C
Operating humidity range: 20...70 %
Receiver / remote unit:
Connections: BNC, RJ45, earphone
Adjustable sensitivity
Flashing light
Power source: 9 V battery (not included)
Temperature range: -10... +60 °C
Operating humidity range: 20...70 %
Popis produktu
Způsob provozu: BaterieTyp baterie / aku: 9V-Block (6LR61)
Potřebný počet: 2
Včetně baterií: ne
Typ: Kabeltester
Barva: červená / černá
Hmotnost (g): 570
Ermenrich NetGeeks NP30 Network Cable Tester
The Ermenrich NetGeeks NP30 cable tester is designed for checking network cables, finding open circuits and measuring the length of a cable. The device is useful for anyone who installs computer networks and phone lines, maintains, fixes bugs, and can also be used for home use.
The Ermenrich NetGeeks NP30 can be used for testing network, telephone, coaxial and other cable types. It can be used to check open circuits and short circuits as well as swapped and crossed pairs. There is a port flash feature that allows you to find the exact port on the network switch or router to which the destination cable is connected. The length measurement is available for LAN cables from 5 to 350 meters with an accuracy of 5%. It is also possible to calibrate the device to increase the accuracy of the measurements. The cable tester can also measure the distance to open circuits.
The set contains a transmitter, a receiver, a remote control and other accessories. The transmitter and receiver each require a 9V battery (batteries not included)
Features:
Measurement of cable length by measuring the capacitance of a cable
Can be calibrated to improve measurement accuracy
Cable diagnostics: open circuits, crossed pairs, short circuits
Localisation of an open circuit, measurement of the distance to it
Port flash function to determine the exact port on the network switch or router to which the target cable is connected
Technical data:
Transmitter:
Connections: RJ45 (main), RJ45 (scan), BNC, RJ11 (scan), flash, USB (scan), power supply
Supported cable types: Coaxial cable, conventional cable, STP/UTP (CAT5E, CAT6, CAT6A)
Cable tracing
Voltage polarity detection
Cable length measurement
Units of measurement: m, ft
Measuring range: 5 - 350 m
Error: 5 (±0.5 m)
Calibration+
Main features
ProtectionInput voltage: 48 V, current: 5 mA
Display: LCD
Display resolution: 128 x 128 pixels
Display backlight
Power source: 9 V battery (not included)
Low battery indicator
Automatic switch-off: 15 min, 60 min, 120 min, 30 min
Temperature range: -10... +60 °C
Operating humidity range: 20...70 %
Receiver / remote unit:
Connections: BNC, RJ45, earphone
Adjustable sensitivity
Flashing light
Power source: 9 V battery (not included)
Temperature range: -10... +60 °C
Operating humidity range: 20...70 %
