Elmo L-12G
Elmo L-12G
20238 Kč
16726 Kč bez DPH
Dostupnost: Skladem, dodání 2-4 dní
Part no.: 1380
Kód produktu: 103965133
Výrobce: Elmo
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Optický Zoom (x): 12
Digitální zoom (x): 16
Mikrofón: ano
Zdroj světla: LED
Slot pro paměťovou kartu: SD
Sensor Chip: CMOS
Rozlišení čipu (mil. Pixel): 12,3
Rozlišení: 3840 x 2160 / 3520 x 2640
Max. počet obrázků / sekundu: 60
Video vstup: ano
Video výstup: ano
Audio vstup: ano
Audio výstup: ano
USB: ano
HDMI-Výstup: 1x
HDMI-Vstup: 1x
Max. snímací plocha (mm): 469 x 259 / 430 x 319
Nastavení ostrosti: Autofokus / manuální fokus
Šířka (mm): 349
Výška (mm): 435
Hloubka (mm): 377
Hmotnost (kg): 3

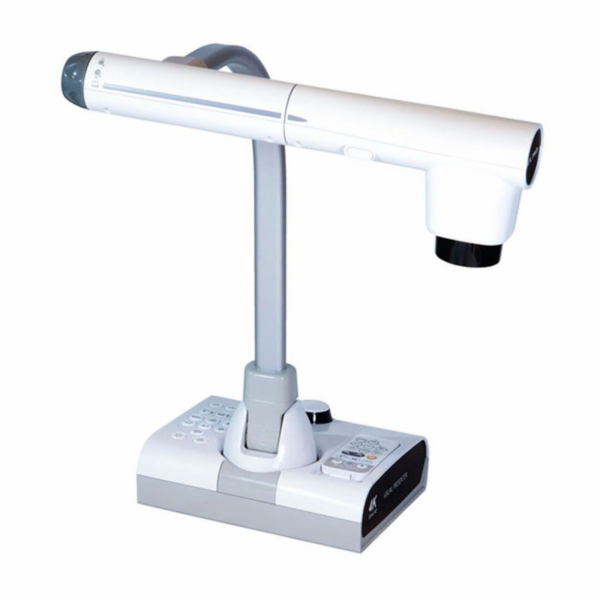

Elmo L-12G Document Camera
The L-12 series from ELMO is one of the best-selling document camera model series worldwide. It helps teachers visually explain learning content and improves student understanding.
The Elmo L-12G is a stationary document camera that can record teaching material without a PC and play it back via a connected projector or through an interactive whiteboard or display system.
The camera can be operated at 60 frames per second in maximum 4K/UHD resolution and likewise the camera image can be transmitted wirelessly in 1080p quality via Miracast using the ELMO Cast Stick (sold separately).
Highlights:
Native 4K output
192 x zoom (12 x optical + 16 x digital)
Adjustable arm & camera head
Loop through - HDMI IN/OUT, RGB IN/OUT
Connection for interactive displays
Integrated microphone for distance learning and video recording
Wireless image transmission via ELMO Cast Stick (sold separately)
Camera:
Image sensor: 1/2.3" CMOS, 12.3M effective pixels
Effective pixels:
8.3M (3840x2160 at 16:9 aspect ratio)
9.3M (3520x2640 at 4:3 image output format)
Resolution:
Max. 4K (3840x2160)
HDMI: 2160p, 1080p, 720p
RGB: 1080p, XGA
USB: 2160p, 2840x1536, 1080p, 1280x960, XGA, 640x480
Miracast (via 'Elmo Cast' stick): 1080p
TV lines (HDMI):
Horizontal > 1600 TV lines (4K@30fps)
Vertical > 1600 TV lines (4K@30fps)
Frame rate: Max. 60fps
Zoom: 12 x optical + 16 x digital = 192 x zoom
Shooting range:
Wide angle: 50 mm ~ ?
Tele: 200 mm ~ ?
Focus setting: Autofocus (button press / zoom sync) or manual
Capture area:
469x259 mm at 16:9 Image output format.
430x319 mm at 4:3 Image output format
A3 format possible
Operation/functions:
Switching function for external devices: Yes (HDMI/VGA)
Illumination: LED
Adjustable camera arm/head: Yes/Yes
Image rotation: 0°/90°/180°/270°, mirroring
Image freeze: Yes
Comparison view: Yes
Recording function: Yes (photo/video)
USB webcam/camera mode: Yes, for picture (UVC) and sound (UAC)
Mouse connection: Yes
Media playback: Photo: JPG, Video: MP4
Software (optionally available at www.elmoeurope.com):
ELMO Interactive Toolbox (EIT)
Image Mate +C for Windows and Mac
Image Mate 4 for Windows
Connectivity:
Inputs/Outputs:
USB (Type A, version 2.0) x1
USB (Type C, version 2.0) x1
HDMI (Type A, Version 1.4) IN/OUT x1
VGA (RGB) IN/OUT x1
AUDIO OUT x1
Mic IN x1
SD Slot
Wireless transmission via ELMO Cast Stick (sold separately):
WiFi IEEE802.11 a/b/g/n 2.4 GHz/5 GHz
Miracast 2.4 GHz/5 GHz (1080P)
Other features:
Built-in microphone: Yes (UAC)
Remote control: Yes
Slot for security lock: Yes
Power supply: DC12V
Power consumption: 21.6 W
Dimensions:
Assembled (W x D x H): 349 mm x 377 mm x 435 mm
Folded (W x D x H): 195 mm x 294 mm x 478 mm
Weight: approx. 3 kg (main unit without power supply unit)
Accessories: USB-C cable, power supply unit, remote control
Optional accessories: microscope adapter, original holder, dust cover, carrying bag, Elmo Cast (Miracast stick)
Popis produktu
Elektr. napájecí zdroj: SíťOptický Zoom (x): 12
Digitální zoom (x): 16
Mikrofón: ano
Zdroj světla: LED
Slot pro paměťovou kartu: SD
Sensor Chip: CMOS
Rozlišení čipu (mil. Pixel): 12,3
Rozlišení: 3840 x 2160 / 3520 x 2640
Max. počet obrázků / sekundu: 60
Video vstup: ano
Video výstup: ano
Audio vstup: ano
Audio výstup: ano
USB: ano
HDMI-Výstup: 1x
HDMI-Vstup: 1x
Max. snímací plocha (mm): 469 x 259 / 430 x 319
Nastavení ostrosti: Autofokus / manuální fokus
Šířka (mm): 349
Výška (mm): 435
Hloubka (mm): 377
Hmotnost (kg): 3
Elmo L-12G Document Camera
The L-12 series from ELMO is one of the best-selling document camera model series worldwide. It helps teachers visually explain learning content and improves student understanding.
The Elmo L-12G is a stationary document camera that can record teaching material without a PC and play it back via a connected projector or through an interactive whiteboard or display system.
The camera can be operated at 60 frames per second in maximum 4K/UHD resolution and likewise the camera image can be transmitted wirelessly in 1080p quality via Miracast using the ELMO Cast Stick (sold separately).
Highlights:
Native 4K output
192 x zoom (12 x optical + 16 x digital)
Adjustable arm & camera head
Loop through - HDMI IN/OUT, RGB IN/OUT
Connection for interactive displays
Integrated microphone for distance learning and video recording
Wireless image transmission via ELMO Cast Stick (sold separately)
Camera:
Image sensor: 1/2.3" CMOS, 12.3M effective pixels
Effective pixels:
8.3M (3840x2160 at 16:9 aspect ratio)
9.3M (3520x2640 at 4:3 image output format)
Resolution:
Max. 4K (3840x2160)
HDMI: 2160p, 1080p, 720p
RGB: 1080p, XGA
USB: 2160p, 2840x1536, 1080p, 1280x960, XGA, 640x480
Miracast (via 'Elmo Cast' stick): 1080p
TV lines (HDMI):
Horizontal > 1600 TV lines (4K@30fps)
Vertical > 1600 TV lines (4K@30fps)
Frame rate: Max. 60fps
Zoom: 12 x optical + 16 x digital = 192 x zoom
Shooting range:
Wide angle: 50 mm ~ ?
Tele: 200 mm ~ ?
Focus setting: Autofocus (button press / zoom sync) or manual
Capture area:
469x259 mm at 16:9 Image output format.
430x319 mm at 4:3 Image output format
A3 format possible
Operation/functions:
Switching function for external devices: Yes (HDMI/VGA)
Illumination: LED
Adjustable camera arm/head: Yes/Yes
Image rotation: 0°/90°/180°/270°, mirroring
Image freeze: Yes
Comparison view: Yes
Recording function: Yes (photo/video)
USB webcam/camera mode: Yes, for picture (UVC) and sound (UAC)
Mouse connection: Yes
Media playback: Photo: JPG, Video: MP4
Software (optionally available at www.elmoeurope.com):
ELMO Interactive Toolbox (EIT)
Image Mate +C for Windows and Mac
Image Mate 4 for Windows
Connectivity:
Inputs/Outputs:
USB (Type A, version 2.0) x1
USB (Type C, version 2.0) x1
HDMI (Type A, Version 1.4) IN/OUT x1
VGA (RGB) IN/OUT x1
AUDIO OUT x1
Mic IN x1
SD Slot
Wireless transmission via ELMO Cast Stick (sold separately):
WiFi IEEE802.11 a/b/g/n 2.4 GHz/5 GHz
Miracast 2.4 GHz/5 GHz (1080P)
Other features:
Built-in microphone: Yes (UAC)
Remote control: Yes
Slot for security lock: Yes
Power supply: DC12V
Power consumption: 21.6 W
Dimensions:
Assembled (W x D x H): 349 mm x 377 mm x 435 mm
Folded (W x D x H): 195 mm x 294 mm x 478 mm
Weight: approx. 3 kg (main unit without power supply unit)
Accessories: USB-C cable, power supply unit, remote control
Optional accessories: microscope adapter, original holder, dust cover, carrying bag, Elmo Cast (Miracast stick)
