Popis produktu

General

Interfaces

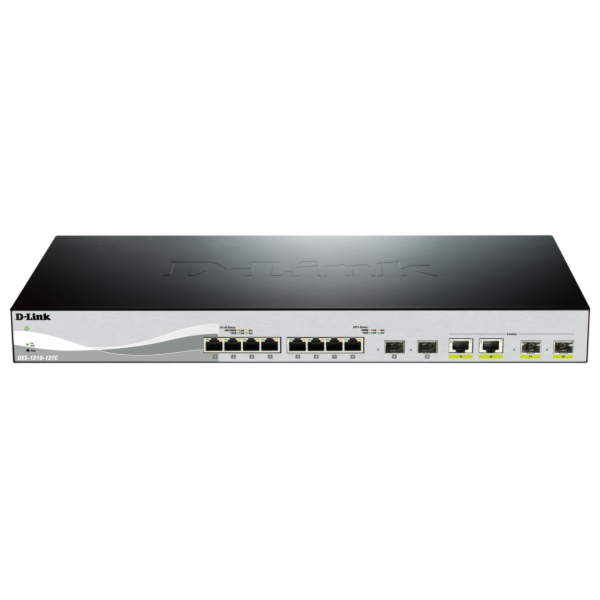

DXS-1210-12TC
8-port 10GBASE-T
2-port SFP+
2-port 10GBASE-T/SFP+ combo design

Port Standard & Functions

IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3az compliance
IEEE 802.3an 10GBASE-T 10GbE over copper
IEEE 802.3ae 10GbE over fiber
IEEE 802.3z 1000BASE-X
Auto MDI/MDIX support for 1000/10GBASE-T

Network Cables for 10GBASE-T

CAT-6 (30 m max)
CAT-6A
CAT-7(100 m max)

Media Interface Exchange

Auto MDI/MDIX adjustment for all twisted-pair ports


Performance

Switching Capacity
DXS-1210-12TC: 240 Gbps

Maximum Packet Forwarding Rate
DXS-1210-12TC: 178.56 Mpps

Transmission Method

Store-and-forward

MAC Address Table

Up to 16 ,000 entries per device

Physical/Environmental

AC Input

100 to 240 VAC

Maximum Power Consumption
DXS-1210-12TC: 90.81 watts

Standby Power Consumption
DXS-1210-12TC: 42.65 watts



Operating Temperature
-5 to 50 ° C (23 to 122 ° F)

Storage Temperature
-40 to 70 ° C (-40 to 158 ° F)

Operating Humidity

0 % to 95 % non-condensing

Storage Humidity

0 % to 95 % non-condensing

Dimensions (L x W x H)

440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)

Weight
DXS-1210-12TC: 3.15 kg

Diagnostic LEDs

Link/Activity/Speed (Per 10GBASE-T port)
Link/Activity/Speed (Per 10G SFP+ port)
Power/Fan (Per device)

Certifications

CE
FCC
C-Ticket
VCCI
BSMI
CCC

Safety

cUL
CB
CE
CCC
BSMI

Software

L2 Features

MAC Address Table
Up to 16K entries
Static MAC Addresses
1K
IGMP Snooping
IGMP v1/v2/v3 Snooping
Supports 384 IGMP groups
Supports at least 128 static multicast addresses
Per VLAN IGMP Snooping
Support host-based fast leave
MLD Snooping
MLD v1/v2 Snooping
Support 384 groups
Support 128 static multicast addresses
Support host-based fast leave
LLDP
LLDP-MED
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
802.3ad Link Aggregation:
Maximum of 8 groups/8 ports per group
Jumbo Frame
Up to 9KB
Loopback Detection
ERPS (Ethernet Ring Protection Switching)1

VLAN

802.1Q VLAN
Port-based VLAN
4K VLAN Groups
Configurable VID
1~4094
Voice VLAN1
Auto Surveillance VLAN1
GVRP1
Asymmetric VLAN

Quality of Service (QoS)

CoS based on
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port
VLAN ID
MAC Address
Ether Type
IP Address
Protocol Type
IPv6 Flow Label
802.1p Priority Queue
8 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Deficit Round Robin (DRR)
Weighted Deficit Round Robin (WDRR)
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 64 Kbps)
iSCSI Awareness1

L3 Features

IP Interface
Supports 16 IPv4/v6 interfaces
ARP
128 Static ARP
Default Route1
IPv6 Neighbor Discovery (ND)
Static Route1
Max. 32 IPv4 entries
Max. 32 IPv6 entries

Access Control List (ACL)

Max. 50 access list
Max. 256 ACL rules
Max. 50 VLAN access map1
ACL based on
802.1p priority
VLAN1
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class
IPv6 flow label

Security

Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding
DHCP Snooping1
IP Source Guard1
Dynamic ARP Inspection1
IPv6 Snooping1
IPv6 Source Guard1
DHCPv6 Guard1
IPv6 ND Inspection1
IPv6 Route Advertisement (RA) Guard1
Traffic Segmentation
SSH1
Support v1/ v2
Support IPv4/ IPv6
SSL
Support v1/v2/v3
Support IPv4/IPv6
ARP Spoofing Prevention1
Max. 127 entries
DoS Attack Prevention
Port Security
Supports up to 6656 MAC addresses per port
Duplicate Address Detection


OAM

Cable Diagnostics

AAA

Web-based Access Control (WAC)1
Support local/RADIUS database
Support Port-based access control
Support Host-based access control
Support Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment
802.1X Authentication1
Support Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment
Supports local/RADIUS database
Supports Port-based access control
Supports Host-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
Support IPv4/IPv6 RADIUS Server1
Support IPv4/IPv6 TACACS+1
Guest VLAN1
Compound Authentication1
Authentication for management access
Authentication Database Failover1
MAC-based Access Control (MAC)1
Support local/RADIUS database
Support Port-based access control
Support Host-based access control
Support Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment

Management

Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
Supports v1/v2c/v3
SNMP Trap
Smart Wizard
LLDP
LLDP-MED
DHCP Relay1
System Log
BootP/DHCP Client
SNTP1
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration1
RMON v1/v21
Trusted Host
Dual Images
Dual Configurations1
DNS Client1
Debug command

Green V3.0 Technology

Power Saving by:
LED Shutoff
System Hibernation
Port Shutoff

MIB/RFC Standards

RFC 783 TFTP
RFC 951 BootP/DHCP Client
RFC 1157 SNMP v1, v2, v3
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1769 S

---
