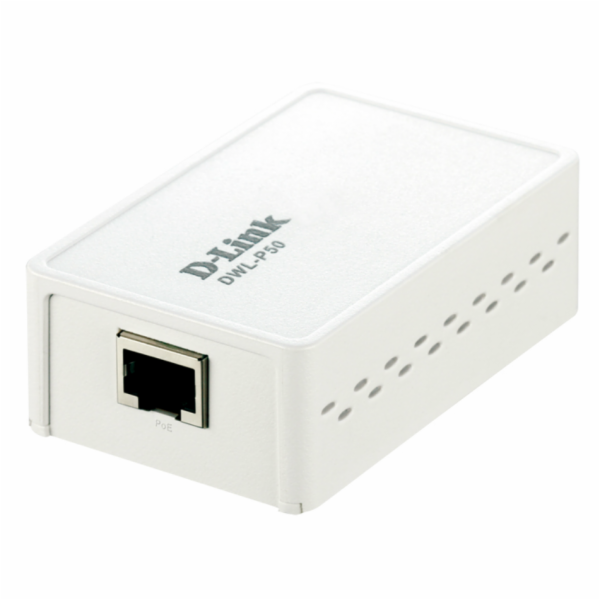

D-Link DWL-P50 PoE Splitter 5V/12VDC Power Output
D-Link DWL-P50 PoE Splitter 5V/12VDC Power Output
894 Kč
739 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: DWL-P50
Kód produktu: 6402759
Výrobce: D-LINK
Záruka: 24 měsíců
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
PŘEHLED
*Provides DC power over existing Category 5 cable to wireless LAN device
*Cuts costs and provides convenience
*Protects wireless LAN device from possible power-surges
*Supports both 5VDC and 12VDC power (selectable through a slide switch)
*Very compact size, lightweight
*Complete plug-and-play installation, no configuration setting or installation tool required
*No software required, O.S.-independent
The DWL-P50 Power over Ethernet adapter is a single-port splitter that provides DC power for a non-PoE-equipped device, such as a surveillance camera or a wireless access point. It is designed to operate with LAN switches and other equipment that support industry-standard 802.3af Power over Ethernet (PoE) to deliver operation power to the networked device, allowing you to install the device at places such as on a rooftop or near a ceiling, where power is not easily accessible. The DWL-P50 supports both 5VDC and 12VDC power and can be flexibly deployed with network devices with different power voltage requirements.
Balení obsahuje
*DWL-P50 Power Over Ethernet Adapter
*Ethernet (CAT5 UTP/Straight Through) Cable
*Female-to-Female Power Connector
TECHNICKÁ SPECIFIKACE
Output Voltage
*Input: 48VDC, 400mA
*Output: 5VDC (11.5 watts) or 12VDC (12 watts)
*(slide switch selectable)
Ethernet Cable
*TIA/EIA 568 Cat. 5
*Connector: RJ-45
Diagnostic LED
*Power
Dimensions
*80.9 x 52 x 28 mm (adapter only)
Weight
*80 grams (adapter only)
Operating Temperature
*0° to 40 °C
Storage Temperature
*-40° to 70 ° C
Operating Humidity
*10% to 80% RH
Storage Humidity
*5% to 90% RH
EMI
*FCC Part 15 Class B
*CE Class B
Safety
*UL
*TUV
