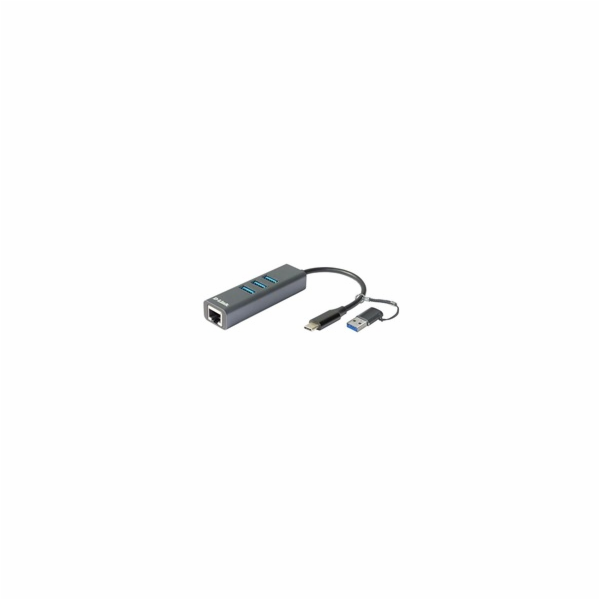

D-Link DUB-2332
USB-C to Gigabit Ethernet Network Adapter with 3xUSB 3.0 and USB-A to USB-C Adapter

Description
The DUB-2332 network adapter provides Gigabit Ethernet connectivity for desktop and portable computers. Just plug the adapter into your computer’s USB Type-C port, and you will be able to connect a switch or a router to your computer using Ethernet cable. If your computer does not have USB Type-C port, you can plug the additional adapter into your computer’s USB 3.0 Type-A port, and then use the USB Type-C interface. With the three USB 3.0 ports, allowing you to connect peripheral devices to your computer, the DUB-2332 can also act as a hub.

Gigabit Ethernet Connectivity
The DUB-2332 network adapter can be plugged into any available USB Type-C port on your computer to enable you to connect to an Ethernet network. The DUB-2332 supports IEEE 802.3ab 1000Base-T standard, providing data rates of up to 1000 Mbps. This adapter provides network connectivity even for the computers, that don’t have RJ-45 port. The DUB-2332 eliminates the need to open your computer to install a network card, and it also lets you keep your laptop’s expansion slot free for other uses.

Add Three USB 3.0 Ports to Your Computer
With the DUB-2332 network adapter, you can conveniently add three USB 3.0 ports and connect peripheral devices to your computer. USB 3.0 technology supports data rates of up to 5 Gbps.

Easy to Install and Use
The DUB-2332 network adapter connects to your computer’s USB Type-C port and is ready to run almost as soon as it’s plugged in. There is no need to change any confguration settings on your computer, just install the device drivers.

Additional USB Type-A to USB Type-C Adapter
The additional adapter allows to use the DUB-2332 network adapter on your computer equipped only with the USB 3.0 Type-A port.

General features

Hardware
Chipset
• RTL8153
Interfaces
• RJ-45 Ethernet port (10/100/1000 Mbps)
• Three USB 3.0 Type-A ports
• USB Type-C connector
Additional adapter:
• USB Type-C port
• USB 3.0 Type-A connector
LEDs
• Speed 1
- Flashing red - data transmission at 10 Mbps or 100 Mbps
• Speed 2
- Flashing green - data transmission at 1000 Mbps

Functionality
Standards and Functions
• USB 3.0
• USB 2.0
• USB 1.1
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• Pause mode
• Wake-on-LAN
Data rate
• Up to 5 Gbps (USB 3.0)
• Up to 1000 Mbps (Ethernet)

System Requirements
Minimum System Requirements
• Available USB Type-C or USB 3.0 Type-A port1
• Windows 7/8/8.1/10 and above, macOS (OS X 10.8 and above)

Physical Parameters
Dimensions (L x W x H)
• 83.7 ? 24 ? 16.5 mm
Weight
• 0.04 kg

Environmental Conditions
Power input
• From computer (USB bus powered)
Temperature
• Operating: 0 to 40 °C
• Storage: -10 to 70 °C
Humidity
• Operating: up to 85% non-condensing
• Storage: up to 85% non-condensing

Package Contents
• DUB-2332 network adapter
• USB-A to USB-C adapter
• Quick Installation Guide
• Warranty documents

---
