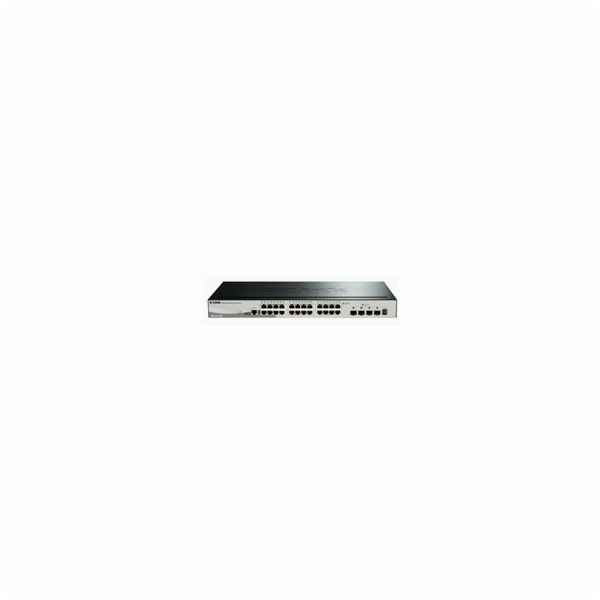

D-Link DGS-1510-28X 28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+ ports (smart fans)
D-Link DGS-1510-28X 28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+ ports (smart fans)
12124 Kč
10020 Kč bez DPH
Dostupnost: Ano, centrál. sklad
Part no.: DGS-1510-28X/E
Kód produktu: 26114221
Výrobce: D-LINK
Váha: 3,509 kg
Záruka: 24 měsíců
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.
http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in
General
Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control for Full-Duplex Mode
Auto-negotiation
Number of Ports
DGS-1510-28X - 24 10/100/1000 Mbps, 4 10G SFP+
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange
Auto or configurable MDI/MDIX
Performance
Switching Capacity
DGS-1510-28X - 128 Gbps
Transmission Method
Store-and-forward
MAC Address Table
16,000 entries per device
MAC Address Update
Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate
DGS-1510-28X - 95.24 Mpps
Packet Buffer Memory
DGS-1510-20/28/28X/28P/28XMP - 1.5 MB per device
Physical & Environment
AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
DGS-1510-28X - 22.3 W
Standby Power Consumption
DGS-1510-28X - 15.2 W
Smart Fan Quantity
DGS-1510-20/28/28X – 1
Acoustics
DGS-1510-28X - 42.7 dB(A)
Heat Dissipation
DGS-1510-28X - 76.043BTU/hr
Operation Temperature
-5 to 50 °C (23 to 122 °F)
Storage Temperature
-20 to 70°C (-4 to 158 °F)
Operation Humidity
0% to 95% non-condensing
Storage Humidity
0% to 95% non-condensing
Dimensions
DGS-1510-28X - 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)
Weight
DGS-1510-28X - 2.00 kg
Diagnostic LEDs
Power/Stacking ID/Fan (per device)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)
Certifications
CE
FCC
C-Tick
VCCI
BSMI
CCC
Safety
cUL
CB
Software Features
Stackability
Virtual Stacking Support
D-Link Single IP Management
Up to 32 devices per virtual stack
Up to 20G stacking bandwidth
Physical Stacking1
Supports Duplex Chain/Ring topology
Up to 40G stacking bandwidth full duplex
Up to 6 units per stack
L2 Features
MAC Address Table: Up to 16,384
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frame up to 9,216 Bytes
IGMP Snooping
IGMP v1/v2 Snooping
IGMP v3 awareness
Supports 512 IGMP groups
Supports 128 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Host-based IGMP Snooping Fast Leave
MLD Snooping
Supports MLD v1/v2 awareness
Supports 512 groups
Supports 128 Static Multicast Addresses
Per VLAN MLD Snooping
Host-based MLD Fast Leave
MLD Snooping Querier
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Loopback Detection v4.072
802.3ad Link Aggregation
Max. 32 groups per device/8 ports per group
Port Mirroring
Support 4 mirroring groups
One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Ethernet Ring Protection Switching (ERPS)
VLAN
802.1Q Tagged VLAN
4K VLAN Groups
Configurable VID: 0~4094
GVRP
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN 2.02
MAC-based VLAN
Protocol-based VLAN
Quality of Service (QoS)
CoS based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TC
Popis produktu
Informace k záruce:Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.
http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in
General
Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control for Full-Duplex Mode
Auto-negotiation
Number of Ports
DGS-1510-28X - 24 10/100/1000 Mbps, 4 10G SFP+
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange
Auto or configurable MDI/MDIX
Performance
Switching Capacity
DGS-1510-28X - 128 Gbps
Transmission Method
Store-and-forward
MAC Address Table
16,000 entries per device
MAC Address Update
Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate
DGS-1510-28X - 95.24 Mpps
Packet Buffer Memory
DGS-1510-20/28/28X/28P/28XMP - 1.5 MB per device
Physical & Environment
AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
DGS-1510-28X - 22.3 W
Standby Power Consumption
DGS-1510-28X - 15.2 W
Smart Fan Quantity
DGS-1510-20/28/28X – 1
Acoustics
DGS-1510-28X - 42.7 dB(A)
Heat Dissipation
DGS-1510-28X - 76.043BTU/hr
Operation Temperature
-5 to 50 °C (23 to 122 °F)
Storage Temperature
-20 to 70°C (-4 to 158 °F)
Operation Humidity
0% to 95% non-condensing
Storage Humidity
0% to 95% non-condensing
Dimensions
DGS-1510-28X - 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)
Weight
DGS-1510-28X - 2.00 kg
Diagnostic LEDs
Power/Stacking ID/Fan (per device)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)
Certifications
CE
FCC
C-Tick
VCCI
BSMI
CCC
Safety
cUL
CB
Software Features
Stackability
Virtual Stacking Support
D-Link Single IP Management
Up to 32 devices per virtual stack
Up to 20G stacking bandwidth
Physical Stacking1
Supports Duplex Chain/Ring topology
Up to 40G stacking bandwidth full duplex
Up to 6 units per stack
L2 Features
MAC Address Table: Up to 16,384
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frame up to 9,216 Bytes
IGMP Snooping
IGMP v1/v2 Snooping
IGMP v3 awareness
Supports 512 IGMP groups
Supports 128 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Host-based IGMP Snooping Fast Leave
MLD Snooping
Supports MLD v1/v2 awareness
Supports 512 groups
Supports 128 Static Multicast Addresses
Per VLAN MLD Snooping
Host-based MLD Fast Leave
MLD Snooping Querier
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Loopback Detection v4.072
802.3ad Link Aggregation
Max. 32 groups per device/8 ports per group
Port Mirroring
Support 4 mirroring groups
One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Ethernet Ring Protection Switching (ERPS)
VLAN
802.1Q Tagged VLAN
4K VLAN Groups
Configurable VID: 0~4094
GVRP
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN 2.02
MAC-based VLAN
Protocol-based VLAN
Quality of Service (QoS)
CoS based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TC
