Popis produktu

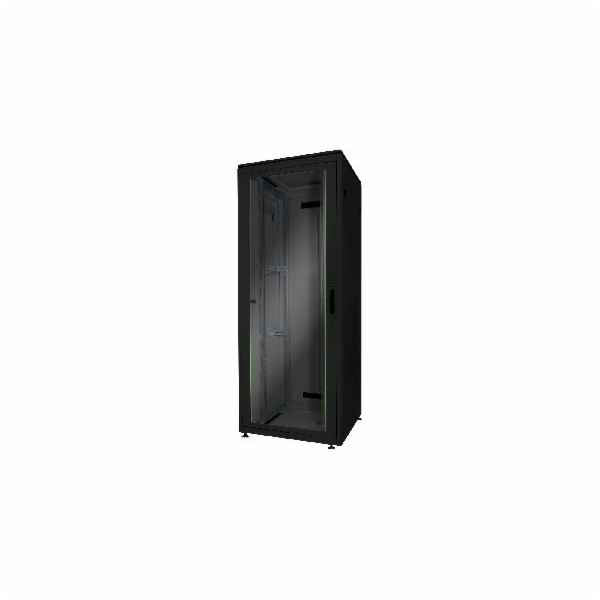

32U network rack, Unique 1609x800x800 mm, color black (RAL 9005)

The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

Special roof construction for fan unit with added lid which can be unmounted
Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
Sliding cable entry with rubber sealing on the base

DESCRIPTION
The network cabinets from the Unique series were developed for especially convenient and flexible network cabling. Inlets in the roof and floor equipped with brushes (starting with 26 rack units and a cabinet width of 800 mm), a sliding inlet in the floor structure with foam rubber seal and brush management panels on the back above and below the rear door (starting with 26 rack units) enable versatile use in a wide range of application scenarios. Vertical cable channels with brackets installed next to the profile rails (starting with a cabinet width of 800 mm) round off the design. An offset, removable cover with ventilation slits ensures enhanced air circulation. This features a special design for easy mounting of a fan module. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth is adjustable and they are connected to additional depth bars in the cabinet. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Side walls and doors that can be locked or removed in a modular design improve accessibility. The door hinges can be switched. Furthermore, the cabinets can be completely dismantled if necessary due to their collapsible design.

TECHNICAL DETAILS
Safety class rating IP20
Complete metal frame front door with safety glass
Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
120° door opening angle on front- and rear doors
Double wing opening rear door
1-point-locking-mechanism on all doors
Side panels are lockable and removable
incl. 4 pieces of leveling feet already pre-configured under the rack
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
Built-in depth support bars for more stability
Vertical cable management ducts in the front
Sliding cable entry with rubber sealing on the base
Cable entry with brush strip at the top and bottom of the cabinet rear side
Top and base with brushed cable entries left and right
Special roof construction for fan unit with added lid which can be unmounted
Several earthing points for rack components
Incl. installation set (screws, cage nuts, washers)
Rack is completely mounted
Equipment mounting depth min.-max.: 563-743 mm
Cabinet type: Network cabinet
Color: black, RAL 9005
Depth: 800 mm
Front door: Glass door, single opening
Load capacity: 800 kg
Rear door: Steel door and cable entry, double opening
Side panels: Both sides
Units: 32
Width: 800 mm
IP protection class: IP20
Mounted: yes

PACKAGE CONTENT
Earthing wire set
Installation set (screws, cage nuts, washers)
Installation Kit for Profile Half Cylinder
2 x keys

---
