Popis produktu

Description

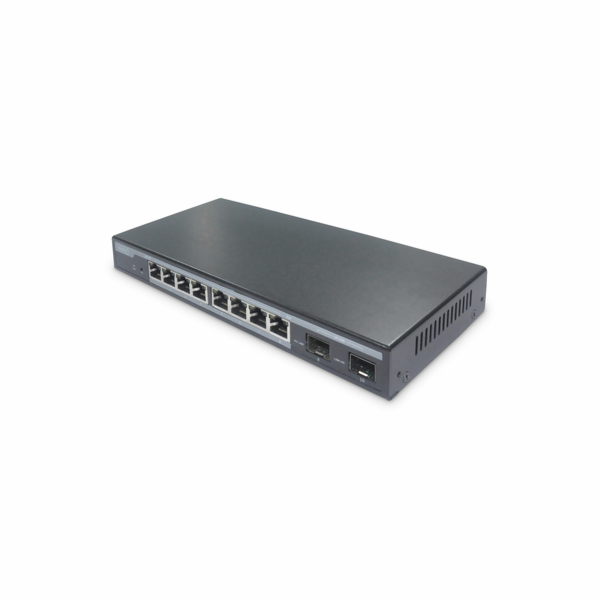

L2 managed 8-Port Gigabit PoE Switch + 2 SFP 10/100/1000Mbps, 86W PoE Power Budget,

Integrated Power over Ethernet (PoE) and network management features for small and medium network environments
8-Port 10/100/1000Base-T with PoE support
2-Port Gigabit SFP Uplink
Meets the network standards IEEE 802.3, IEEE802.3ad, IEEE802.1d, IEEE 802.3u, IEEE 802.3ab, IEEE802.1p, IEEE802.1x, IEEE802.1q, IEEE802.1w, IEEE802.1s, IEEE802.1z, IEEE802.3ah, IEEE802.1ag, IEEE 802.3af and IEEE802.3at
Supports Port Configuration, PoE Port Configuration, Port Mirroring, Bandwidth Control, Broadcast Power Control
Maximum PoE power of 86 watts
The DIGITUS® L2 managed Gigabit PoE Switch with 8 PoE+ ports and 2 Gigabit SFP ports is ideal for use in various network topologies such as SMBs. The extensive L2 configuration options allow you to increase the performance and efficiency of your network. The switch offers the possibility to segment the network via VLAN, the QoS feature ensures smooth data exchange for time-critical applications. The Spanning Tree Protocol or the Port Trunk can be used to create fail-safe connections with other switches. The switch can be managed via the web interface, SNMP, SSH or Telnet.

Technical Details
8-Port 10/100/1000Base-T with PoE support
2-Port Gigabit SFP Uplink
PoE- Current output 44 ~ 57V DC voltage, max. 30 W per port
PoE Power Mode A, PIN 1/2(+), 3/6(-)
VLAN settings Port-based / Tag-based / MAC based / IP-based / Voice VLAN / VLAN mapping / Double VLAN
Trunk settings, Rapid Spanning Tree support (IEEE802.1d STP, IEEE802.1w RSTP, IEEEEEE802.1s MSTP
QoS support
MAC address filtering, TCP/UDP filtering
Tacacs+ and Radius authentication
Supports non-blocking, non-head-of-line forwarding
Supports back-pressure and bandwidth control at each port
Store-and-forward technology for optimized data transfer
Automatic speed and half/full duplex detection/adjustment
Auto MDI / MDI-X function
Backplane with 20Gbps
Supports up to 8K MAC addresses
Maximum output line 86 Watt

Package content
8-Port L2 managed PoE Gigabit Switch
Quick start guide
Power supply
Mounting accessories

---
