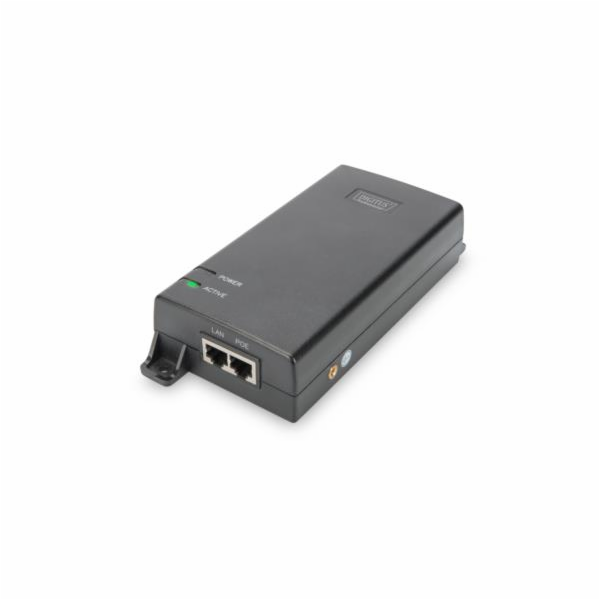

DIGITUS PoE Ultra Injector, 802.3at, 10/100/1000 Mbps Output max. 48V, 60W
DIGITUS PoE Ultra Injector, 802.3at, 10/100/1000 Mbps Output max. 48V, 60W
1231 Kč
1017 Kč bez DPH
Dostupnost: Dodání 3 dny
Part no.: DN-95104
Kód produktu: 39433711
Výrobce: Digitus
Váha: 0,649 kg
Záruka: 23 měsíců
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
The Digitus PoE Injector allows you to minimize cabling during installation of PoE-ready devices such as IP network cameras. Data supply and power supply to the devices is accomplished using a single Ethernet cable. This makes laying a separate power cable unnecessary and allows you to extend your network to places where there are no outlets or power cables. The Injector is fully compliant with the IEEE802.3at Ultra PoE standard and delivers an output power of 60 W.
Reduce cabling for Wireless APs, IP Phone and any PoE-ready device
Complies with the 802.3at Ultra PoE and 802.3af PoE standards
Easily merge of power and data cables into a single cable
Extend your network to places where there are no power supply cables or sockets available
no setup needed
The output is equipped with a current limit, a short-circuit fuse, and automatic terminal device recognition and classification.
Supports all IEEE 802.3at-compliant PoE devices (such as access points, VoIP telephones, and IP cameras)
Transmission range of up to 100 m – with an additional PoE extender, this can be increased to up to 400 m
Own consumption: 1,6W max
Internal consumption (full loaded): 10 W max.
Input: 1x RJ-45 (data)
Output: 1x RJ-45 (power and data)
Data output: 100/100/1000 Mbps Gigabit
Power output: 60 W
Output voltage: 55 V DC
Operating temperature range: -10 °C to +45 °C
Dimensions: 193 mm x 85 mm x 41 mm
Weight: 380 g
Package Content
PoE Injector
QIG (quick installation guide)
Power Supply
Výrobek je dodáván s manuálem pouze v anglickém jazyce.
