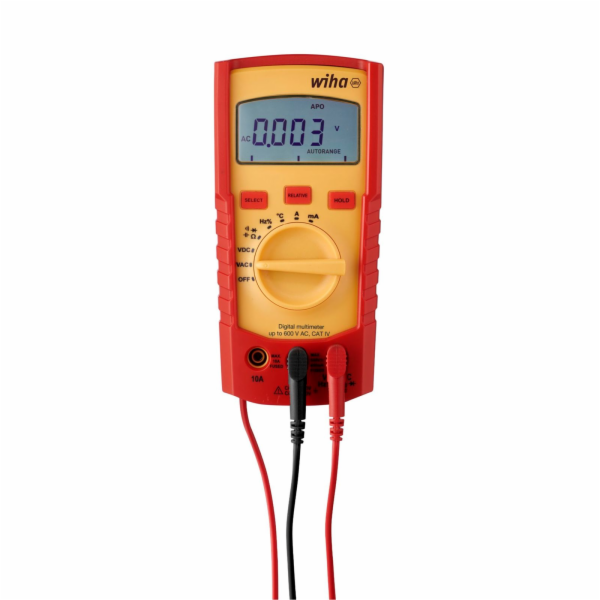

Wiha Digital Multimeter up to 600V
Wiha Digital Multimeter up to 600V
3537 Kč
2923 Kč bez DPH
Dostupnost: Skladem, dodání 2-4 dní
Part no.: SB25541
Kód produktu: 97355068
Výrobce: Wiha
 |
Potřebujete více informací?
484800850 po-pá 8:00-16:30 |
Popis produktu
Typ baterie / aku: AAA (Micro)
Potřebný počet: 2
Displej: LCD
Typ ochrany: IP40
Napětí (V): 0 - 600
Elektrický proud (mA): 10000
Odpor (Ohm): 40000000
Frekvence (Hz): 5000000
Typ: Multimetr
Barva: Červená / žlutá
Materiál: Plast
Délka (mm): 150
Rozměry: 150 x 80 x 45
Wiha digital multimeter up to 600 V AC, CAT IV
The digital multimeter from Wiha is a practical tool for various measurements. You can not only measure voltage, current, resistance, frequency, capacity and temperature, but also test continuity and diodes. The measured values are displayed on a large LCD display with data hold function. So you can read them at any time and also after measuring. An acoustic signal indicates the current flow during the continuity test. The automatic measuring range selection eliminates the need for manual setting of specific measuring ranges. Another advantage is the relative value measurement. Storing previous measured values and comparing them with future ones allows you various control options. The digital multimeter from Wiha offers maximum safety for work in the field of building installation as well as directly on sources of low-voltage installation in accordance with the measurement categories CAT III up to 600 V and CAT IV up to 300 V.
Features:
Current AC: 10 A
Current DC: 10 A
Voltage AC min - max: 0 - 600 V
Voltage DC min - max: 0- 600 V
Resistance: 40 M?
Frequency: 5 MHz
Pollution degree: 2
Measuring range selection: automatic
Data Hold
Relative value measurement
Battery level indicator
Measurement category: CAT IV 300 V / CAT III 600 V
Display: 4,000 digits
Protection class: IP40
Fuse: F 400 mA / 600 V ceramic 6.3 x 32 and F 10 A / 600 V ceramic 6.3 x 32
Temperature measurement: -20 to 500°C
Diode test: Up to 2V
Operating temperature: 0°C - 50 °C
Storage temperature: -10°C - 50 °C
Height above sea level: 2000 m
Dimensions: 150 x 80 x 45 mm
Tested according to EN 61010-1, EN 61010-2-033, EN 61010-031, CAT III 600V / CAT IV 300V
Popis produktu
Způsob provozu: BaterieTyp baterie / aku: AAA (Micro)
Potřebný počet: 2
Displej: LCD
Typ ochrany: IP40
Napětí (V): 0 - 600
Elektrický proud (mA): 10000
Odpor (Ohm): 40000000
Frekvence (Hz): 5000000
Typ: Multimetr
Barva: Červená / žlutá
Materiál: Plast
Délka (mm): 150
Rozměry: 150 x 80 x 45
Wiha digital multimeter up to 600 V AC, CAT IV
The digital multimeter from Wiha is a practical tool for various measurements. You can not only measure voltage, current, resistance, frequency, capacity and temperature, but also test continuity and diodes. The measured values are displayed on a large LCD display with data hold function. So you can read them at any time and also after measuring. An acoustic signal indicates the current flow during the continuity test. The automatic measuring range selection eliminates the need for manual setting of specific measuring ranges. Another advantage is the relative value measurement. Storing previous measured values and comparing them with future ones allows you various control options. The digital multimeter from Wiha offers maximum safety for work in the field of building installation as well as directly on sources of low-voltage installation in accordance with the measurement categories CAT III up to 600 V and CAT IV up to 300 V.
Features:
Current AC: 10 A
Current DC: 10 A
Voltage AC min - max: 0 - 600 V
Voltage DC min - max: 0- 600 V
Resistance: 40 M?
Frequency: 5 MHz
Pollution degree: 2
Measuring range selection: automatic
Data Hold
Relative value measurement
Battery level indicator
Measurement category: CAT IV 300 V / CAT III 600 V
Display: 4,000 digits
Protection class: IP40
Fuse: F 400 mA / 600 V ceramic 6.3 x 32 and F 10 A / 600 V ceramic 6.3 x 32
Temperature measurement: -20 to 500°C
Diode test: Up to 2V
Operating temperature: 0°C - 50 °C
Storage temperature: -10°C - 50 °C
Height above sea level: 2000 m
Dimensions: 150 x 80 x 45 mm
Tested according to EN 61010-1, EN 61010-2-033, EN 61010-031, CAT III 600V / CAT IV 300V
